GASO 1757

Skip to the beginning of the images gallery

GASO 1757

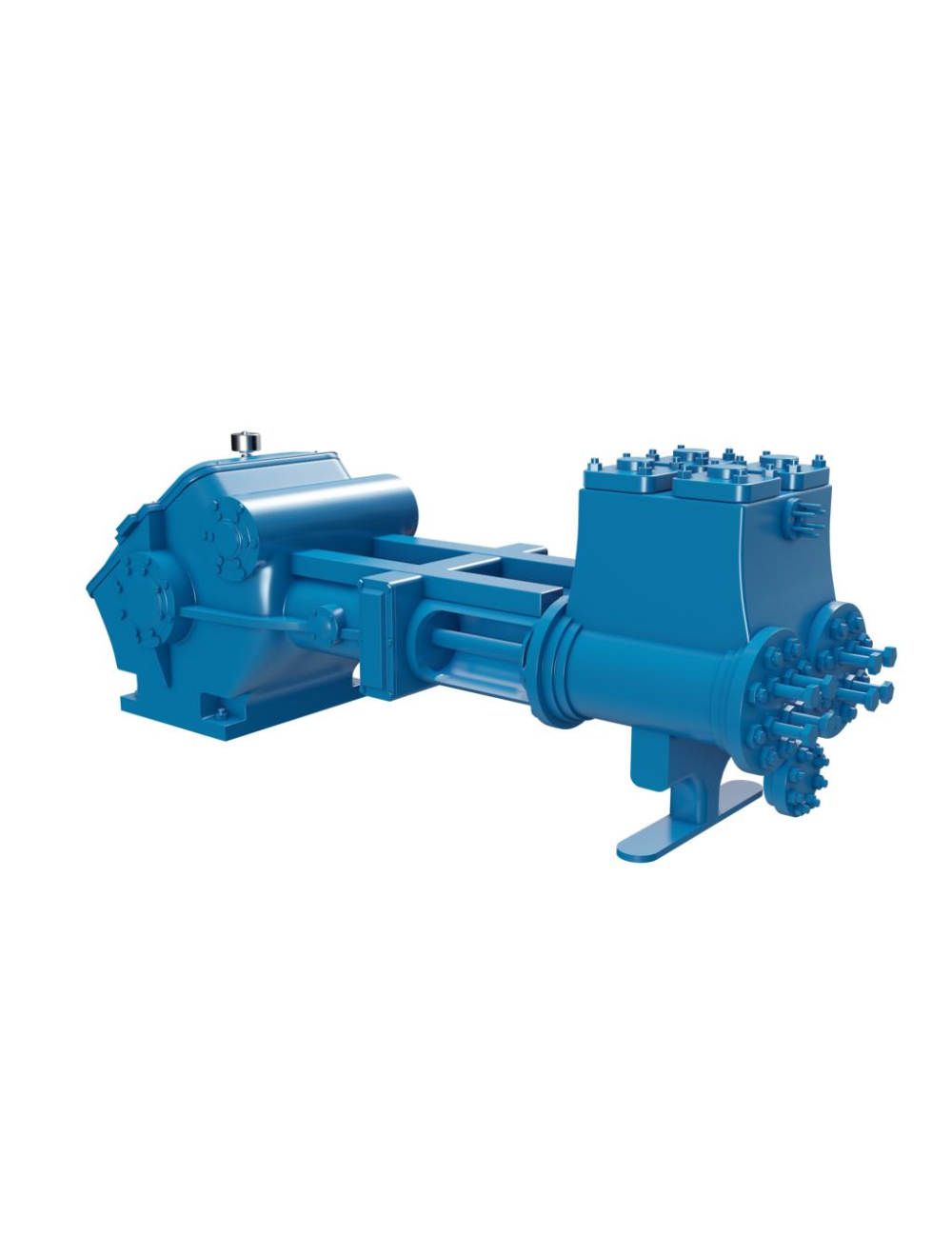

The GASO 1757 is one of our continuous and intermittent-duty reciprocating pumps. The GASO 1757 is offered in piston sizes ranging from 2.500” to 5.500”. Maximum displacement pressure for the GASO 1757 is between 551 psi (3802 kPA) and 1750 psi (12066 kPA) depending on piston size.

The GASO 1757 will pump up to 336.8 GPM, or 11547 BPD at peak performance. The GASO 1757 operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The GASO 1757 works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 85 RPM (Crankshaft speed) 127 (95)
Rated Piston Load: pounds
(kg) 13100 (5942)
Maximum Discharge Pressure
psi (kPa) 1750 (12066)
Oil Capacity
gallons (L)
Crankcase: 15.0 (56.8)

Piston Size Range

2.500"
3.000"
3.500"
4.000"
4.500"
5.000"
5.500"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Steel
Cast Ductile Iron

Specification Datasheet

GASO 1757

PUMP	English Units					25 RPM		40 RPM		55 RPM		70 RPM		85 RPM
	Piston Dia. In.	Piston Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
1757, 1742, 1755	2.5	4.9087	23.928	0.6979	1750	599	17.4	958	27.9	1317	38.4	1675	48.9	2034	59.3
	3	7.0686	36.696	1.0703	1750	918	26.8	1468	42.8	2019	58.9	2569	74.9	3120	91
	3.5	9.6211	51.912	1.5141	1362	1298	37.9	2077	60.6	2856	83.3	3634	106	4413	128.7
	4	12.5664	69.336	2.0223	1042	1734	50.6	2774	80.9	3814	111.2	4854	141.6	5894	171.9
	4.5	15.9043	89.208	2.6019	824	2231	65	3569	104.1	4907	143.1	6245	182.1	7583	221.2
	5	19.6349	111.288	3.2459	667	2783	81.1	4452	129.8	6121	178.5	7791	227.2	9460	275.9
	5.5	23.7583	135.84	3.962	551	3396	99.1	5434	158.5	7472	217.9	9509	277.3	11547	336.8
	Brake Horsepower Required					37		60		82		105		127

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
GASO 1757 2.500	Max GPM 59.30 Max BPD 2033.00 Max PSI 1750.00 Out of stock 0 See more GASO 1757 2.500	59.30	2033.00	1750.00
GASO 1757 3.000	Max GPM 91.00 Max BPD 3120.00 Max PSI 1750.00 Out of stock 0 See more GASO 1757 3.000	91.00	3120.00	1750.00
GASO 1757 3.500	Max GPM 128.70 Max BPD 4412.00 Max PSI 1362.00 Out of stock 0 See more GASO 1757 3.500	128.70	4412.00	1362.00
GASO 1757 4.000	Max GPM 171.90 Max BPD 5893.00 Max PSI 1042.00 Out of stock 0 See more GASO 1757 4.000	171.90	5893.00	1042.00
GASO 1757 4.500	Max GPM 221.20 Max BPD 7584.00 Max PSI 824.00 Out of stock 0 See more GASO 1757 4.500	221.20	7584.00	824.00
GASO 1757 5.000	Max GPM 275.90 Max BPD 9459.00 Max PSI 667.00 Out of stock 0 See more GASO 1757 5.000	275.90	9459.00	667.00
GASO 1757 5.500	Max GPM 336.80 Max BPD 11547.00 Max PSI 551.00 Out of stock 0 See more GASO 1757 5.500	336.80	11547.00	551.00
