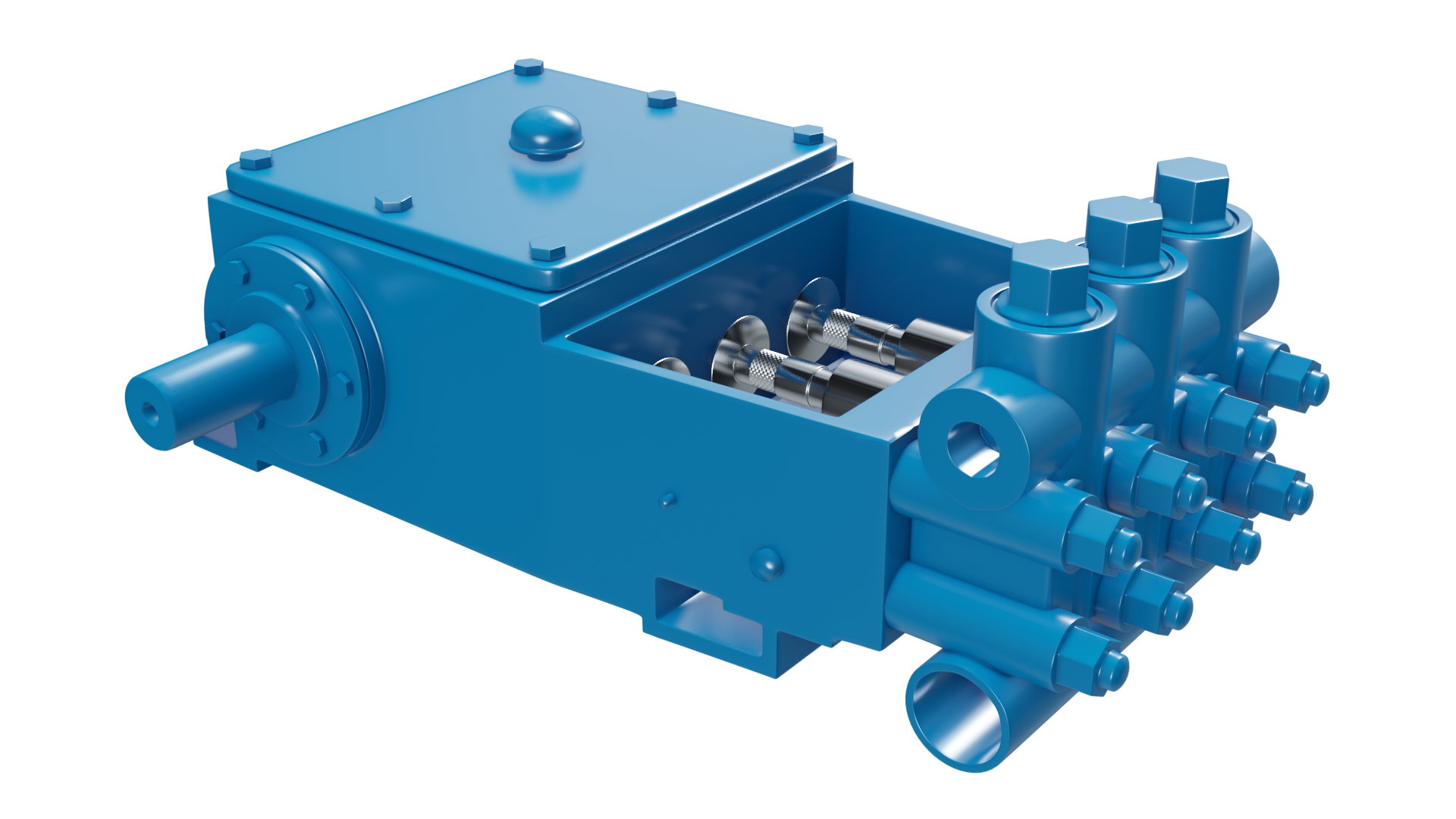

NOV 30T-2 (Wheatley J-30)
NOV 30T-2
The NOV 30T-2 product line is one of our continuous and intermittent-duty reciprocating pump lines. With plunger sizes ranging from 0.938” to 2.250”. The maximum displacement pressure for the NOV 30T-2 is between 897 psi (6185 kPA) and 5000 psi (34474 kPA) depending on plunger size.
The NOV 30T-2 products will pump up to 51.65 GPM, or 1,771 BPD at peak performance. The NOV 30T-2 operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 30T-2 works in a variety of fluids and offers a variety of fluid end metallurgies.
Recommended Application Types
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
PUMP | English Units | 200 RPM | 300 RPM | 350 RPM | 400 RPM | 450 RPM | 500 RPM | ||||||||||
Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
30T-2L | 2.250 | 3.9761 | 3.5410 | 0.1033 | 897 | 709 | 20.66 | 1063 | 30.99 | 1240 | 38.16 | 1417 | 41.32 | 1594 | 46.49 | 1771 | 51.65 |
2.000 | 3.1416 | 2.7980 | 0.0816 | 1135 | 560 | 16.32 | 840 | 24.48 | 980 | 28.56 | 1120 | 32.64 | 1260 | 36.72 | 1399 | 40.80 | |
1.750 | 2.4053 | 2.1430 | 0.0625 | 1482 | 429 | 12.5 | 643 | 18.75 | 751 | 21.88 | 858 | 25 | 965 | 28.13 | 1072 | 31.25 | |
1.500 | 1.7671 | 1.5737 | 0.0459 | 2000 | 315 | 9.18 | 473 | 13.77 | 551 | 16.07 | 630 | 18.36 | 709 | 20.66 | 787 | 22.95 | |
30T-2H | 1.500 | 1.7671 | 1.5737 | 0.0459 | 2000 | 315 | 9.18 | 473 | 13.77 | 551 | 16.07 | 630 | 18.36 | 709 | 20.66 | 787 | 22.95 |
1.375 | 1.4849 | 1.3234 | 0.0386 | 2401 | 265 | 7.72 | 398 | 11.58 | 464 | 13.51 | 530 | 15.44 | 596 | 17.37 | 662 | 19.30 | |
1.250 | 1.2272 | 1.0937 | 0.0319 | 2905 | 219 | 6.38 | 329 | 9.57 | 383 | 11.17 | 438 | 12.76 | 493 | 14.36 | 547 | 15.95 | |
1.125 | 0.9940 | 0.8846 | 0.0258 | 3586 | 177 | 5.16 | 266 | 7.74 | 310 | 9.03 | 354 | 10.32 | 399 | 11.61 | 443 | 12.90 | |
1.000 | 0.7854 | 0.6994 | 0.0204 | 4539 | 140 | 4.08 | 210 | 6.12 | 245 | 7.14 | 280 | 8.16 | 315 | 9.18 | 350 | 10.20 | |
0.938 | 0.6910 | 0.6137 | 0.0179 | 5000 | 123 | 3.58 | 185 | 5.37 | 215 | 6.27 | 246 | 7.16 | 277 | 8.06 | 307 | 8.95 | |
Brake Horsepower Required | 12.0 | 18.0 | 21.0 | 24 | 27 | 30 |
