GASO 2600
GASO 2600

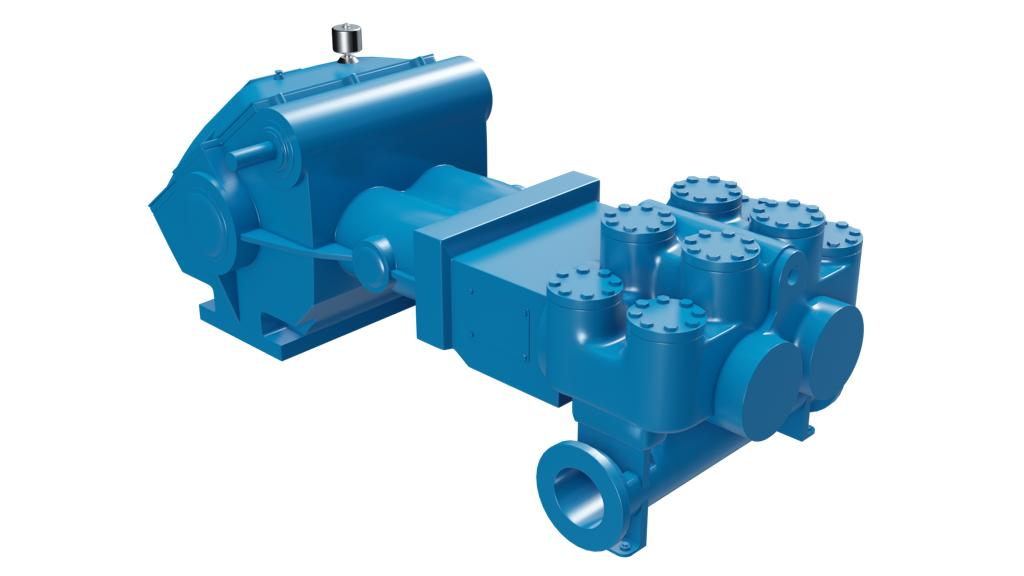

The GASO 2600 product line is one of our continuous and intermittent-duty reciprocating pump lines. With plunger sizes ranging from 4.000” to 7.250”. The maximum displacement pressure for the GASO 2600 is between 1760 psi (12134 kPA) and 535 psi (3691 kPA) depending on plunger size.
The GASO 2600 products will pump up to 702.3 GPM, or 24,079 BPD at peak performance. The GASO 2600 operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The GASO 2600 works in a variety of fluids and offers a variety of fluid end metallurgies.
Recommended Application Types
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
| PUMP | English Units | 25 RPM | 40 RPM | 55 RPM | 70 RPM | 85 RPM | |||||||||
| Piston Dia. In. | Piston Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 2652, 2651 | 4.000(2651) | 12.5664 | 78.384 | 2.2862 | 1760 | 1960 | 57.2 | 3136 | 91.4 | 4312 | 125.7 | 5487 | 160 | 6663 | 194.3 |
| 4.000(2652) | 12.5664 | 78.384 | 2.2862 | 1125 | 1960 | 57.2 | 3136 | 91.4 | 4312 | 125.7 | 5487 | 160 | 6663 | 194.3 | |
| 4.500(2651) | 15.9043 | 102.096 | 2.9778 | 1390 | 2553 | 74.4 | 4084 | 119.1 | 5616 | 163.8 | 7147 | 208.4 | 8679 | 253.1 | |
| 4.500(2652) | 15.9043 | 102.096 | 2.9778 | 1125 | 2553 | 74.4 | 4084 | 119.1 | 5616 | 163.8 | 7147 | 208.4 | 8679 | 253.1 | |
| 5.000(2651) | 19.6349 | 128.712 | 3.7541 | 1126 | 3218 | 93.9 | 5149 | 150.2 | 7080 | 206.5 | 9010 | 262.8 | 10941 | 319.1 | |
| 5.000(2652) | 19.6349 | 128.712 | 3.7541 | 1125 | 3218 | 93.9 | 5149 | 150.2 | 7080 | 206.5 | 9010 | 262.8 | 10941 | 319.1 | |
| 5.500(2651) | 23.7583 | 158.064 | 4.6102 | 930 | 3952 | 115.3 | 6323 | 184.4 | 8694 | 253.6 | 11065 | 322.7 | 13436 | 391.9 | |
| 5.500(2652) | 23.7583 | 158.064 | 4.6102 | 930 | 3952 | 115.3 | 6323 | 184.4 | 8694 | 253.6 | 11065 | 322.7 | 13436 | 391.9 | |
| 6.000(2652) | 28.2743 | 190.296 | 5.5503 | 782 | 4758 | 138.8 | 7612 | 222 | 10467 | 305.3 | 13321 | 388.5 | 16176 | 471.8 | |
| 6.500(2652) | 33.183 | 225.12 | 6.566 | 666 | 5628 | 164.2 | 9005 | 262.6 | 12382 | 361.1 | 15759 | 459.6 | 19136 | 558.1 | |
| 7.000(2652) | 38.4845 | 262.968 | 7.6699 | 574 | 6575 | 191.7 | 10519 | 306.8 | 14464 | 421.8 | 18408 | 536.9 | 22353 | 651.9 | |
| 7.250(2652) | 41.2825 | 283.272 | 8.2621 | 535 | 7082 | 206.6 | 11331 | 330.5 | 15580 | 454.4 | 19830 | 578.3 | 24079 | 702.3 | |
| Brake Horsepower Required | 76 | 121 | 167 | 213 | 258 | ||||||||||
