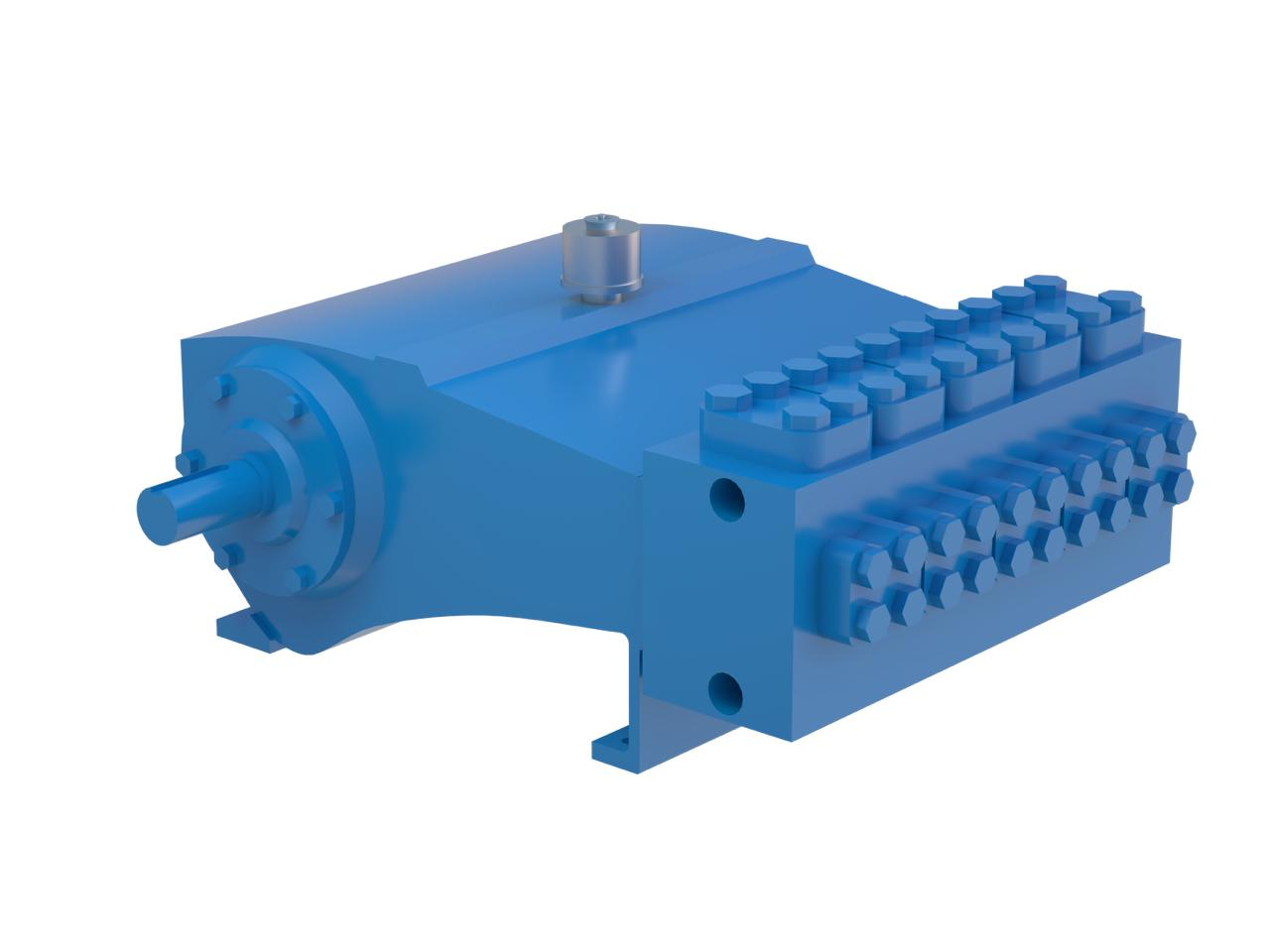

NOV 103Q-3 (Wheatley Q3115)
NOV 103Q-3 (Wheatley Q3115)
The NOV 103Q-3 (Wheatley Q3115) product line is one of our continuous and intermittent-duty reciprocating pump lines. With plunger sizes ranging from 0.750” to 3.000”. The maximum displacement pressure for the NOV 103Q-3 (Wheatley Q3115) is between 673 psi (4643 kPA) and 10,000 psi (68948 kPA) depending on plunger size.
The NOV 103Q-3 (Wheatley Q3115) products will pump up to 232.9 GPM, or 7,987 BPD at peak performance. The NOV 103Q-3 (Wheatley Q3115) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 103Q-3 (Wheatley Q3115) works in a variety of fluids and offers a variety of fluid end metallurgies.
Recommended Application Types
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
| PUMP | English Units | 50 RPM | 150 RPM | 250 RPM | 300 RPM | 350 RPM | 435 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 103Q-3L (Q3115AL) | 3 | 7.0686 | 18.3599 | 0.5355 | 673 | 918 | 26.8 | 2754 | 80.3 | 4590 | 133.9 | 5508 | 160.6 | 6426 | 187.4 | 7987 | 232.9 |
| 2.875 | 6.4918 | 16.8618 | 0.4918 | 733 | 844 | 24.6 | 2530 | 73.8 | 4216 | 123 | 5059 | 147.5 | 5902 | 172.1 | 7335 | 213.9 | |
| 2.75 | 5.9396 | 15.4274 | 0.45 | 801 | 772 | 22.5 | 2315 | 67.5 | 3857 | 112.5 | 4629 | 135 | 5400 | 157.5 | 6711 | 195.7 | |
| 2.625 | 5.4119 | 14.0568 | 0.41 | 880 | 703 | 20.5 | 2109 | 61.5 | 3515 | 102.5 | 4218 | 123 | 4920 | 143.5 | 6115 | 178.3 | |
| 2.5 | 4.9087 | 12.75 | 0.3719 | 970 | 638 | 18.6 | 1913 | 55.8 | 3188 | 93 | 3825 | 111.6 | 4463 | 130.2 | 5547 | 161.8 | |
| 103Q-3M (Q3115AM) | 2.5 | 4.9087 | 12.75 | 0.3719 | 970 | 638 | 18.6 | 1913 | 55.8 | 3188 | 93 | 3825 | 111.6 | 4463 | 130.2 | 5547 | 161.8 |
| 2.375 | 4.4301 | 11.5068 | 0.3356 | 1074 | 576 | 16.8 | 1727 | 50.3 | 2877 | 83.9 | 3453 | 100.7 | 4028 | 117.5 | 5006 | 146 | |
| 2.25 | 3.9761 | 10.3275 | 0.3012 | 1197 | 517 | 15.1 | 1550 | 45.2 | 2582 | 75.3 | 3099 | 90.4 | 3615 | 105.4 | 4493 | 131 | |
| 2.125 | 3.5466 | 9.2118 | 0.2687 | 1342 | 461 | 13.4 | 1382 | 40.3 | 2303 | 67.2 | 2764 | 80.6 | 3225 | 94 | 4008 | 116.9 | |
| 2 | 3.1416 | 8.16 | 0.238 | 1515 | 408 | 11.9 | 1224 | 35.7 | 2040 | 59.5 | 2448 | 71.4 | 2856 | 83.3 | 3550 | 103.5 | |
| 1.875 | 2.7612 | 7.1718 | 0.2092 | 1724 | 359 | 10.5 | 1076 | 31.4 | 1793 | 52.3 | 2152 | 62.8 | 2511 | 73.2 | 3120 | 91 | |
| 1.75 | 2.4053 | 6.2475 | 0.1822 | 1979 | 313 | 9.1 | 938 | 27.3 | 1562 | 45.6 | 1875 | 54.7 | 2187 | 63.8 | 2718 | 79.3 | |
| 1.625 | 2.0739 | 5.3869 | 0.1571 | 2295 | 270 | 7.9 | 809 | 23.6 | 1347 | 39.3 | 1617 | 47.1 | 1886 | 55 | 2344 | 68.3 | |
| 103Q-3MS (Q3115MS) | 1.5 | 1.7671 | 4.59 | 0.1339 | 2694 | 230 | 6.7 | 689 | 20.1 | 1148 | 33.5 | 1377 | 40.2 | 1607 | 46.9 | 1997 | 58.2 |
| 1.375 | 1.4849 | 3.8569 | 0.1125 | 3206 | 193 | 5.6 | 579 | 16.9 | 965 | 28.1 | 1158 | 33.7 | 1350 | 39.4 | 1678 | 48.9 | |
| 1.25 | 1.2272 | 3.1875 | 0.093 | 3879 | 160 | 4.6 | 479 | 13.9 | 797 | 23.2 | 957 | 27.9 | 1116 | 32.5 | 1387 | 40.4 | |
| 1.125 | 0.994 | 2.5819 | 0.0753 | 4789 | 130 | 3.8 | 388 | 11.3 | 646 | 18.8 | 775 | 22.6 | 904 | 26.4 | 1124 | 32.8 | |
| 103Q-3H (Q3115H) | 1 | 0.7854 | 2.04 | 0.0595 | 6061 | 102 | 3 | 306 | 8.9 | 510 | 14.9 | 612 | 17.8 | 714 | 20.8 | 888 | 25.9 |
| 0.875 | 0.6013 | 1.5619 | 0.0456 | 7916 | 79 | 2.3 | 235 | 6.8 | 391 | 11.4 | 469 | 13.7 | 547 | 15.9 | 680 | 19.8 | |
| 0.75 | 0.4418 | 1.1475 | 0.0335 | 10000 | 58 | 1.7 | 173 | 5 | 287 | 8.4 | 345 | 10 | 402 | 11.7 | 500 | 14.6 | |
| Brake Horsepower Required | 12 | 35 | 59 | 70 | 82 | 102 | |||||||||||
