NOV 31Q-2L (Wheatley 5P200A)
NOV 31Q-2L (Wheatley 5P200A)

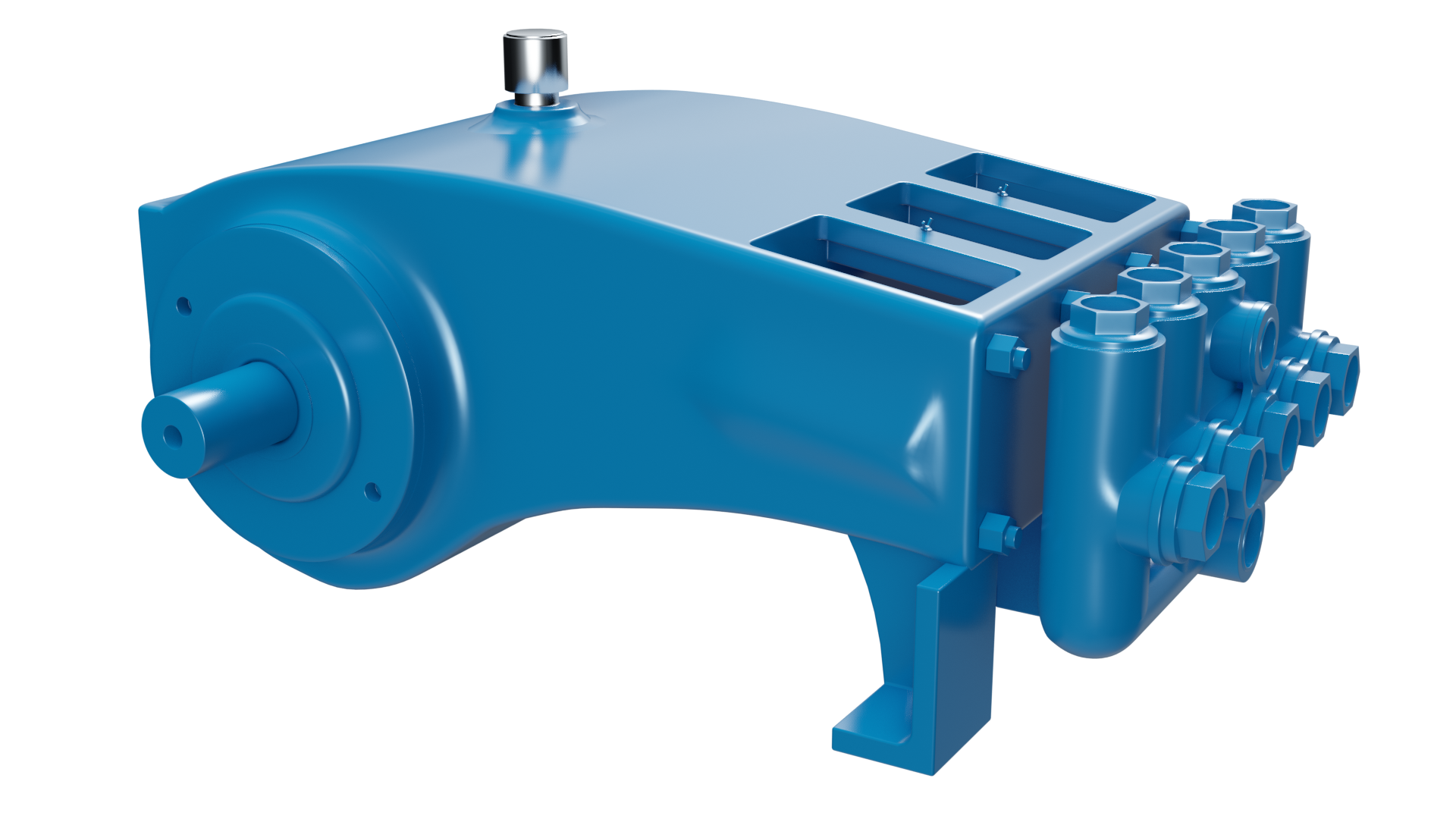

The NOV 31Q-2L (Wheatley 5P200A) product line is one of our continuous and intermittent-duty reciprocating pump lines. With plunger sizes ranging from 1.125” to 1.750”. The maximum displacement pressure for the NOV 31Q-2L (Wheatley 5P200A) is between 844 psi (5819 kPA) and 2042 psi (14081 kPA) depending on plunger size.
The NOV 31Q-2L (Wheatley 5P200A) products will pump up to 57.4 GPM, or 1,968 BPD at peak performance. The NOV 31Q-2L (Wheatley 5P200A) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 31Q-2L (Wheatley 5P200A) works in a variety of fluids and offers a variety of fluid end metallurgies.
Recommended Application Types
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
PUMP | English Units | 50RPM | 150 RPM | 250 RPM | 350 RPM | 400 RPM | 490 RPM | |||||||||
Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM |
31Q-2L (5P200A) | 1.75 | 2.4053 | 4.0162 | 0.1171 | 844 | 201 | 5.86 | 603 | 17.6 | 1005 | 29.3 | 1406 | 41 | 1607 | 46.9 | 1968 |
1.625 | 2.0739 | 3.463 | 0.101 | 979 | 174 | 5.05 | 520 | 15.2 | 866 | 25.3 | 1213 | 35.4 | 1386 | 40.4 | 1697 | |
1.5 | 1.7671 | 2.9507 | 0.0861 | 1149 | 148 | 4.3 | 443 | 12.9 | 738 | 21.5 | 1033 | 30.1 | 1181 | 34.4 | 1446 | |
1.375 | 1.4849 | 2.4794 | 0.0723 | 1367 | 124 | 3.62 | 372 | 10.8 | 620 | 18.1 | 868 | 25.3 | 992 | 28.9 | 1215 | |
1.25 | 1.2272 | 2.0491 | 0.0598 | 1654 | 103 | 2.99 | 308 | 8.96 | 513 | 14.9 | 718 | 20.9 | 820 | 23.9 | 1005 | |
1.125 | 0.994 | 1.6598 | 0.0484 | 2042 | 83 | 2.42 | 249 | 7.26 | 415 | 12.1 | 581 | 16.9 | 664 | 19.4 | 814 | |
Brake Horsepower Required | 4 | 10 | 17 | 22 | 26 | 31 |
