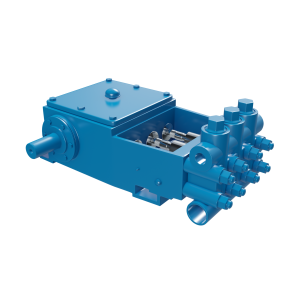

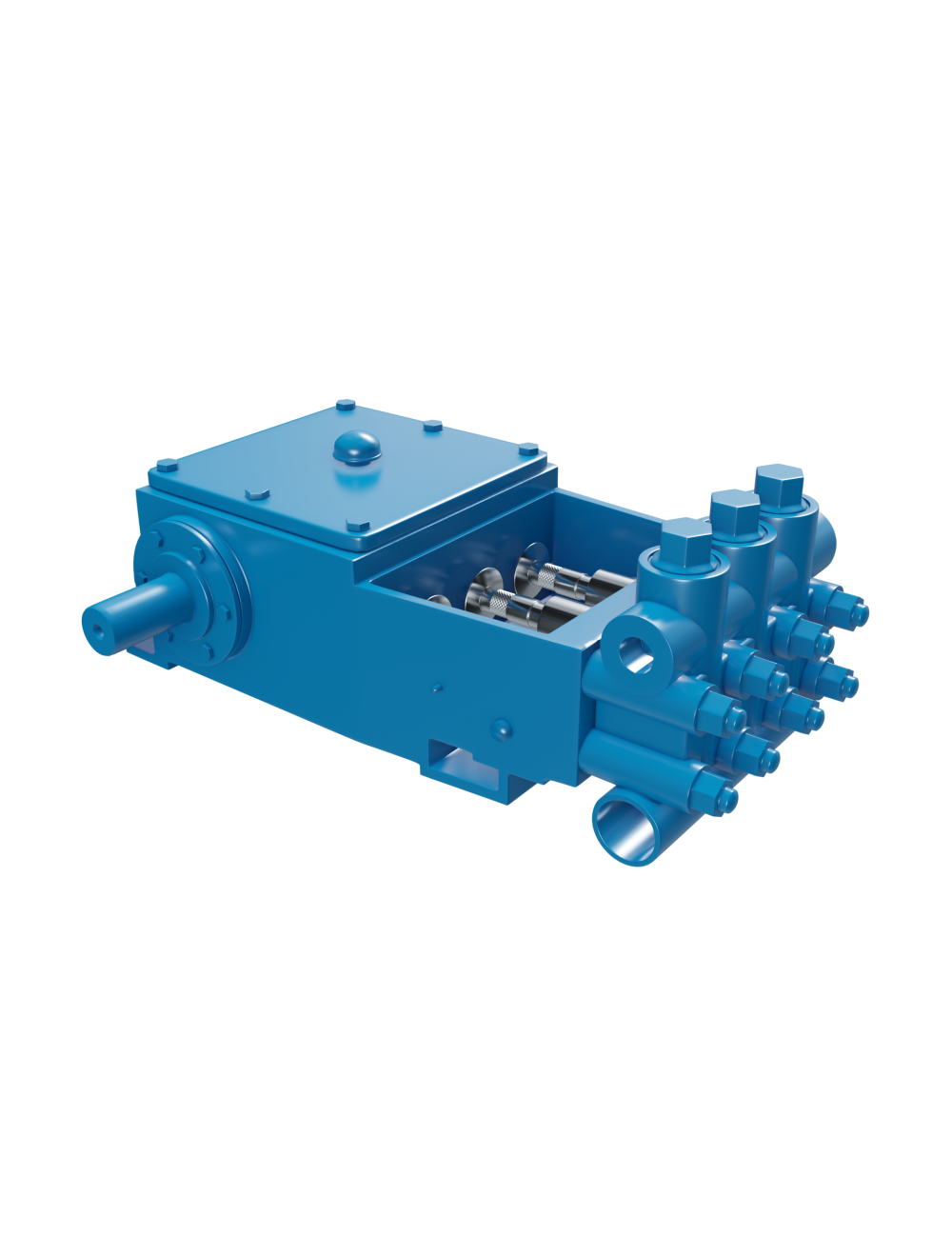

NOV 30T-2H (National J-30-H)

The NOV 30T-2H (National J-30-H) is one of our continuous and intermittent-duty reciprocating pumps. The 30T-2H (National J-30-H) is offered in plunger sizes ranging from 0.938” to 1.500” providing a maximum displacement pressure of 2000 psi (13790 kPA).

The 30T-2H (National J-30-H) will pump up to 51.65 GPM, or 1771 BPD at peak performance. The NOV 30T-2H (National J-30-H) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 30T-2H (National J-30-H) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 500 RPM (Crankshaft speed) 30 (22.4)
Rated Plunger Load: pounds
(kg) 3565 (1617)
Maximum Discharge Pressure
psi (kPa) "L" Model: 2000 (13,788)
Oil Capacity
gallons (L) Crankcase: 1.2 (4.5)

Plunger Size Range

1.500"
1.375"
1.250"
1.125"
1.000"
0.938"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Specification Datasheet

NOV 30T-2L (Wheatley J-30-L)

PUMP	English Units					200 RPM		300 RPM		350 RPM		400 RPM		450 RPM		500 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
30T-2L	2.250	3.9761	3.5410	0.1033	897	709	20.66	1063	30.99	1240	38.16	1417	41.32	1594	46.49	1771	51.65
	2.000	3.1416	2.7980	0.0816	1135	560	16.32	840	24.48	980	28.56	1120	32.64	1260	36.72	1399	40.80
	1.750	2.4053	2.1430	0.0625	1482	429	12.5	643	18.75	751	21.88	858	25	965	28.13	1072	31.25
	1.500	1.7671	1.5737	0.0459	2000	315	9.18	473	13.77	551	16.07	630	18.36	709	20.66	787	22.95
30T-2H	1.500	1.7671	1.5737	0.0459	2000	315	9.18	473	13.77	551	16.07	630	18.36	709	20.66	787	22.95
	1.375	1.4849	1.3234	0.0386	2401	265	7.72	398	11.58	464	13.51	530	15.44	596	17.37	662	19.30
	1.250	1.2272	1.0937	0.0319	2905	219	6.38	329	9.57	383	11.17	438	12.76	493	14.36	547	15.95
	1.125	0.9940	0.8846	0.0258	3586	177	5.16	266	7.74	310	9.03	354	10.32	399	11.61	443	12.90
	1.000	0.7854	0.6994	0.0204	4539	140	4.08	210	6.12	245	7.14	280	8.16	315	9.18	350	10.20
	0.938	0.6910	0.6137	0.0179	5000	123	3.58	185	5.37	215	6.27	246	7.16	277	8.06	307	8.95
	Brake Horsepower Required					12.0		18.0		21.0		24		27		30

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 30T-2H (National J-30-H) 0.938	Max GPM 8.95 Max BPD 306.00 Max PSI 5000.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 0.938	8.95	306.00	5000.00
NOV 30T-2H (National J-30-H) 1.000	Max GPM 10.20 Max BPD 349.00 Max PSI 4539.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 1.000	10.20	349.00	4539.00
NOV 30T-2H (National J-30-H) 1.125	Max GPM 12.90 Max BPD 442.00 Max PSI 3586.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 1.125	12.90	442.00	3586.00
NOV 30T-2H (National J-30-H) 1.250	Max GPM 15.95 Max BPD 546.00 Max PSI 2905.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 1.250	15.95	546.00	2905.00
NOV 30T-2H (National J-30-H) 1.375	Max GPM 19.30 Max BPD 661.00 Max PSI 2401.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 1.375	19.30	661.00	2401.00
NOV 30T-2H (National J-30-H) 1.500	Max GPM 22.95 Max BPD 786.00 Max PSI 2000.00 Out of stock 0 See more NOV 30T-2H (National J-30-H) 1.500	22.95	786.00	2000.00
