NOV 543Q-7M (Wheatley HP600AM)

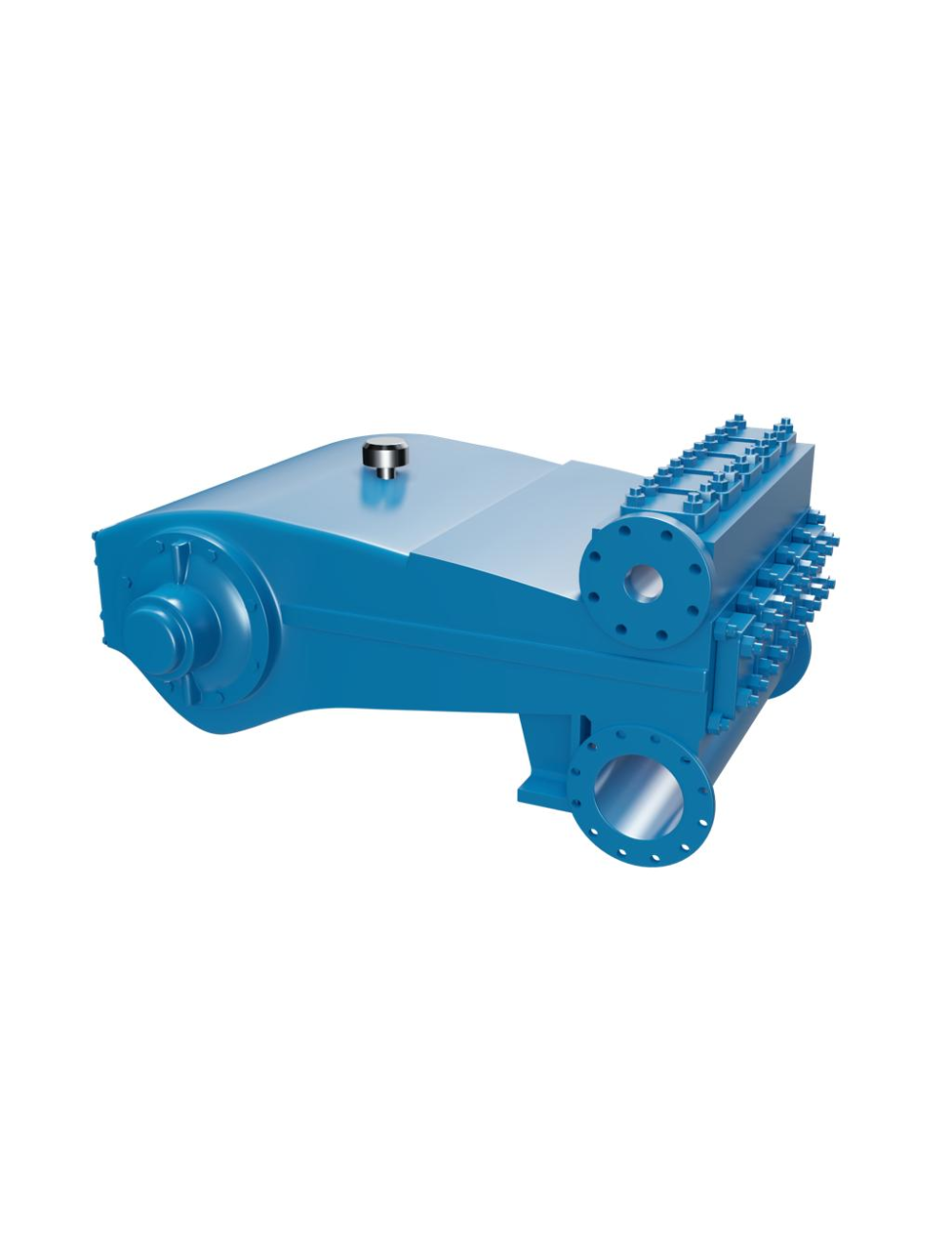

The NOV 543Q-7M (HP600AM) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 2.250” to 3.250” the maximum displacement pressure for the NOV 543Q-7M (HP600AM) is between 2339 psi (16124 kPA) and 3600 psi (24821 kPA) depending on plunger size.

This quintuplex pump will allow up to 358.2 GPM or 12283 BPD at peak performance. Operating in low-to-high pressure applications the NOV 543Q-7M (HP600AM) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 543Q-7M (HP600AM) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 280 RPM (Crankshaft speed) 543 (405)
Rated Plunger Load: pounds
(kg) 19400 (8800)
Maximum Discharge Pressure
psi (kPa) "M" Model: 3600 (24821)
Oil Capacity
gallons (L) Crankcase: 25 (94.63)

Plunger Size Range

3.250"
3.125"
3.000"
2.875"
2.750"
2.500"
2.250"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Duplex Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 543Q-7M (Wheatley HP600AM)

PUMP	English Units					100 RPM		150 RPM		175 RPM		200 RPM		225 RPM		280 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
543Q-7XL (HP600XL)	5.750	25.9672	137.3033	4.0047	747	13731	400.5	20596	600.7	24029	700.8	27461	800.9	30894	901.1	38445	1121.3
	5.500	23.7583	125.6235	3.664	817	12563	366.4	18844	549.6	21985	641.2	25125	732.8	28266	824.4	35175	1025.9
	5.250	21.6475	114.4627	3.3385	896	11447	333.8	17170	500.8	20031	584.2	22893	667.7	25755	751.2	32050	934.8
	5.000	19.6349	103.8211	3.0281	988	10383	302.8	15574	454.2	18169	529.9	20765	605.6	23360	681.3	29070	847.9
	4.750	17.7205	93.6985	2.7329	1095	9370	273.3	14055	409.9	16398	478.3	18740	546.6	21083	614.9	26236	765.2
	4.500	15.9043	84.0951	2.4528	1220	8410	245.3	12615	367.9	14717	429.2	16820	490.6	18922	551.9	23547	686.8
543Q-7L (HP600AL)	4.250	14.1862	75.0107	2.1878	1368	7502	218.8	11252	328.2	13127	382.9	15003	437.6	16878	492.3	21003	612.6
	4.125	13.364	70.6632	2.061	1452	7067	206.1	10600	309.2	12367	360.7	14133	412.2	15900	463.7	19786	577.1
	4.000	12.5664	66.4455	1.938	1544	6645	193.8	9967	290.7	11628	339.1	13290	387.6	14951	436	18605	542.6
	3.875	11.7932	62.3575	1.8188	1645	6236	181.9	9354	272.8	10913	318.3	12472	363.8	14031	409.2	17461	509.3
	3.750	11.0447	58.3993	1.7033	1757	5840	170.3	8760	255.5	10220	298.1	11680	340.7	13140	383.2	16352	476.9
	3.625	10.3206	54.5709	1.5917	1880	5458	159.2	8186	238.7	9550	278.5	10915	318.3	12279	358.1	15280	445.7
	3.500	9.6211	50.8723	1.4838	2016	5088	148.4	7631	222.6	8903	259.7	10175	296.8	11447	333.8	14245	415.5
	3.375	8.9462	47.3035	1.3797	2169	4731	138	7096	207	8279	241.4	9461	275.9	10644	310.4	13245	386.3
543Q-7M (HP600AM)	3.250	8.2958	43.8644	1.2794	2339	4387	127.9	6580	191.9	7677	223.9	8773	255.9	9870	287.9	12283	358.2
	3.125	7.6699	40.5551	1.1829	2529	4056	118.3	6084	177.4	7098	207	8112	236.6	9125	266.1	11356	331.2
	3.000	7.0686	37.3756	1.0901	2745	3738	109	5607	163.5	6541	190.8	7476	218	8410	245.3	10466	305.2
	2.875	6.4918	34.3258	1.0012	2988	3433	100.1	5149	150.2	6008	175.2	6866	200.2	7724	225.3	9612	280.3
	2.750	5.9396	31.4059	0.916	3266	3141	91.6	4711	137.4	5497	160.3	6282	183.2	7067	206.1	8794	256.5
	2.500	4.9087	25.9553	0.757	3600	2596	75.7	3894	113.6	4543	132.5	5192	151.4	5840	170.3	7268	212
	2.250	3.9761	21.0238	0.6132	3600	2103	61.3	3154	92	3680	107.3	4205	122.6	4731	138	5887	171.7
543Q-7H (HP600H)	2.125	3.5466	18.7527	0.547	5470	1876	54.7	2813	82	3282	95.7	3751	109.4	4220	123.1	5251	153.1
	2.000	3.1416	16.6114	0.4845	6175	1662	48.4	2492	72.7	2907	84.8	3323	96.9	3738	109	4652	135.7
	1.875	2.7612	14.5998	0.4258	7026	1460	42.6	2190	63.9	2555	74.5	2920	85.2	3285	95.8	4088	119.2
	1.750	2.4053	12.7181	0.3709	6170	1272	37.1	5214	55.6	2226	64.9	2544	74.2	2862	83.5	3562	103.9
	Brake Horsepower Required					194		291		340		388		436		543

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 543Q-7M (Wheatley HP600AM) 2.250	Max GPM 171.70 Max BPD 5886.00 Max PSI 3600.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 2.250	171.70	5886.00	3600.00
NOV 543Q-7M (Wheatley HP600AM) 2.500	Max GPM 212.00 Max BPD 7268.00 Max PSI 3600.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 2.500	212.00	7268.00	3600.00
NOV 543Q-7M (Wheatley HP600AM) 2.750	Max GPM 256.50 Max BPD 8794.00 Max PSI 3266.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 2.750	256.50	8794.00	3266.00
NOV 543Q-7M (Wheatley HP600AM) 2.875	Max GPM 280.30 Max BPD 9610.00 Max PSI 2988.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 2.875	280.30	9610.00	2988.00
NOV 543Q-7M (Wheatley HP600AM) 3.000	Max GPM 305.20 Max BPD 10464.00 Max PSI 2745.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 3.000	305.20	10464.00	2745.00
NOV 543Q-7M (Wheatley HP600AM) 3.125	Max GPM 331.20 Max BPD 11355.00 Max PSI 2529.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 3.125	331.20	11355.00	2529.00
NOV 543Q-7M (Wheatley HP600AM) 3.250	Max GPM 358.20 Max BPD 12281.00 Max PSI 2339.00 Out of stock 0 See more NOV 543Q-7M (Wheatley HP600AM) 3.250	358.20	12281.00	2339.00
