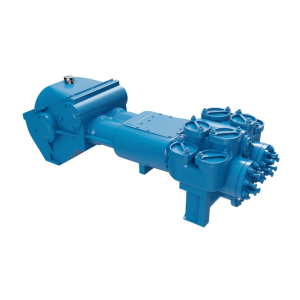

Wheatley 545
The Wheatley 545 is one of our continuous and intermittent-duty reciprocating pumps. With piston sizes ranging from 2.500” to 4.500” the maximum displacement pressure for the Wheatley 545 is between 509 psi (3511 kPA) and 157 psi (1084 kPA) depending on piston size.
The Wheatley 545 will pump up to 34.1 GPM, or 1168 BPD at peak performance. The NOV Wheatley 545 operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV Wheatley 545 works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 500 RPM (Crankshaft speed) 12.4 (9.3)
- Rated Piston Load: pounds
(kg) 2500 (1134) - Maximum Discharge Pressure
psi (kPa) 796 (5487) - Oil Capacity
gallons (L) Crankcase: 1.25 (4.7)
- Piston Size Range
- 2.500"
- 3.000"
- 3.500"
- 4.000"
- 4.500"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Gray Iron
- Cast Ductile Iron
- Specification Datasheet
| PUMP | English Units | 25 RPM | 40 RPM | 55 RPM | 70 RPM | 85 RPM | |||||||||
| Piston Dia. In. | Piston Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 535 | 2 | 3.1416 | 8.3623 | 0.2439 | 796 | 210 | 6.1 | 335 | 9.8 | 460 | 13.4 | 586 | 17.1 | 711 | 20.7 |
| 2.5 | 4.9087 | 13.7383 | 0.4007 | 509 | 344 | 10 | 550 | 16 | 756 | 22 | 962 | 28 | 1168 | 34.1 | |
| 3 | 7.0686 | 20.3074 | 0.5923 | 354 | 508 | 14.8 | 813 | 23.7 | 1117 | 32.6 | 1422 | 41.5 | 1727 | 50.3 | |
| 3.5 | 9.6211 | 28.0766 | 0.8189 | 260 | 702 | 20.5 | 1124 | 32.8 | 1545 | 45 | 1966 | 57.3 | 2387 | 69.6 | |
| 545 | 2.5 | 4.9087 | 13.7383 | 0.4007 | 509 | 344 | 10 | 550 | 16 | 756 | 22 | 962 | 28 | 1168 | 34.1 |
| 3 | 7.0686 | 20.3074 | 0.5923 | 354 | 508 | 14.8 | 813 | 23.7 | 1117 | 32.6 | 1422 | 41.5 | 1727 | 50.3 | |
| 3.5 | 9.6211 | 28.0766 | 0.8189 | 260 | 702 | 20.5 | 1124 | 32.8 | 1545 | 45 | 1966 | 57.3 | 2387 | 69.6 | |
| 4 | 12.5664 | 37.0354 | 1.0802 | 199 | 926 | 27 | 1482 | 43.2 | 2037 | 59.4 | 2593 | 75.6 | 3149 | 91.8 | |
| 4.5 | 15.9043 | 47.1943 | 1.3765 | 157 | 1180 | 34.4 | 1888 | 55.1 | 2596 | 75.7 | 3304 | 96.4 | 4012 | 117 | |
| Brake Horsepower Required | 3.7 | 5.9 | 8 | 10.2 | 12.4 |
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
