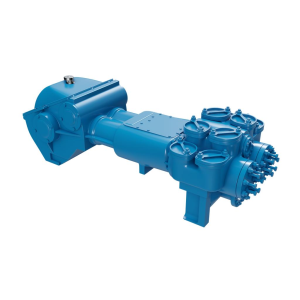

Wheatley 535

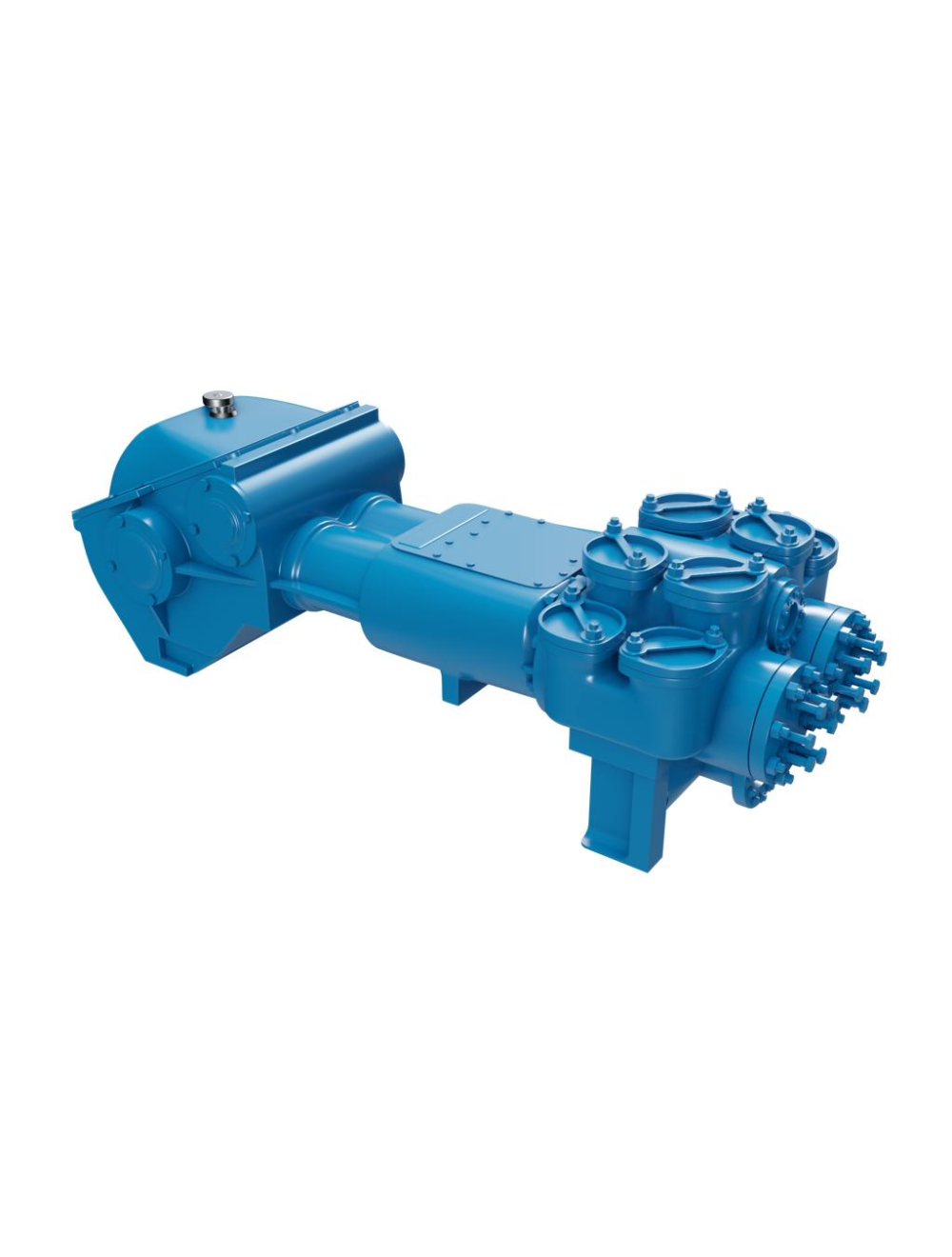

The Wheatley 535 is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 2.000” to 3.500”. The maximum displacement pressure for the Wheatley 535 is between 796 psi (5487 kPA) and 260 psi (1792 kPA) depending on plunger size.

The Wheatley 535 will pump up to 20.7 GPM, or 711 BPD at peak performance. The NOV Wheatley 535 operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV Wheatley 535 works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 500 RPM (Crankshaft speed) 12.4 (9.3)
Rated Plunger Load: pounds
(kg) 2500 (1134)
Maximum Discharge Pressure
psi (kPa) 796 (5487)
Oil Capacity
gallons (L) Crankcase: 1.25 (4.7)

Plunger Size Range

3.500"
3.000"
2.500"
2.000"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Gray Iron
Cast Ductile Iron

Specification Datasheet

Wheatley 535

PUMP	English Units					25 RPM		40 RPM		55 RPM		70 RPM		85 RPM
	Piston Dia. In.	Piston Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
535	2	3.1416	8.3623	0.2439	796	210	6.1	335	9.8	460	13.4	586	17.1	711	20.7
	2.5	4.9087	13.7383	0.4007	509	344	10	550	16	756	22	962	28	1168	34.1
	3	7.0686	20.3074	0.5923	354	508	14.8	813	23.7	1117	32.6	1422	41.5	1727	50.3
	3.5	9.6211	28.0766	0.8189	260	702	20.5	1124	32.8	1545	45	1966	57.3	2387	69.6
545	2.5	4.9087	13.7383	0.4007	509	344	10	550	16	756	22	962	28	1168	34.1
	3	7.0686	20.3074	0.5923	354	508	14.8	813	23.7	1117	32.6	1422	41.5	1727	50.3
	3.5	9.6211	28.0766	0.8189	260	702	20.5	1124	32.8	1545	45	1966	57.3	2387	69.6
	4	12.5664	37.0354	1.0802	199	926	27	1482	43.2	2037	59.4	2593	75.6	3149	91.8
	4.5	15.9043	47.1943	1.3765	157	1180	34.4	1888	55.1	2596	75.7	3304	96.4	4012	117
	Brake Horsepower Required					3.7		5.9		8		10.2		12.4
