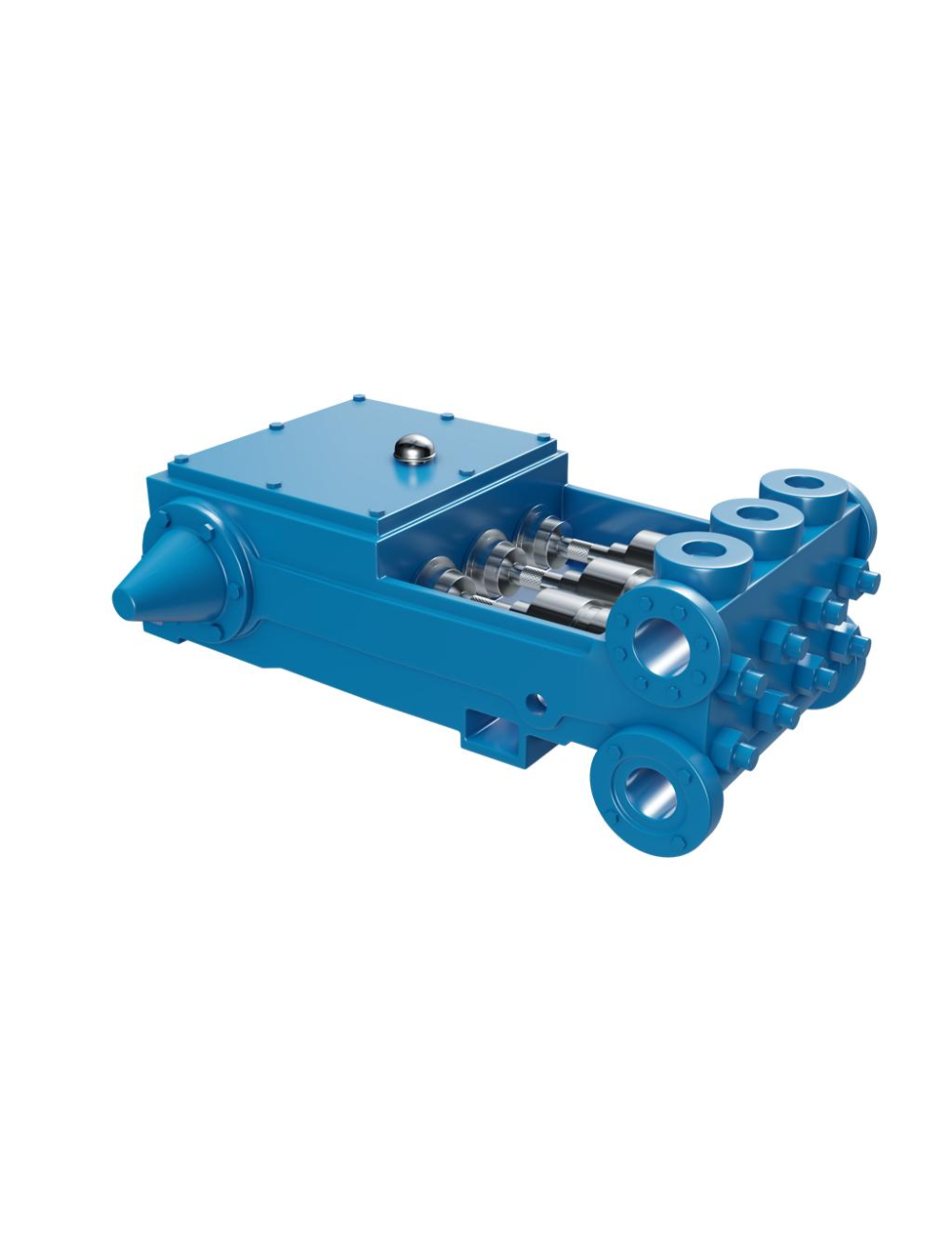

NOV 80T-3L

The NOV 80T-3L is one of our continuous and intermittent-duty reciprocating pumps. The largest of the 80T sub models (L, M and H) the 80T-3L is offered in plunger sizes ranging from 1.750” to 3.375”. Maximum displacement pressure for the NOV 80T-3L is between 708 psi (4883 kPA) and 2017 psi (13906 kPA) depending on plunger size.

The NOV 80T-3L will pump up to 174.3 GPM or 5976 BPD at peak performance. Operating in low-to-high pressure applications the NOV 80T-3L offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 80T-3L works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 500 RPM (Crankshaft speed) 80 (59 65)
Rated Plunger Load: pounds
(kg) 6336 (2874)
Maximum Discharge Pressure
psi (kPa) "L" Model: 2016 (13,901)
Oil Capacity
gallons (L) Crankcase: 2 (7.6)

Plunger Size Range

3.375"
3.250"
3.000"
2.275"
2.500"
2.250"
2.000"
1.750"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Specification Datasheet

NOV 80T-3L

Pump	English Units					200 RPM		300 RPM		350 RPM		400 RPM		450 RPM		500 RPM
	Plunger Dia. In.	Plunger Area Sq. in.	BPD per RPM	GPM per RPM	Max Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
80T-3L	3.250	8.2958	11.0815	0.3232	764	2217	64.6	3325	97	3879	113.1	4433	129.3	4987	145.4	5541	161.6
	3.000	7.0686	9.4423	0.2754	896	1889	55.1	2833	82.6	3305	96.4	3777	110.2	4250	123.9	4722	137.7
	2.750	5.9396	7.9341	0.2314	1067	1587	46.3	2381	69.4	2777	81	3174	92.6	3571	104.1	3968	115.7
	2.500	4.9087	6.5571	0.1912	1290	1312	38.2	1968	57.4	2295	66.9	2623	76.5	2951	86.1	3279	95.6
	2.250	3.9761	5.3113	0.1549	1594	1063	31	1594	46.5	1859	54.2	2125	62	2391	69.7	2656	77.5
	2.000	3.1416	4.1966	0.1224	2017	840	24.5	1259	36.7	1469	42.8	1679	49	1889	55.1	2099	61.2
80T-3M	2.000	3.1416	4.1966	0.1224	2017	840	24.5	1259	36.7	1469	42.8	1679	49	1889	55.1	2099	61.2
	1.750	2.4053	3.213	0.0937	2634	643	18.7	964	28.1	1125	32.8	1286	37.5	1446	42.2	1607	46.9
	1.500	1.7671	2.3606	0.0688	3584	473	13.8	709	20.7	827	24.1	945	27.5	1063	31	1181	34.4
80T-3H	1.250	1.2272	1.6393	0.0478	5161	328	9.6	492	14.3	574	16.7	656	19.1	738	21.5	820	23.9
	Brake Horsepower Required					32		48		56		64		72		80

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 80T-3L 2.000	Max GPM 61.20 Max BPD 2098.00 Max PSI 2017.00 Out of stock 0 See more NOV 80T-3L 2.000	61.20	2098.00	2017.00
NOV 80T-3L 2.125	Max GPM 77.50 Max BPD 2657.00 Max PSI 1594.00 Out of stock 0 See more NOV 80T-3L 2.125	77.50	2657.00	1594.00
NOV 80T-3L 2.500	Max GPM 95.60 Max BPD 3277.00 Max PSI 1290.00 Out of stock 0 See more NOV 80T-3L 2.500	95.60	3277.00	1290.00
NOV 80T-3L 3.750	Max GPM 115.70 Max BPD 3966.00 Max PSI 1067.00 Out of stock 0 See more NOV 80T-3L 3.750	115.70	3966.00	1067.00
NOV 80T-3L 3.000	Max GPM 137.70 Max BPD 4721.00 Max PSI 896.00 Out of stock 0 See more NOV 80T-3L 3.000	137.70	4721.00	896.00
NOV 80T-3L 3.375	Max GPM 161.60 Max BPD 5540.00 Max PSI 764.00 Out of stock 0 See more NOV 80T-3L 3.375	161.60	5540.00	764.00
