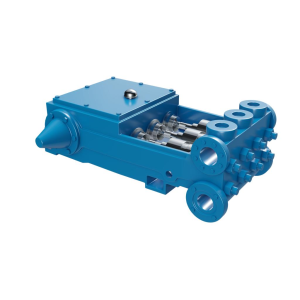

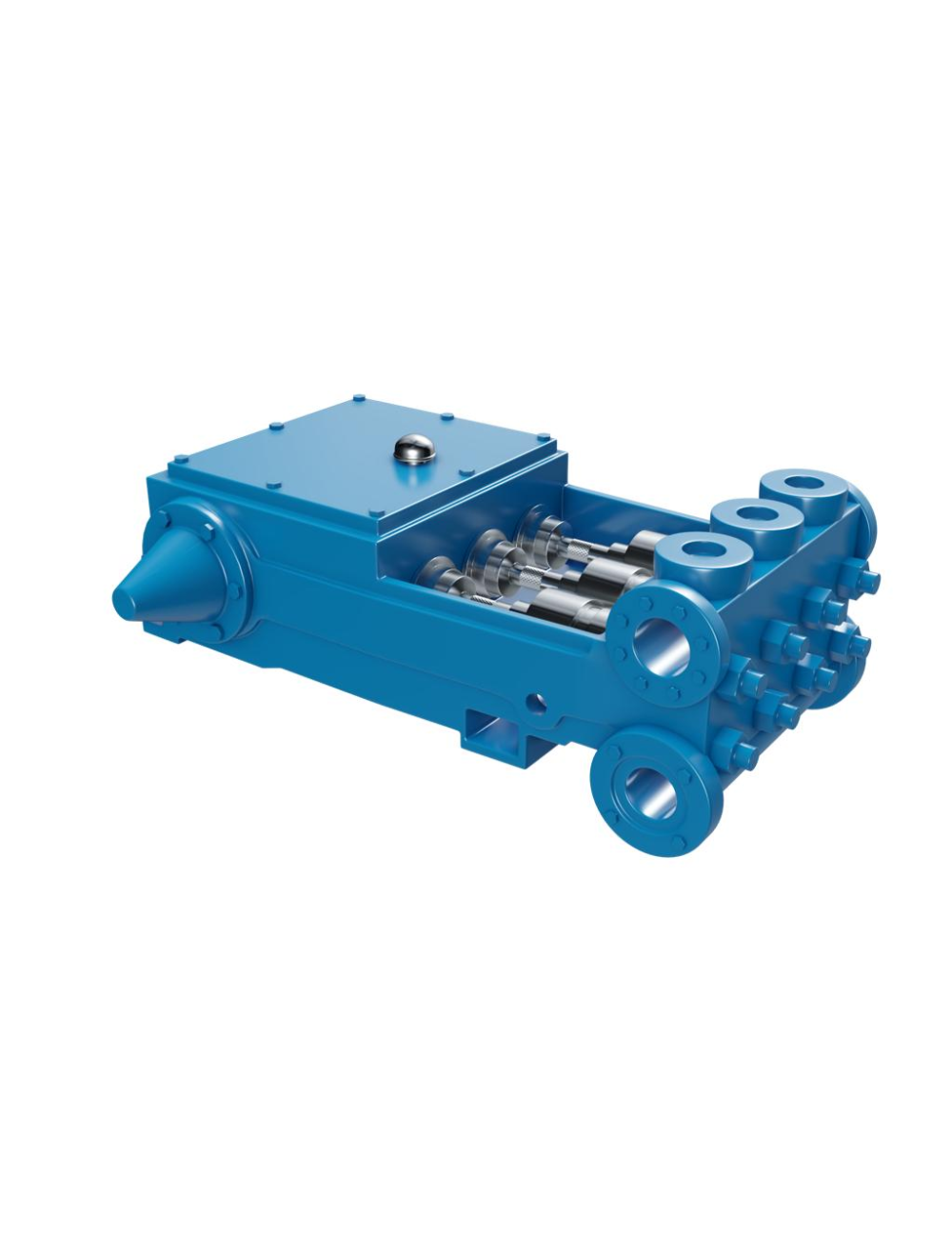

NOV 80T-3H
The NOV 80T-3H is one of our continuous and intermittent-duty reciprocating pumps. The NOV 80T-3H is offered in plunger sizes ranging from 1.000” to 1.375”. Maximum displacement pressure for the NOV 80T-3H is between 4267 psi (29420 kPA) and 5161 psi (35584 kPA) depending on plunger size.
The NOV 80T-3H will pump up to 28.9 GPM or 992 BPD at peak performance. Operating in low-to-high pressure applications the NOV 80T-3H offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 80T-3H works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 500 RPM (Crankshaft speed) 80 (59 65)
- Rated Plunger Load: pounds
(kg) 6336 (2874) - Maximum Discharge Pressure
psi (kPa) "H" Model: 5161 (35,598) - Oil Capacity
gallons (L) Crankcase: 2 (7.6)
- Plunger Size Range
- 1.375"
- 1.250"
- 1.125"
- 1.000"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Specification Datasheet
| Pump | English Units | 200 RPM | 300 RPM | 350 RPM | 400 RPM | 450 RPM | 500 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. in. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 80T-3L | 3.250 | 8.2958 | 11.0815 | 0.3232 | 764 | 2217 | 64.6 | 3325 | 97 | 3879 | 113.1 | 4433 | 129.3 | 4987 | 145.4 | 5541 | 161.6 |
| 3.000 | 7.0686 | 9.4423 | 0.2754 | 896 | 1889 | 55.1 | 2833 | 82.6 | 3305 | 96.4 | 3777 | 110.2 | 4250 | 123.9 | 4722 | 137.7 | |
| 2.750 | 5.9396 | 7.9341 | 0.2314 | 1067 | 1587 | 46.3 | 2381 | 69.4 | 2777 | 81 | 3174 | 92.6 | 3571 | 104.1 | 3968 | 115.7 | |
| 2.500 | 4.9087 | 6.5571 | 0.1912 | 1290 | 1312 | 38.2 | 1968 | 57.4 | 2295 | 66.9 | 2623 | 76.5 | 2951 | 86.1 | 3279 | 95.6 | |
| 2.250 | 3.9761 | 5.3113 | 0.1549 | 1594 | 1063 | 31 | 1594 | 46.5 | 1859 | 54.2 | 2125 | 62 | 2391 | 69.7 | 2656 | 77.5 | |
| 2.000 | 3.1416 | 4.1966 | 0.1224 | 2017 | 840 | 24.5 | 1259 | 36.7 | 1469 | 42.8 | 1679 | 49 | 1889 | 55.1 | 2099 | 61.2 | |
| 80T-3M | 2.000 | 3.1416 | 4.1966 | 0.1224 | 2017 | 840 | 24.5 | 1259 | 36.7 | 1469 | 42.8 | 1679 | 49 | 1889 | 55.1 | 2099 | 61.2 |
| 1.750 | 2.4053 | 3.213 | 0.0937 | 2634 | 643 | 18.7 | 964 | 28.1 | 1125 | 32.8 | 1286 | 37.5 | 1446 | 42.2 | 1607 | 46.9 | |
| 1.500 | 1.7671 | 2.3606 | 0.0688 | 3584 | 473 | 13.8 | 709 | 20.7 | 827 | 24.1 | 945 | 27.5 | 1063 | 31 | 1181 | 34.4 | |
| 80T-3H | 1.250 | 1.2272 | 1.6393 | 0.0478 | 5161 | 328 | 9.6 | 492 | 14.3 | 574 | 16.7 | 656 | 19.1 | 738 | 21.5 | 820 | 23.9 |
| Brake Horsepower Required | 32 | 48 | 56 | 64 | 72 | 80 | |||||||||||
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
