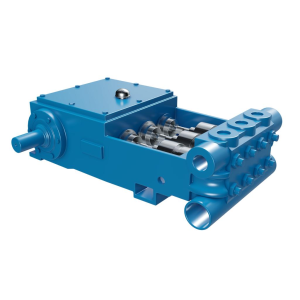

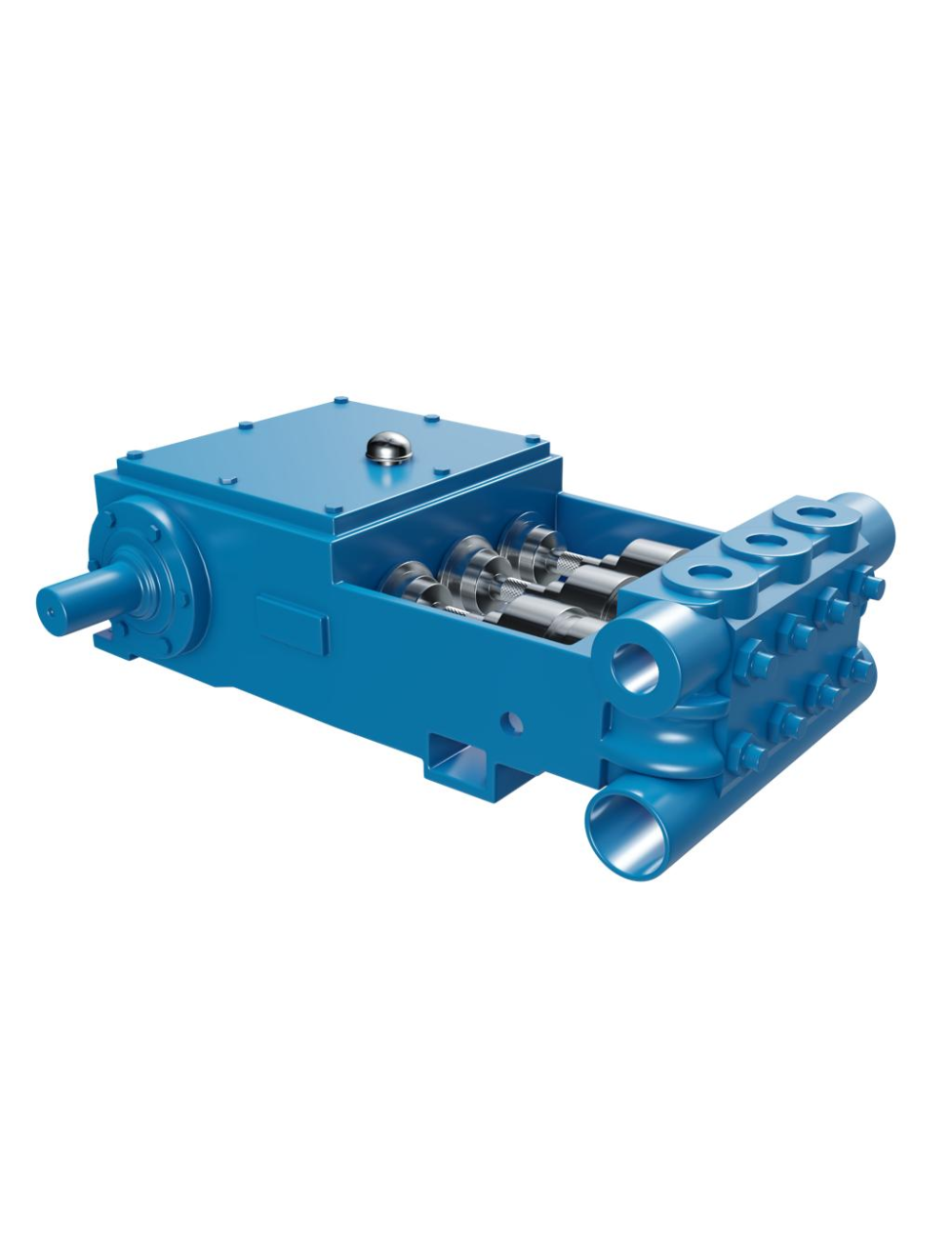

NOV 60T-3H (National J-60-H)

The NOV 60T-3H (NATIONAL J-60-H) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 60T-3H (NATIONAL J-60-H) is offered in plunger sizes ranging from 1.000” to 1.375”. Maximum displacement pressure for the NOV 60T-3H (NATIONAL J-60-H) is between 3200 psi (22063 kPA) and 5000 psi (34474 kPA) depending on plunger size.

The NOV 60T-3H (NATIONAL J-60-H) will pump up to 28.9 GPM or 992 BPD at peak performance. Operating in low-to-high pressure applications the NOV 60T-3H (NATIONAL J-60-H) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 60T-3H (NATIONAL J-60-H) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 500 RPM (Crankshaft speed) 60 (44.74)
Rated Plunger Load: pounds
(kg) 4750 (2154.5)
Maximum Discharge Pressure
psi (kPa) "H" Model: 5000 (34,474)
Oil Capacity
gallons (L) Crankcase: 2 (7.6)

Plunger Size Range

1.375"
1.250"
1.125"
1.000"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Specification Datasheet

NOV 60T-3H (National J-60-H)

PUMP	English Units					200 RPM		300 RPM		350 RPM		400 RPM		450 RPM		500 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
60T-3L	3	7.0686	9.4423	0.2754	672	1889	55.1	2833	82.6	3305	96.4	3777	110.2	4250	123.9	4722	137.7
	2.75	5.9396	7.9341	0.2314	800	1587	46.3	2381	69.4	2777	81	3174	92.6	3571	104.1	3968	115.7
	2.500	4.9087	6.5571	0.1912	968	1312	38.2	1968	57.4	2295	66.9	2623	76.5	2951	86.1	3279	95.6
	2.25	3.9761	5.3113	0.1549	1195	1063	31	1594	46.5	1859	54.2	2125	62	2391	69.7	2656	77.5
	2	3.1416	4.1966	0.1224	1500	840	24.5	1259	36.7	1469	42.8	1679	49	1889	55.1	2099	61.2
60T-3M	2.000	3.1416	4.1966	0.1224	1512	840	24.5	1259	36.7	1469	42.8	1679	49	1889	55.1	2099	61.2
	1.75	2.4053	3.213	0.0937	1975	643	18.7	964	28.1	1125	32.8	1286	37.5	1446	42.2	1607	46.9
	1.625	2.0739	2.7704	0.0808	2290	555	16.2	832	24.2	970	28.3	1109	32.3	1247	36.4	1386	40.4
	1.5	1.7671	2.3606	0.0688	2688	473	13.8	709	20.7	827	24.1	945	27.5	1063	31	1181	34.4
	1.375	1.4849	1.9835	0.0579	3200	397	11.6	596	17.4	695	20.2	794	23.1	893	26	992	28.9
60T-3H	1.375	1.4849	1.9835	0.0579	3200	397	11.6	596	17.4	695	20.2	794	23.1	893	26	992	28.9
	1.250	1.2272	1.6393	0.0478	3871	328	9.6	492	14.3	574	16.7	656	19.1	738	21.5	820	23.9
	1.125	0.994	1.3278	0.0387	4779	266	7.7	399	11.6	465	13.6	532	15.5	598	17.4	664	19.4
	1	0.7854	1.0491	0.0306	5000	210	6.1	315	9.2	368	10.7	420	12.2	473	13.8	525	15.3
	Brake Horsepower Required					25		37		43		48		54		60

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 60T-3H (National J-60-H) 1.100	Max GPM 15.30 Max BPD 525.00 Max PSI 5000.00 Out of stock 0 See more NOV 60T-3H (National J-60-H) 1.100	15.30	525.00	5000.00
NOV 60T-3H (National J-60-H) 1.125	Max GPM 19.40 Max BPD 664.00 Max PSI 4779.00 Out of stock 0 See more NOV 60T-3H (National J-60-H) 1.125	19.40	664.00	4779.00
NOV 60T-3H (National J-60-H) 1.250	Max GPM 23.90 Max BPD 820.00 Max PSI 3871.00 Out of stock 0 See more NOV 60T-3H (National J-60-H) 1.250	23.90	820.00	3871.00
NOV 60T-3H (National J-60-H) 1.375	Max GPM 28.90 Max BPD 992.00 Max PSI 3200.00 Out of stock 0 See more NOV 60T-3H (National J-60-H) 1.375	28.90	992.00	3200.00
