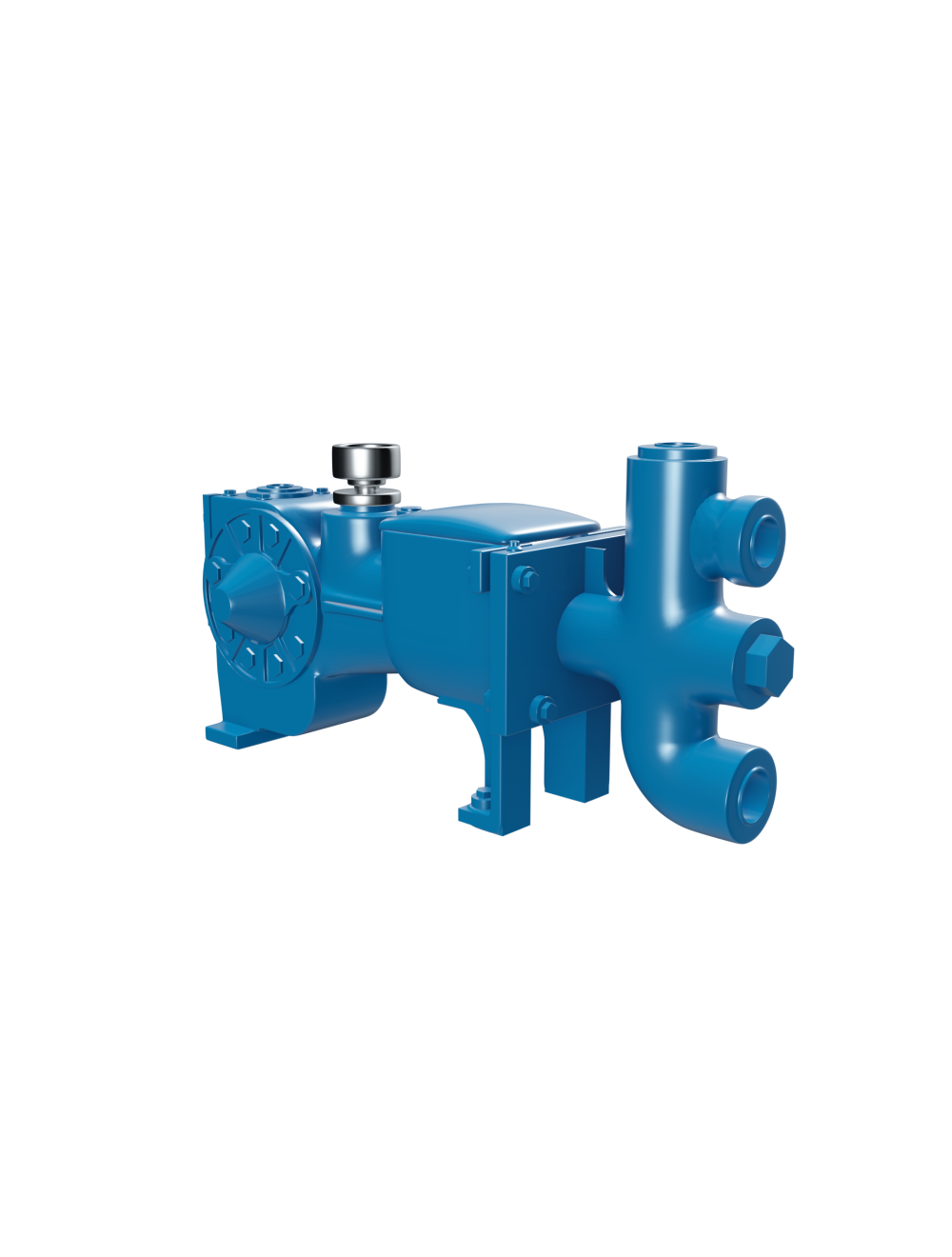

NOV 5S-2M (Wheatley P50A)

The NOV 5S-2M (Wheatley P50A) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.125” to 1.750”. Maximum displacement pressure for the 5S-2M (Wheatley P50A) is between 646 psi (4452 kPA) and 1149 psi (7920 kPA) depending on plunger size.

The 5S-2M (Wheatley P50A) will pump up to 7.97 GPM, or 274 BPD at peak performance. The NOV 5S-2M (Wheatley P50A) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 5S-2M (Wheatley P50A) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 350 RPM (Crankshaft speed) 5.5 (4.1)
Rated Plunger Load: pounds
(kg) 2030 (921)
Maximum Discharge Pressure
psi (kPa) "M" Model: 2042 (14081)
Oil Capacity
gallons (L) Crankcase: 1/2 (1.89)

Plunger Size Range

1.750"
1.625"
1.500"
1.375"
1.250"
1.125"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
(Cast 316 Stainless Steel)
Cast Nickel-Aluminum-Bronze
Plate Carbon Steel

Specification Datasheet

NOV 5S-2M (Wheatley P50B)

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		300 RPM		350 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
5S-2L (P50ALS)	2	3.1416	1.02	0.0297	646	51	1.49	1.53	4.46	204	5.95	255	7.44	306	8.92	357	10.41
	1.875	2.7612	0.8965	0.0261	735	45	1.31	135	3.92	180	5.23	225	6.54	269	7.84	314	9.15
	1.75	2.4053	0.7809	0.0228	844	40	1.14	118	3.42	157	4.56	196	5.69	235	6.83	274	7.97
	1.625	2.0739	0.6734	0.0196	979	34	0.98	102	2.95	135	3.93	169	4.91	203	5.89	236	6.87
	1.5	1.7671	0.5737	0.0167	1149	29	0.84	87	2.51	115	3.35	144	4.18	173	5.02	201	5.86
5S-2M (P50A)	1.75	2.4053	0.7809	0.0228	844	40	1.14	118	3.42	157	4.56	196	5.69	235	6.83	274	7.97
	1.625	2.0739	0.6734	0.0196	979	34	0.98	102	2.95	135	3.93	169	4.91	203	5.89	236	6.87
	1.5	1.7671	0.5737	0.0167	1149	29	0.84	87	2.51	115	3.35	144	4.18	173	5.02	201	5.86
	1.375	1.4849	0.4821	0.0141	1367	25	0.7	73	2.11	97	2.81	121	3.52	145	4.22	169	4.92
	1.25	1.2272	0.3984	0.0116	1654	20	0.58	60	1.74	80	2.32	100	2.91	120	3.49	140	4.07
	1.125	0.994	0.3227	0.0094	2042	17	0.47	49	1.41	65	1.88	81	2.35	97	2.82	113	3.29
5S-2H (P50H)	1	0.7854	0.255	0.0074	2585	13	0.37	39	1.12	51	1.49	64	1.86	77	2.23	90	2.6
	0.875	0.6013	0.1952	0.0057	3376	10	0.28	30	0.85	40	1.14	49	1.42	59	1.71	69	1.99
	0.75	0.4418	0.1434	0.0042	4595	8	0.21	22	0.63	29	0.84	36	1.05	44	1.26	51	1.46
Brake Horsepower Required					0.8		2.3		4		3.9		4.7		5.5

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 5S-2M (Wheatley P50A) 1.125	Max GPM 3.29 Max BPD 112.00 Max PSI 2042.00 Qty in stock 10000 See more NOV 5S-2M (Wheatley P50A) 1.125	3.29	112.00	2042.00
NOV 5S-2M (Wheatley P50A) 1.250	Max GPM 4.07 Max BPD 139.00 Max PSI 1654.00 Qty in stock 10000 See more NOV 5S-2M (Wheatley P50A) 1.250	4.07	139.00	1654.00
NOV 5S-2M (Wheatley P50A) 1.375	Max GPM 4.92 Max BPD 168.00 Max PSI 1367.00 Out of stock 0 See more NOV 5S-2M (Wheatley P50A) 1.375	4.92	168.00	1367.00
NOV 5S-2M (Wheatley P50A) 1.500	Max GPM 5.86 Max BPD 200.00 Max PSI 1149.00 Out of stock 0 See more NOV 5S-2M (Wheatley P50A) 1.500	5.86	200.00	1149.00
NOV 5S-2M (Wheatley P50A) 1.625	Max GPM 6.87 Max BPD 235.00 Max PSI 979.00 Out of stock 0 See more NOV 5S-2M (Wheatley P50A) 1.625	6.87	235.00	979.00
NOV 5S-2M (Wheatley P50A) 1.750	Max GPM 7.97 Max BPD 274.00 Max PSI 844.00 Out of stock 0 See more NOV 5S-2M (Wheatley P50A) 1.750	7.97	274.00	844.00
