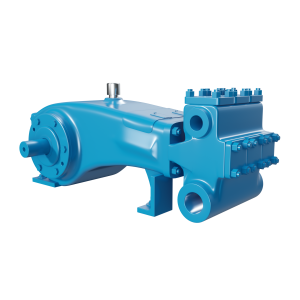

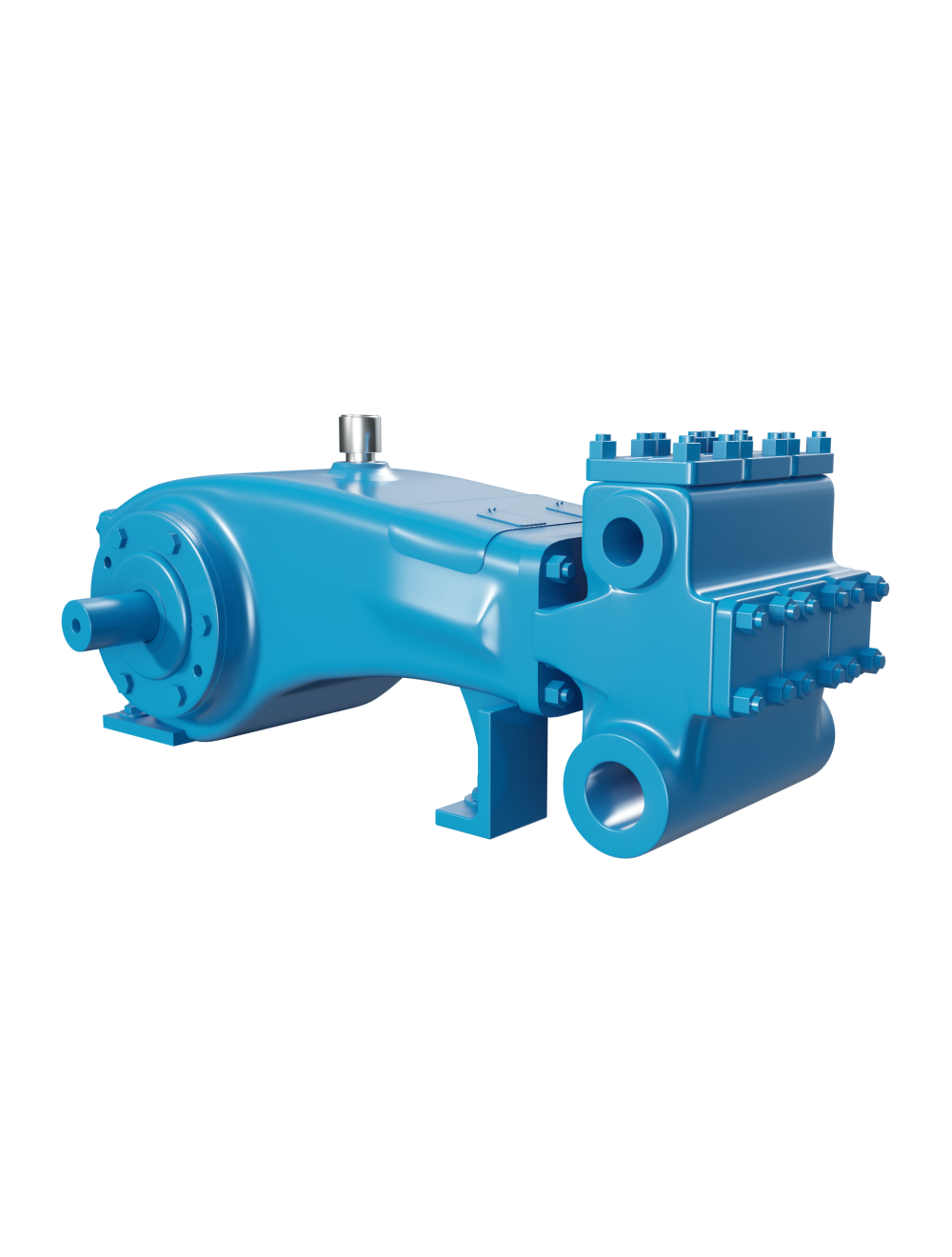

NOV 59T-3M (Wheatley T365AM)

The NOV 59T-3M (WHEATLEY T365AM) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 59T-3M (WHEATLEY T365AM) is offered in plunger sizes ranging from 1.750” to 2.500”. Maximum displacement pressure for the NOV 59T-3M (WHEATLEY T365AM) is between 970 psi (4643 kPA) and 1979 psi (13645 kPA) depending on plunger size.

The NOV 59T-3M (WHEATLEY T365AM) will pump up to 93.71 GPM or 3213 BPD at peak performance. Operating in low-to-high pressure applications the NOV 59T-3M (WHEATLEY T365AM) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 59T-3M (WHEATLEY T365AM) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 420 RPM (Crankshaft speed) 59 (44)
Rated Plunger Load: pounds
(kg) 4760 (2159)
Maximum Discharge Pressure
psi (kPa) "M" Model: 2295 (15825)
Oil Capacity
gallons (L) Crankcase: 2.50 (9.46)

Plunger Size Range

2.500"
2.375"
2.250"
2.125"
2.000"
1.875"
1.750"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
Cast Nickel-Aluminum-Bronze
Forged 316 Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 59T-3M (Wheatley T365AM)

PUMP	English Units					50 RPM		150 RPM		250 RPM		300 RPM		350 RPM		420 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
59T-3L (T365AL)	3	7.0686	11.016	0.3213	673	551	16.1	1653	48.19	2754	80.32	3305	96.39	3856	112.5	4627	134.9
	2.875	6.4918	10.1171	0.2951	733	506	14.8	1518	44.26	2530	73.77	3036	88.52	3541	103.3	4250	123.9
	2.75	5.9396	9.2565	0.27	801	463	13.5	1389	40.5	2315	67.5	2777	80.99	3240	94.49	3888	113.4
	2.625	5.4119	8.4341	0.246	880	422	12.3	1266	36.9	2109	61.5	2531	73.8	2952	86.1	3543	103.3
	2.5	4.9087	7.65	0.2231	970	383	11.16	1148	33.47	1913	55.78	2295	66.94	2678	78.09	3213	93.71
59T-3M (T365AM)	2.5	4.9087	7.65	0.2231	970	383	11.16	1148	33.47	1913	55.78	2295	66.94	2678	78.09	3213	93.71
	2.375	4.4301	6.9041	0.2014	1074	346	10.07	1036	30.21	1727	50.34	2072	60.41	2417	70.48	2900	84.58
	2.25	3.9761	6.1965	0.1807	1197	310	9.04	930	27.11	1550	45.18	1859	54.22	2169	63.26	2603	75.91
	2.125	3.5466	5.5271	0.1612	1342	277	8.06	830	24.18	1382	40.3	1659	48.36	1935	56.42	2322	67.71
	2	3.1416	4.896	0.1428	1515	245	7.14	735	21.42	1224	35.7	1469	42.84	1714	49.98	2057	59.98
	1.875	2.7612	4.3031	0.1255	1724	216	6.28	646	18.83	1076	31.38	1291	37.65	1507	43.93	1808	52.71
	1.75	2.4053	3.7485	0.1093	1979	188	5.47	563	16.4	938	27.33	1125	32.8	1312	38.27	1575	45.92
	1.625	2.0739	3.2321	0.0943	2295	162	4.71	485	14.14	809	23.57	970	28.28	1132	32.99	1358	39.59
59T-3MS (T365MS)	1.5	1.7671	2.754	0.0803	2694	138	4.02	414	12.05	689	20.08	827	24.1	964	28.11	1157	33.74
	1.375	1.4849	2.3141	0.0675	3206	116	3.37	348	10.12	579	16.87	695	20.25	810	23.62	972	28.35
	1.25	1.2272	1.9125	0.0558	3879	96	2.79	287	8.37	479	13.95	574	16.73	670	19.52	804	23.43
	1.125	0.994	1.5491	0.0452	4789	78	2.26	233	6.78	388	11.3	465	13.55	543	15.81	651	18.98
59T-3H (T365H)	1	0.7854	1.224	0.0357	6061	62	1.78	184	5.35	306	8.92	368	10.71	429	12.49	515	14.99
	0.875	0.6013	0.9371	0.0273	7916	47	1.37	141	4.1	235	6.83	282	8.2	328	9.57	394	11.48
	0.75	0.4418	0.6885	0.0201	10000	35	1	104	3.01	173	5.02	207	6.02	241	7.03	290	8.43
	Brake Horsepower Required					7		21		35		42		49		59

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 59T-3M (Wheatley T365AM) 1.625	Max GPM 39.59 Max BPD 1657.00 Max PSI 2295.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 1.625	39.59	1657.00	2295.00
NOV 59T-3M (Wheatley T365AM) 1.750	Max GPM 45.92 Max BPD 1542.00 Max PSI 1979.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 1.750	45.92	1542.00	1979.00
NOV 59T-3M (Wheatley T365AM) 1.875	Max GPM 52.71 Max BPD 1807.00 Max PSI 1724.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 1.875	52.71	1807.00	1724.00
NOV 59T-3M (Wheatley T365AM) 2.000	Max GPM 59.98 Max BPD 2056.00 Max PSI 1515.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 2.000	59.98	2056.00	1515.00
NOV 59T-3M (Wheatley T365AM) 2.125	Max GPM 67.71 Max BPD 2321.00 Max PSI 1342.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 2.125	67.71	2321.00	1342.00
NOV 59T-3M (Wheatley T365AM) 2.250	Max GPM 75.91 Max BPD 2602.00 Max PSI 1197.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 2.250	75.91	2602.00	1197.00
NOV 59T-3M (Wheatley T365AM) 2.375	Max GPM 84.58 Max BPD 2899.00 Max PSI 1074.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 2.375	84.58	2899.00	1074.00
NOV 59T-3M (Wheatley T365AM) 2.500	Max GPM 93.71 Max BPD 3212.00 Max PSI 970.00 Out of stock 0 See more NOV 59T-3M (Wheatley T365AM) 2.500	93.71	3212.00	970.00
