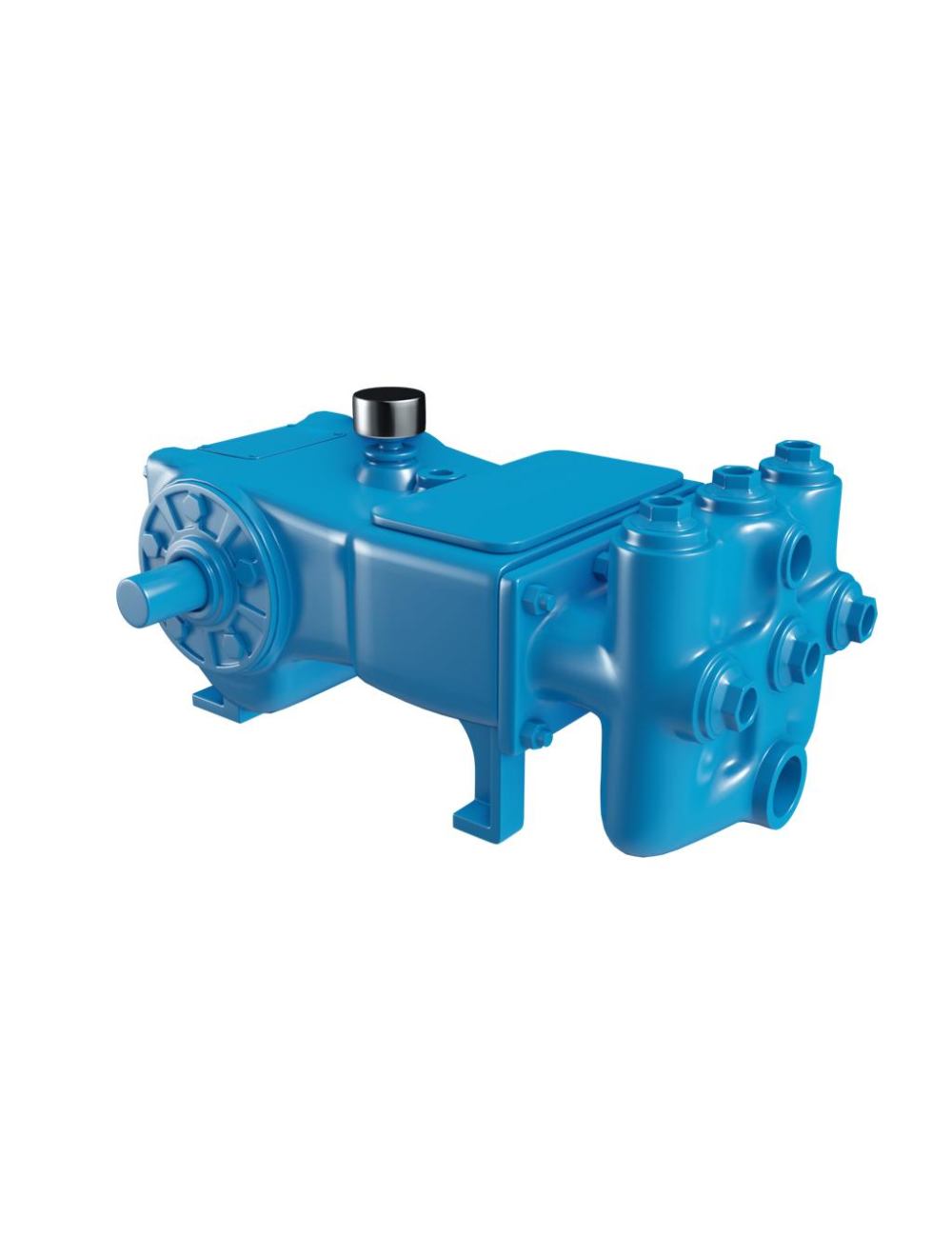

NOV 32T-2M (Wheatley T225M)

The NOV 32T-2M (Wheatley T225M) is one of our continuous and intermittent-duty reciprocating pumps. The 32T-2M (Wheatley T225M) is offered in plunger sizes ranging from 1.125” to 1.750”. Maximum displacement pressure for the 32T-2M (Wheatley T225M) is between 1497 psi (10319 kPA) and 2565 psi (17685 kPA) depending on plunger size.

The 32T-2M (Wheatley T225M) will pump up to 32.7 GPM, or 1121 BPD at peak performance. The NOV 32T-2M (Wheatley T225M) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 32T-2M (Wheatley T225M) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 465 RPM (Crankshaft speed) 32 (24)
Rated Plunger Load: pounds
(kg) 3600 (1633)
Maximum Discharge Pressure
psi (kPa) "L" Model: 2037 (14046)
Oil Capacity
gallons (L) Crankcase: 1-1/4 (4.73)

Plunger Size Range

1.750"
1.625"
1.500"
1.375"
1.250"
1.125"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
Cast Nickel-Aluminum-Bronze
Forged 316 Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 32T-2M (Wheatley T225M)

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		350 RPM		465 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
32T-2L (T225LS)	2	3.1416	3.1474	0.0918	1146	158	4.6	473	13.8	630	18.4	787	22.9	1102	32.1	1464	42.7
	1.875	2.7612	2.7663	0.0807	1304	139	4	415	12.1	554	16.1	692	20.2	969	28.2	1287	37.5
	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
32T-2M (T225M)	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
	1.375	1.4849	1.4876	0.0434	2424	75	2.2	224	6.5	298	8.7	372	10.8	521	15.2	692	20.2
	1.25	1.2272	1.2295	0.0359	2565	62	1.8	185	5.4	246	7.2	308	9	431	12.6	572	16.7
	1.125	0.994	0.9959	0.029	2565	50	1.5	150	4.4	200	5.8	249	7.3	349	10.2	464	13.5
32T-2H (T225H)	1	0.7854	0.7869	0.0229	4584	40	1.1	119	3.4	158	4.6	197	5.7	276	8	366	10.7
	0.875	0.6013	0.6024	0.0176	4600	31	0.9	91	2.6	121	3.5	151	4.4	211	6.1	281	8.2
	0.75	0.4418	0.4426	0.0129	4600	23	0.6	67	1.9	89	2.6	111	3.2	155	4.5	206	6
	Brake Horsepower Required					3.4		10.2		13.6		17		24		32

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 32T-2M (Wheatley T225M) 1.125	Max GPM 13.50 Max BPD 462.00 Max PSI 2565.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.125	13.50	462.00	2565.00
NOV 32T-2M (Wheatley T225M) 1.250	Max GPM 16.70 Max BPD 572.00 Max PSI 2565.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.250	16.70	572.00	2565.00
NOV 32T-2M (Wheatley T225M) 1.375	Max GPM 20.20 Max BPD 692.00 Max PSI 2424.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.375	20.20	692.00	2424.00
NOV 32T-2M (Wheatley T225M) 1.500	Max GPM 24.00 Max BPD 822.00 Max PSI 2037.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.500	24.00	822.00	2037.00
NOV 32T-2M (Wheatley T225M) 1.625	Max GPM 28.20 Max BPD 966.00 Max PSI 1736.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.625	28.20	966.00	1736.00
NOV 32T-2M (Wheatley T225M) 1.750	Max GPM 32.70 Max BPD 1121.00 Max PSI 1497.00 Out of stock 0 See more NOV 32T-2M (Wheatley T225M) 1.750	32.70	1121.00	1497.00
