NOV 32T-2L (Wheatley T225LS)

Skip to the beginning of the images gallery

NOV 32T-2L (Wheatley T225LS)

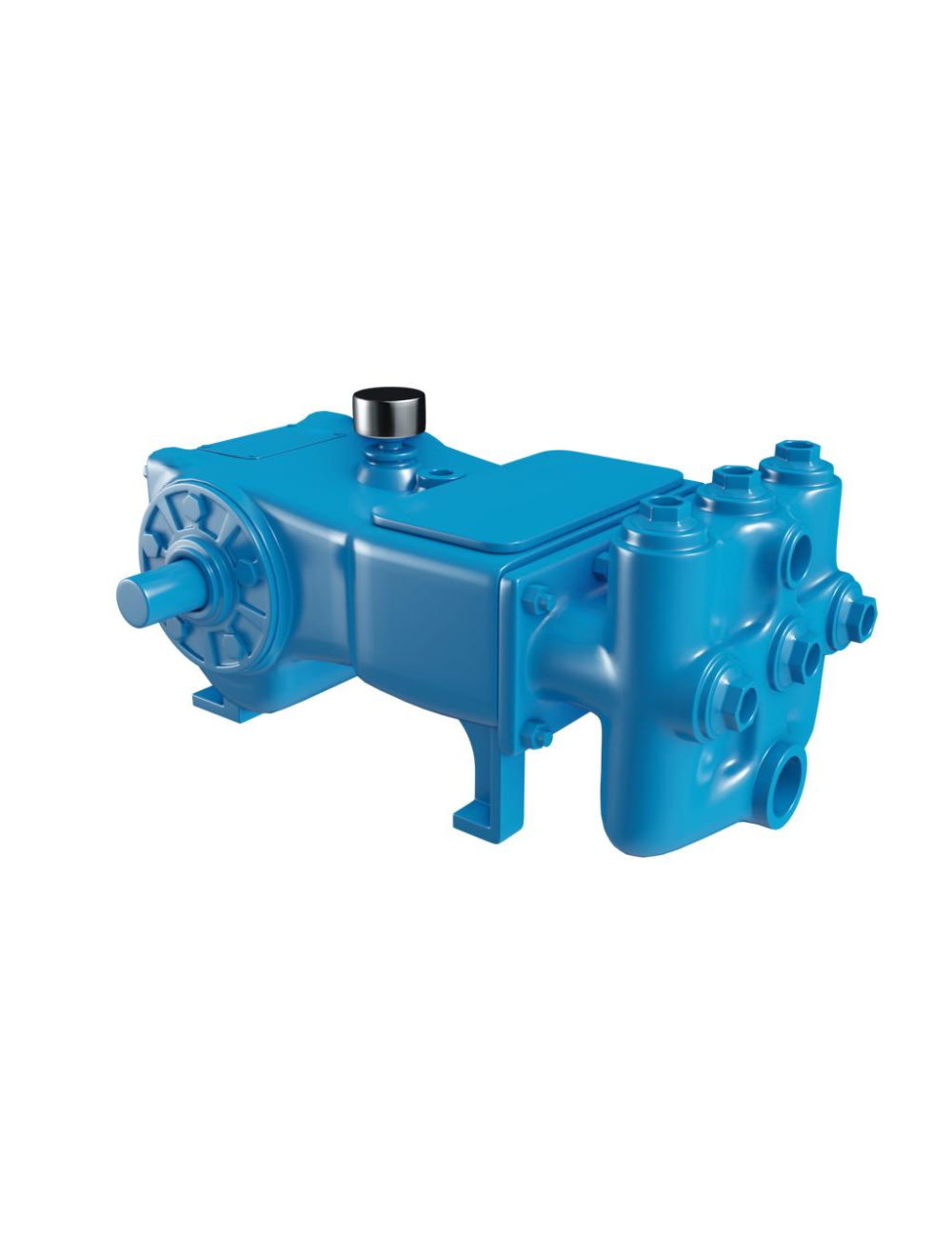

The NOV 32T-2L (Wheatley T225LS) is one of our continuous and intermittent-duty reciprocating pumps. The largest of the 32T (T225) sub models (L, M and H) the 32T-2L (Wheatley T225LS) is offered in plunger sizes ranging from 1.500” to 2.000”. Maximum displacement pressure for the 32T-2L (Wheatley T225LS) is between 1146 psi (7901 kPA) and 2037 psi (14046 kPA) depending on plunger size.

The 32T-2L (Wheatley T225LS) will pump up to 42.7 GPM, or 1446 BPD at peak performance. The NOV 32T-2L (Wheatley T225LS) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 32T-2L (Wheatley T225LS) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 465 RPM (Crankshaft speed) 32 (24)
Rated Plunger Load: pounds
(kg) 3600 (1633)
Maximum Discharge Pressure
psi (kPa) "L" Model: 2037 (14046)
Oil Capacity
gallons (L) Crankcase: 1-1/4 (4.73)

Plunger Size Range

2.000"
1.875"
1.750"
1.625"
1.500"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
Cast Nickel-Aluminum-Bronze
Forged 316 Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 32T-2L (Wheatley T225LS)

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		350 RPM		465 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
32T-2L (T225LS)	2	3.1416	3.1474	0.0918	1146	158	4.6	473	13.8	630	18.4	787	22.9	1102	32.1	1464	42.7
	1.875	2.7612	2.7663	0.0807	1304	139	4	415	12.1	554	16.1	692	20.2	969	28.2	1287	37.5
	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
32T-2M (T225M)	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
	1.375	1.4849	1.4876	0.0434	2424	75	2.2	224	6.5	298	8.7	372	10.8	521	15.2	692	20.2
	1.25	1.2272	1.2295	0.0359	2565	62	1.8	185	5.4	246	7.2	308	9	431	12.6	572	16.7
	1.125	0.994	0.9959	0.029	2565	50	1.5	150	4.4	200	5.8	249	7.3	349	10.2	464	13.5

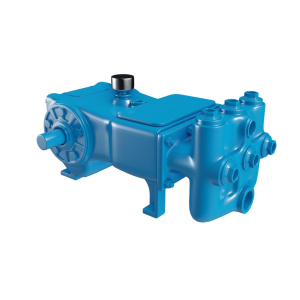

32T-2H (T225H)	1	0.7854	0.7869	0.0229	4584	40	1.1	119	3.4	158	4.6	197	5.7	276	8	366	10.7
	0.875	0.6013	0.6024	0.0176	4600	31	0.9	91	2.6	121	3.5	151	4.4	211	6.1	281	8.2
	0.75	0.4418	0.4426	0.0129	4600	23	0.6	67	1.9	89	2.6	111	3.2	155	4.5	206	6
	Brake Horsepower Required					3.4		10.2		13.6		17		24		32

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 32T-2L (Wheatley T225LS) 1.500	Max GPM 24.00 Max BPD 822.00 Max PSI 2037.00 Out of stock 0 See more NOV 32T-2L (Wheatley T225LS) 1.500	24.00	822.00	2037.00
NOV 32T-2L (Wheatley T225LS) 1.625	Max GPM 28.20 Max BPD 966.00 Max PSI 1736.00 Out of stock 0 See more NOV 32T-2L (Wheatley T225LS) 1.625	28.20	966.00	1736.00
NOV 32T-2L (Wheatley T225LS) 1.750	Max GPM 32.70 Max BPD 1121.00 Max PSI 1497.00 Out of stock 0 See more NOV 32T-2L (Wheatley T225LS) 1.750	32.70	1121.00	1497.00
NOV 32T-2L (Wheatley T225LS) 1.875	Max GPM 37.50 Max BPD 1285.00 Max PSI 1304.00 Out of stock 0 See more NOV 32T-2L (Wheatley T225LS) 1.875	37.50	1285.00	1304.00
NOV 32T-2L (Wheatley T225LS) 2.000	Max GPM 42.70 Max BPD 1464.00 Max PSI 1146.00 Out of stock 0 See more NOV 32T-2L (Wheatley T225LS) 2.000	42.70	1464.00	1146.00
