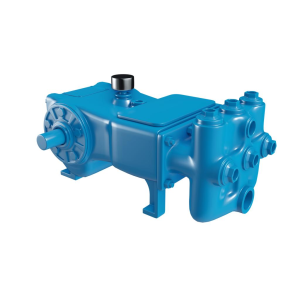

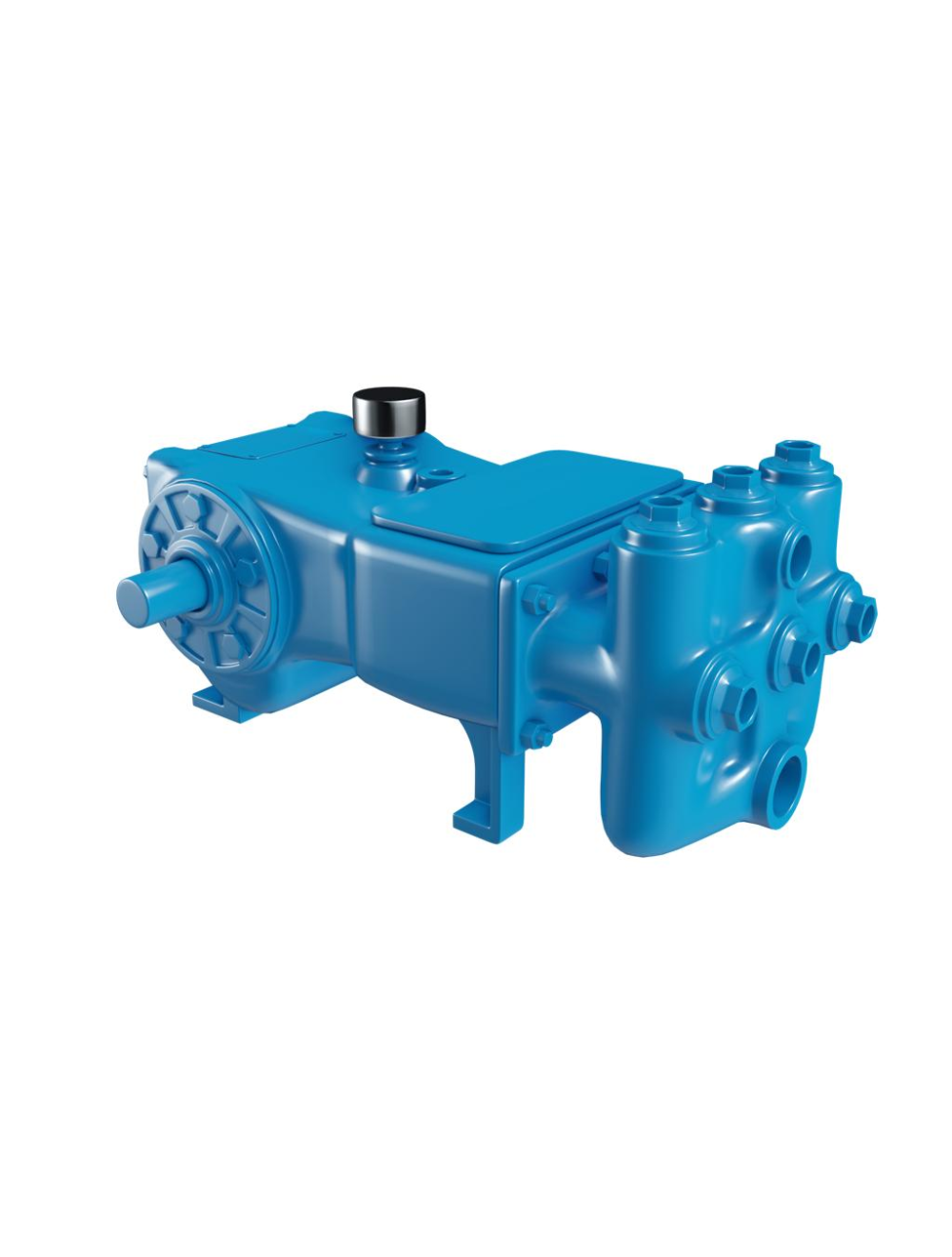

NOV 32T-2H (Wheatley T225H)
The NOV 32T-2H (Wheatley T225H) is one of our continuous and intermittent-duty reciprocating pumps. The 32T-2H (Wheatley T225H) is offered in plunger sizes ranging from 0.750” to 1.000”. Maximum displacement pressure for the 32T-2H (Wheatley T225H) is between 1497 psi (10319 kPA) and 2565 psi (17685 kPA) depending on plunger size.
The 32T-2H (Wheatley T225H) will pump up to 10.7 GPM, or 366 BPD at peak performance. The NOV 32T-2H (Wheatley T225H) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 32T-2H (Wheatley T225H) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 465 RPM (Crankshaft speed) 32 (24)
- Rated Plunger Load: pounds
(kg) 3600 (1633) - Maximum Discharge Pressure
psi (kPa) "L" Model: 2037 (14046) - Oil Capacity
gallons (L) Crankcase: 1-1/4 (4.73)
- Plunger Size Range
- 1.000"
- 0.875"
- 0.750"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Ductile Iron
- Cast Nickel-Aluminum-Bronze
- Forged 316 Stainless Steel
- Forged/Plate Carbon Steel
- Specification Datasheet
| PUMP | English Units | 50 RPM | 150 RPM | 200 RPM | 250 RPM | 350 RPM | 465 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 32T-2L (T225LS) | 2 | 3.1416 | 3.1474 | 0.0918 | 1146 | 158 | 4.6 | 473 | 13.8 | 630 | 18.4 | 787 | 22.9 | 1102 | 32.1 | 1464 | 42.7 |
| 1.875 | 2.7612 | 2.7663 | 0.0807 | 1304 | 139 | 4 | 415 | 12.1 | 554 | 16.1 | 692 | 20.2 | 969 | 28.2 | 1287 | 37.5 | |
| 1.75 | 2.4053 | 2.4097 | 0.0703 | 1497 | 121 | 3.5 | 362 | 10.5 | 482 | 14.1 | 603 | 17.6 | 844 | 24.6 | 1121 | 32.7 | |
| 1.625 | 2.0739 | 2.0778 | 0.0606 | 1736 | 104 | 3 | 312 | 9.1 | 416 | 12.1 | 520 | 15.2 | 728 | 21.2 | 967 | 28.2 | |
| 1.5 | 1.7671 | 1.7704 | 0.0516 | 2037 | 89 | 2.6 | 266 | 7.7 | 355 | 10.3 | 443 | 12.9 | 620 | 18.1 | 824 | 24 | |
| 32T-2M (T225M) | 1.75 | 2.4053 | 2.4097 | 0.0703 | 1497 | 121 | 3.5 | 362 | 10.5 | 482 | 14.1 | 603 | 17.6 | 844 | 24.6 | 1121 | 32.7 |
| 1.625 | 2.0739 | 2.0778 | 0.0606 | 1736 | 104 | 3 | 312 | 9.1 | 416 | 12.1 | 520 | 15.2 | 728 | 21.2 | 967 | 28.2 | |
| 1.5 | 1.7671 | 1.7704 | 0.0516 | 2037 | 89 | 2.6 | 266 | 7.7 | 355 | 10.3 | 443 | 12.9 | 620 | 18.1 | 824 | 24 | |
| 1.375 | 1.4849 | 1.4876 | 0.0434 | 2424 | 75 | 2.2 | 224 | 6.5 | 298 | 8.7 | 372 | 10.8 | 521 | 15.2 | 692 | 20.2 | |
| 1.25 | 1.2272 | 1.2295 | 0.0359 | 2565 | 62 | 1.8 | 185 | 5.4 | 246 | 7.2 | 308 | 9 | 431 | 12.6 | 572 | 16.7 | |
| 1.125 | 0.994 | 0.9959 | 0.029 | 2565 | 50 | 1.5 | 150 | 4.4 | 200 | 5.8 | 249 | 7.3 | 349 | 10.2 | 464 | 13.5 | |
| 32T-2H (T225H) | 1 | 0.7854 | 0.7869 | 0.0229 | 4584 | 40 | 1.1 | 119 | 3.4 | 158 | 4.6 | 197 | 5.7 | 276 | 8 | 366 | 10.7 |
| 0.875 | 0.6013 | 0.6024 | 0.0176 | 4600 | 31 | 0.9 | 91 | 2.6 | 121 | 3.5 | 151 | 4.4 | 211 | 6.1 | 281 | 8.2 | |
| 0.75 | 0.4418 | 0.4426 | 0.0129 | 4600 | 23 | 0.6 | 67 | 1.9 | 89 | 2.6 | 111 | 3.2 | 155 | 4.5 | 206 | 6 | |
| Brake Horsepower Required | 3.4 | 10.2 | 13.6 | 17 | 24 | 32 | |||||||||||
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
