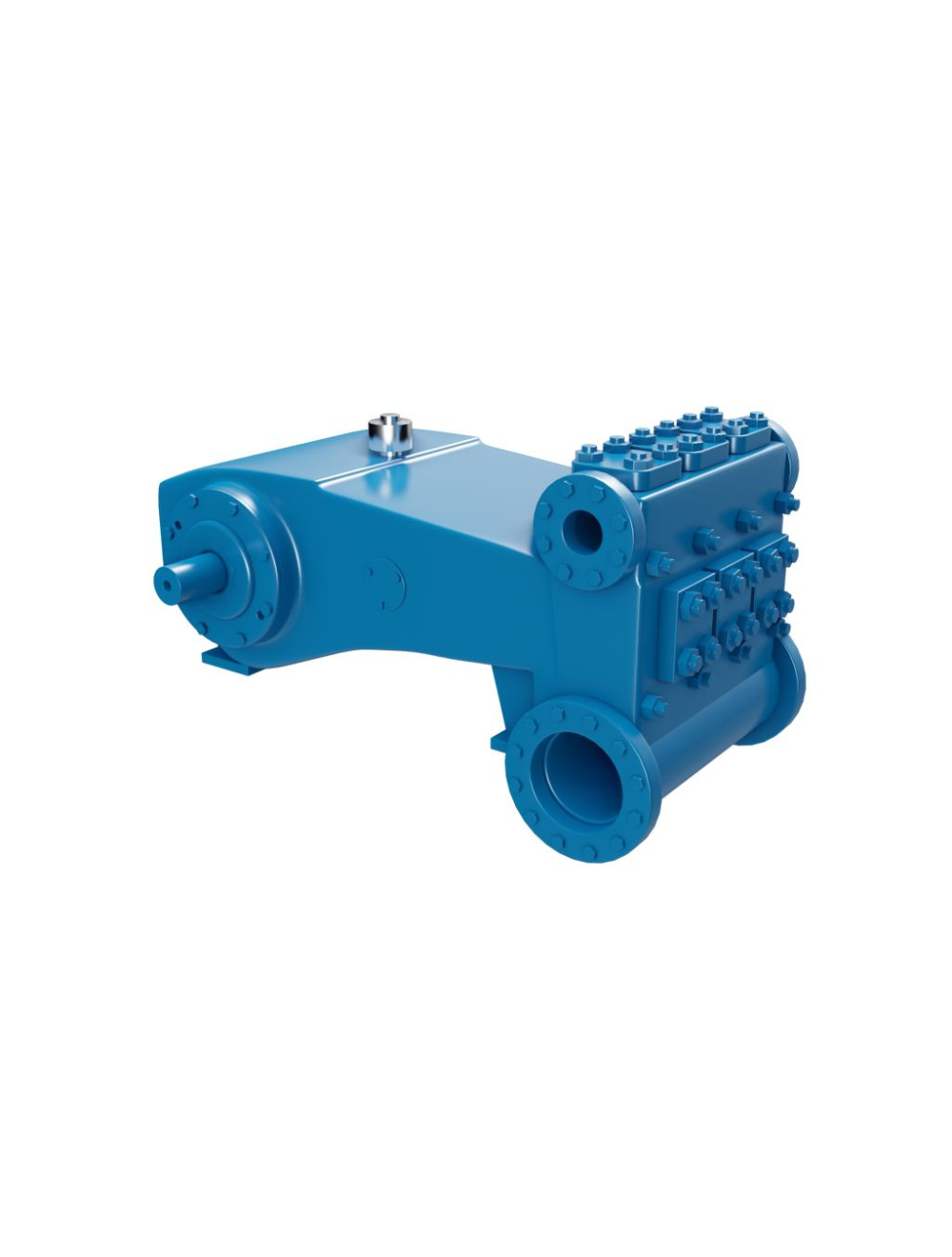

NOV 308T-7XL (Wheatley HP360XL)

The NOV 308T-7XL (Wheatley HP360-XL) is one of our continuous and intermittent-duty reciprocating pumps. The largest of the 308T series the 'XL' model comes with plunger sizes ranging from 4.500” to 5.750” the maximum displacement pressure for the NOV 308T-7XL (Wheatley HP360-XL) is between 747 psi (5151 kPA) and 5046 psi (8410 kPA) depending on plunger size.

This triplex pump will allow up to 636.7 GPM or 21832 BPD at peak performance. Operating in low-to-high pressure applications the NOV 308T-7XL (Wheatley HP360-XL) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 308T-7XL (Wheatley HP360-XL) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 265 RPM (Crankshaft speed) 308 (230)
Rated Plunger Load: pounds
(kg) 19400 (8800)
Maximum Discharge Pressure
psi (kPa) "XL" Model: 1220 (8410)
Oil Capacity
gallons (L) Crankcase: 19 (71.92)

Plunger Size Range

5.750"
5.500"
5.250"
5.000"
4.750"
4.500"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Duplex Stainless Steel
Cast Carbon Steel

Specification Datasheet

NOV 308T-7XL (Wheatley HP360XL)

PUMP	English Units					100 RPM		133 RPM		166 RPM		199 RPM		232 RPM		265 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
308T-7XL (HP360XL)	5.750	25.9672	82.382	2.4028	747	8239	240.3	10957	319.6	13676	398.9	16395	478.2	19113	557.5	21832	636.7
	5.500	23.7583	75.3741	2.1984	817	7538	219.8	10025	292.4	12513	364.9	15000	437.5	17487	510	19975	582.6
	5.250	21.6475	68.6776	2.0031	896	6868	200.3	9135	266.4	11401	332.5	13667	398.6	15934	464.7	18200	530.8
	5.000	19.6349	62.2926	1.8169	988	6230	181.7	8285	241.6	10341	301.6	12397	361.6	14452	421.5	16508	481.5
	4.750	17.7205	56.2191	1.6397	1095	5622	164	7478	218.1	9333	272.2	11188	326.3	13043	380.4	14899	434.5
	4.500	15.9043	50.457	1.4717	1220	5046	147.2	6711	195.7	8376	244.3	10041	292.9	11707	341.4	13372	390

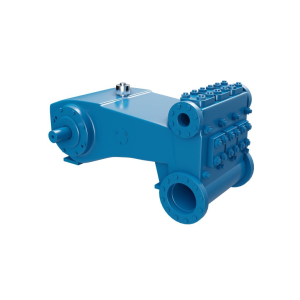

308T-7L (HP360AL)	4.250	14.1862	45.0064	1.3127	1368	4501	131.3	5986	174.6	7472	217.9	8957	261.2	10442	304.5	11927	347.9
	4.125	13.364	42.3979	1.2366	1452	4240	123.7	5639	164.5	7039	205.3	8438	246.1	9837	286.9	11236	327.7
	4.000	12.5664	39.8673	1.1628	1544	3987	116.3	5303	154.7	6618	193	7934	231.4	9250	269.8	10565	308.1
	3.875	11.7932	37.4145	1.0913	1645	3742	109.1	4977	145.1	6211	181.1	7446	217.2	8681	253.2	9915	289.2
	3.750	11.0447	35.0396	1.022	1757	3504	102.2	4661	135.9	5817	169.7	6973	203.4	8130	237.1	9286	270.8
	3.625	10.3206	32.7426	0.955	1880	3275	95.5	4355	127	5436	158.5	6516	190	7597	221.6	8677	253.1
	3.500	9.6211	30.5234	0.8903	2016	3053	89	4060	118.4	5067	147.8	6075	177.2	7082	206.5	8089	235.9
	3.375	8.9462	28.3821	0.8278	2169	2839	82.8	3775	110.1	4712	137.4	5649	164.7	6585	192.1	7522	219.4
308T-7M (HP360AM)	3.250	8.2958	26.3186	0.7676	2339	2632	76.8	3501	102.1	4369	127.4	5238	152.8	6106	178.1	6975	203.4
	3.125	7.6699	24.3331	0.7097	2529	2434	71	3237	94.4	4040	117.8	4843	141.2	5646	164.7	6449	188.1
	3.000	7.0686	22.4253	0.6541	2745	2243	65.4	2983	87	3723	108.6	4463	130.2	5203	151.7	5943	173.3
	2.875	6.4918	20.5955	0.6007	2988	2060	60.1	2740	79.9	3419	99.7	4099	119.5	4779	139.4	5458	159.2
	2.750	5.9396	18.8435	0.5496	3266	1885	55	2507	73.1	3129	91.2	3750	109.4	4372	127.5	4994	145.6
	2.500	4.9087	15.5732	0.4542	3600	1558	45.4	2072	60.4	2586	75.4	3100	90.4	3613	105.4	4127	120.4
	2.250	3.9761	12.6143	0.3679	3600	1262	36.8	1678	48.9	2094	61.1	2511	73.2	2927	85.4	3343	97.5
308T-7H (HP360H)	2.125	3.5466	11.2516	0.3282	5470	1126	32.8	1497	43.6	1868	54.5	2240	65.3	2611	76.1	2982	87
	2.000	3.1416	9.9668	0.2907	6170	997	29.1	1326	38.7	1655	48.3	1984	57.8	2313	67.4	2642	77
	1.875	2.7612	8.7599	0.2555	6170	876	25.5	1166	34	1455	42.4	1744	50.8	2033	59.3	2322	67.7
	1.750	2.4053	7.6308	0.2226	6170	764	22.3	1665	29.6	1267	36.9	1519	44.3	1771	51.6	2023	59
	Brake Horsepower Required					117		155		194		232		270		308

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 308T-7XL (Wheatley HP360XL) 4.500	Max GPM 390.00 Max BPD 13371.00 Max PSI 1220.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 4.500	390.00	13371.00	1220.00
NOV 308T-7XL (Wheatley HP360XL) 4.750	Max GPM 434.50 Max BPD 14880.00 Max PSI 1095.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 4.750	434.50	14880.00	1095.00
NOV 308T-7XL (Wheatley HP360XL) 5.000	Max GPM 481.50 Max BPD 16508.00 Max PSI 988.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 5.000	481.50	16508.00	988.00
NOV 308T-7XL (Wheatley HP360XL) 5.250	Max GPM 530.80 Max BPD 18198.00 Max PSI 896.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 5.250	530.80	18198.00	896.00
NOV 308T-7XL (Wheatley HP360XL) 5.500	Max GPM 582.60 Max BPD 19974.00 Max PSI 817.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 5.500	582.60	19974.00	817.00
NOV 308T-7XL (Wheatley HP360XL) 5.750	Max GPM 636.70 Max BPD 21829.00 Max PSI 747.00 Out of stock 0 See more NOV 308T-7XL (Wheatley HP360XL) 5.750	636.70	21829.00	747.00
