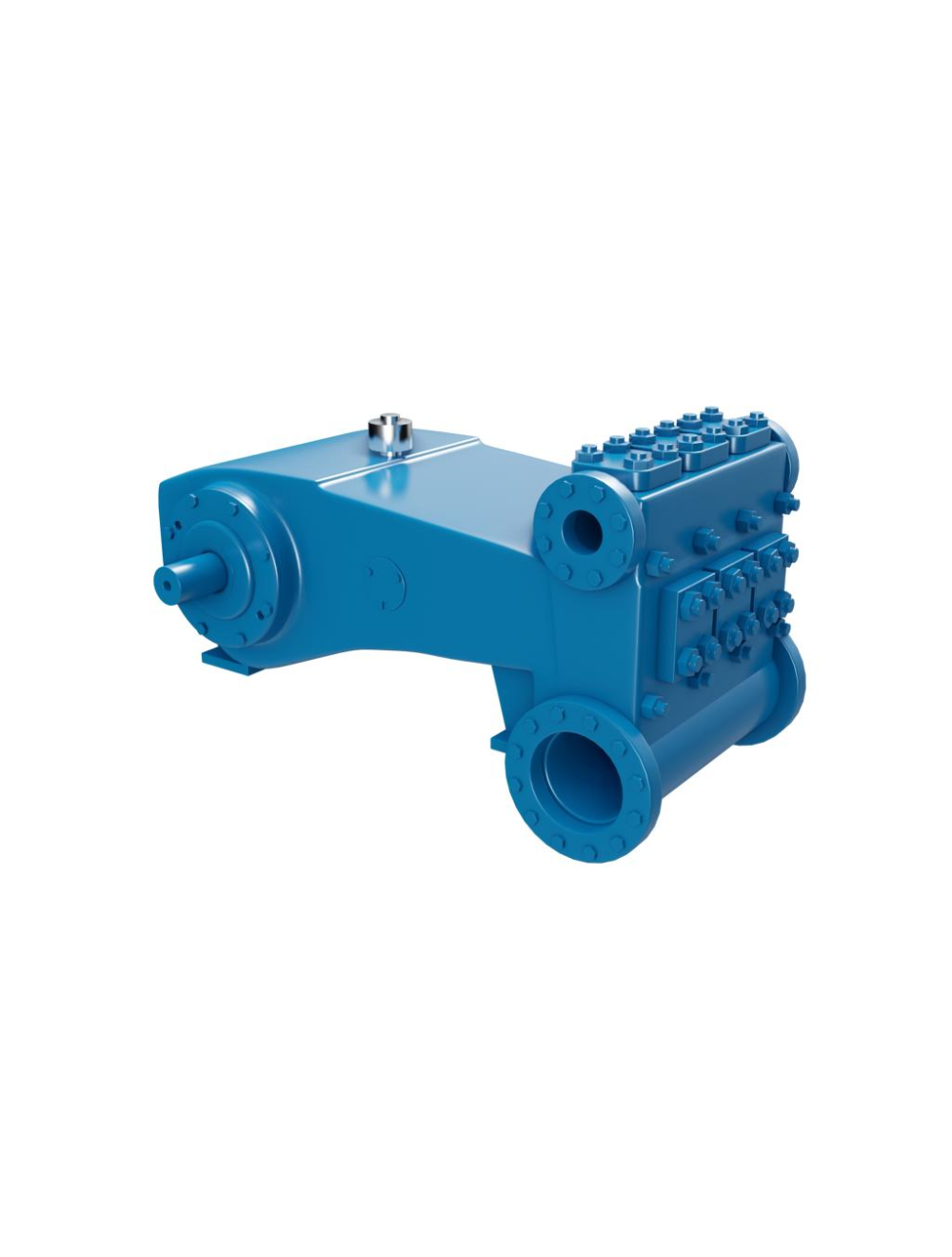

NOV 308T-7L (Wheatley HP360AL)
The NOV 308T-7L (Wheatley HP360-AL) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 3.375” to 4.250” the maximum displacement pressure for the NOV 308T-7L (Wheatley HP360-AL) is between 1368 psi (9429 kPA) and 2169 psi (14952 kPA) depending on plunger size.
This triplex pump will allow up to 347.9 GPM or 11927 BPD at peak performance. Operating in low-to-high pressure applications the NOV 308T-7L (Wheatley HP360-AL) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 308T-7L (Wheatley HP360-AL) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 265 RPM (Crankshaft speed) 308 (230)
- Rated Plunger Load: pounds
(kg) 19400 (8800) - Maximum Discharge Pressure
psi (kPa) "L" Model: 2169 (14952) - Oil Capacity
gallons (L) Crankcase: 19 (71.92)
- Plunger Size Range
- 4.250"
- 4.125"
- 4.000"
- 3.875"
- 3.750"
- 3.625"
- 3.500"
- 3.375"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Duplex Stainless Steel
- Cast Nickel-Aluminum-Bronze
- Billet / Forged Carbon Steel
- Specification Datasheet
| PUMP | English Units | 100 RPM | 133 RPM | 166 RPM | 199 RPM | 232 RPM | 265 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 308T-7XL (HP360XL) | 5.750 | 25.9672 | 82.382 | 2.4028 | 747 | 8239 | 240.3 | 10957 | 319.6 | 13676 | 398.9 | 16395 | 478.2 | 19113 | 557.5 | 21832 | 636.7 |
| 5.500 | 23.7583 | 75.3741 | 2.1984 | 817 | 7538 | 219.8 | 10025 | 292.4 | 12513 | 364.9 | 15000 | 437.5 | 17487 | 510 | 19975 | 582.6 | |
| 5.250 | 21.6475 | 68.6776 | 2.0031 | 896 | 6868 | 200.3 | 9135 | 266.4 | 11401 | 332.5 | 13667 | 398.6 | 15934 | 464.7 | 18200 | 530.8 | |
| 5.000 | 19.6349 | 62.2926 | 1.8169 | 988 | 6230 | 181.7 | 8285 | 241.6 | 10341 | 301.6 | 12397 | 361.6 | 14452 | 421.5 | 16508 | 481.5 | |
| 4.750 | 17.7205 | 56.2191 | 1.6397 | 1095 | 5622 | 164 | 7478 | 218.1 | 9333 | 272.2 | 11188 | 326.3 | 13043 | 380.4 | 14899 | 434.5 | |
| 4.500 | 15.9043 | 50.457 | 1.4717 | 1220 | 5046 | 147.2 | 6711 | 195.7 | 8376 | 244.3 | 10041 | 292.9 | 11707 | 341.4 | 13372 | 390 | |
| 308T-7L (HP360AL) | 4.250 | 14.1862 | 45.0064 | 1.3127 | 1368 | 4501 | 131.3 | 5986 | 174.6 | 7472 | 217.9 | 8957 | 261.2 | 10442 | 304.5 | 11927 | 347.9 |
| 4.125 | 13.364 | 42.3979 | 1.2366 | 1452 | 4240 | 123.7 | 5639 | 164.5 | 7039 | 205.3 | 8438 | 246.1 | 9837 | 286.9 | 11236 | 327.7 | |
| 4.000 | 12.5664 | 39.8673 | 1.1628 | 1544 | 3987 | 116.3 | 5303 | 154.7 | 6618 | 193 | 7934 | 231.4 | 9250 | 269.8 | 10565 | 308.1 | |
| 3.875 | 11.7932 | 37.4145 | 1.0913 | 1645 | 3742 | 109.1 | 4977 | 145.1 | 6211 | 181.1 | 7446 | 217.2 | 8681 | 253.2 | 9915 | 289.2 | |
| 3.750 | 11.0447 | 35.0396 | 1.022 | 1757 | 3504 | 102.2 | 4661 | 135.9 | 5817 | 169.7 | 6973 | 203.4 | 8130 | 237.1 | 9286 | 270.8 | |
| 3.625 | 10.3206 | 32.7426 | 0.955 | 1880 | 3275 | 95.5 | 4355 | 127 | 5436 | 158.5 | 6516 | 190 | 7597 | 221.6 | 8677 | 253.1 | |
| 3.500 | 9.6211 | 30.5234 | 0.8903 | 2016 | 3053 | 89 | 4060 | 118.4 | 5067 | 147.8 | 6075 | 177.2 | 7082 | 206.5 | 8089 | 235.9 | |
| 3.375 | 8.9462 | 28.3821 | 0.8278 | 2169 | 2839 | 82.8 | 3775 | 110.1 | 4712 | 137.4 | 5649 | 164.7 | 6585 | 192.1 | 7522 | 219.4 | |
| 308T-7M (HP360AM) | 3.250 | 8.2958 | 26.3186 | 0.7676 | 2339 | 2632 | 76.8 | 3501 | 102.1 | 4369 | 127.4 | 5238 | 152.8 | 6106 | 178.1 | 6975 | 203.4 |
| 3.125 | 7.6699 | 24.3331 | 0.7097 | 2529 | 2434 | 71 | 3237 | 94.4 | 4040 | 117.8 | 4843 | 141.2 | 5646 | 164.7 | 6449 | 188.1 | |
| 3.000 | 7.0686 | 22.4253 | 0.6541 | 2745 | 2243 | 65.4 | 2983 | 87 | 3723 | 108.6 | 4463 | 130.2 | 5203 | 151.7 | 5943 | 173.3 | |
| 2.875 | 6.4918 | 20.5955 | 0.6007 | 2988 | 2060 | 60.1 | 2740 | 79.9 | 3419 | 99.7 | 4099 | 119.5 | 4779 | 139.4 | 5458 | 159.2 | |
| 2.750 | 5.9396 | 18.8435 | 0.5496 | 3266 | 1885 | 55 | 2507 | 73.1 | 3129 | 91.2 | 3750 | 109.4 | 4372 | 127.5 | 4994 | 145.6 | |
| 2.500 | 4.9087 | 15.5732 | 0.4542 | 3600 | 1558 | 45.4 | 2072 | 60.4 | 2586 | 75.4 | 3100 | 90.4 | 3613 | 105.4 | 4127 | 120.4 | |
| 2.250 | 3.9761 | 12.6143 | 0.3679 | 3600 | 1262 | 36.8 | 1678 | 48.9 | 2094 | 61.1 | 2511 | 73.2 | 2927 | 85.4 | 3343 | 97.5 | |
| 308T-7H (HP360H) | 2.125 | 3.5466 | 11.2516 | 0.3282 | 5470 | 1126 | 32.8 | 1497 | 43.6 | 1868 | 54.5 | 2240 | 65.3 | 2611 | 76.1 | 2982 | 87 |
| 2.000 | 3.1416 | 9.9668 | 0.2907 | 6170 | 997 | 29.1 | 1326 | 38.7 | 1655 | 48.3 | 1984 | 57.8 | 2313 | 67.4 | 2642 | 77 | |
| 1.875 | 2.7612 | 8.7599 | 0.2555 | 6170 | 876 | 25.5 | 1166 | 34 | 1455 | 42.4 | 1744 | 50.8 | 2033 | 59.3 | 2322 | 67.7 | |
| 1.750 | 2.4053 | 7.6308 | 0.2226 | 6170 | 764 | 22.3 | 1665 | 29.6 | 1267 | 36.9 | 1519 | 44.3 | 1771 | 51.6 | 2023 | 59 | |
| Brake Horsepower Required | 117 | 155 | 194 | 232 | 270 | 308 | |||||||||||
