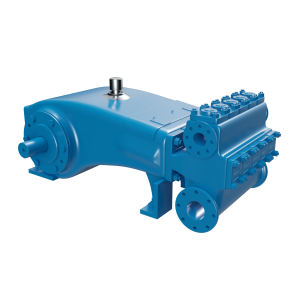

NOV 217Q-4M (Wheatley HP200AM)

The NOV 217Q-4M (Wheatley HP200-AM) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.625” to 2.500” the maximum displacement pressure for the NOV 217Q-4M (Wheatley HP200-AM) is between 1793 psi (12360 kPA) and 3600 psi (24821 kPA) depending on plunger size.

This triplex pump will allow up to 186.5 GPM or 6394 BPD at peak performance. Operating in low-to-high pressure applications the NOV 217Q-4M (Wheatley HP200-AM) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 217Q-4M (Wheatley HP200-AM) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 390 RPM (Crankshaft speed) 217 (162)
Rated Plunger Load: pounds
(kg) 8800 (3992)
Maximum Discharge Pressure
psi (kPa) "M" Model: 3600 (24821)
Oil Capacity
gallons (L) Crankcase: 7 (26.5)

Plunger Size Range

2.500"
2.375"
2.250"
2.125"
2.000"
1.875"
1.750"
1.625"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Nickel Aluminum-Bronze
Cast Duplex Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 217Q-4M (Wheatley HP200AM)

PUMP	English Units					100 RPM		150 RPM		200 RPM		250 RPM		300 RPM		390 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
217Q-4L (HP200AL)	3.375	8.9462	29.8759	0.8714	984	2988	87.1	4482	130.7	5976	174.3	7469	217.8	8963	261.4	11652	339.8
	3.25	8.2958	27.7038	0.808	1061	2771	80.8	4156	121.2	5541	161.6	6926	202	8312	242.4	10805	315.1
	3.125	7.6699	25.6137	0.7471	1147	2562	74.7	3843	112.1	5123	149.4	6404	186.8	7685	224.1	9990	291.4
	3.000	7.0686	23.6056	0.6885	1245	2361	68.8	3541	103.3	4722	137.7	5902	172.1	7082	206.5	9207	268.5
	2.875	6.4918	21.6795	0.6323	1356	2168	63.2	3252	94.8	4336	126.5	5420	158.1	6504	189.7	8455	246.6
	2.750	5.9396	19.8353	0.5785	1440	1984	57.9	2976	86.8	3968	115.7	4959	144.6	5951	173.6	7736	225.6
	2.625	5.4119	18.0731	0.5271	1440	1808	52.7	2711	79.1	3615	105.4	4519	131.8	5422	158.1	7049	205.6
217Q-4M (HP200AM)	2.500	4.9087	16.3928	0.4781	1793	1640	47.8	2459	71.7	3279	95.6	4099	119.5	4918	143.4	6394	186.5
	2.375	4.4301	14.7945	0.4315	1986	1480	43.2	2220	64.7	2959	86.3	3699	107.9	4439	129.5	5770	168.3
	2.250	3.9761	13.2782	0.3873	2213	1328	38.7	1992	58.1	2656	77.5	3320	96.8	3984	116.2	5179	151
	2.125	3.5466	11.8438	0.3454	2481	1185	34.5	1777	51.8	2369	69.1	2961	86.4	3554	103.6	4620	134.7
	2.000	3.1416	10.4914	0.306	2801	1050	30.6	1574	45.9	2099	61.2	2623	76.5	3148	91.8	4092	119.3
	1.875	2.7612	9.2209	0.2689	3187	923	26.9	1384	40.3	1845	53.8	2306	67.2	2767	80.7	3597	104.9
	1.750	2.4053	8.0325	0.2343	3600	804	23.4	1205	35.1	1607	46.9	2009	58.6	2410	70.3	3133	91.4
217Q-4H (HP200MS)	1.625	2.0739	6.926	0.202	4243	693	20.2	1039	30.3	1386	40.4	1732	50.5	2078	60.6	2702	78.8
	1.500	1.7671	5.9014	0.1721	4980	591	17.2	886	25.8	1181	34.4	1476	43	1771	51.6	2302	67.1
	1.375	1.4849	4.9588	0.1446	5926	496	14.5	744	21.7	992	28.9	1240	36.2	1488	43.4	1934	56.4
	1.250	1.2272	4.0982	0.1195	6000	410	12	615	17.9	820	23.9	1025	29.9	1230	35.9	1599	46.6
	Brake Horsepower Required					56		84		112		139		167		217

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 217Q-4M (Wheatley HP200AM) 1.750	Max GPM 91.40 Max BPD 3133.00 Max PSI 3600.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 1.750	91.40	3133.00	3600.00
NOV 217Q-4M (Wheatley HP200AM) 1.875	Max GPM 104.90 Max BPD 3596.00 Max PSI 3187.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 1.875	104.90	3596.00	3187.00
NOV 217Q-4M (Wheatley HP200AM) 2.000	Max GPM 119.30 Max BPD 4090.00 Max PSI 2801.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 2.000	119.30	4090.00	2801.00
NOV 217Q-4M (Wheatley HP200AM) 2.125	Max GPM 134.70 Max BPD 4618.00 Max PSI 2481.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 2.125	134.70	4618.00	2481.00
NOV 217Q-4M (Wheatley HP200AM) 2.250	Max GPM 151.00 Max BPD 5177.00 Max PSI 2213.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 2.250	151.00	5177.00	2213.00
NOV 217Q-4M (Wheatley HP200AM) 2.375	Max GPM 168.30 Max BPD 5770.00 Max PSI 1986.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 2.375	168.30	5770.00	1986.00
NOV 217Q-4M (Wheatley HP200AM) 2.500	Max GPM 186.50 Max BPD 6394.00 Max PSI 1793.00 Out of stock 0 See more NOV 217Q-4M (Wheatley HP200AM) 2.500	186.50	6394.00	1793.00
