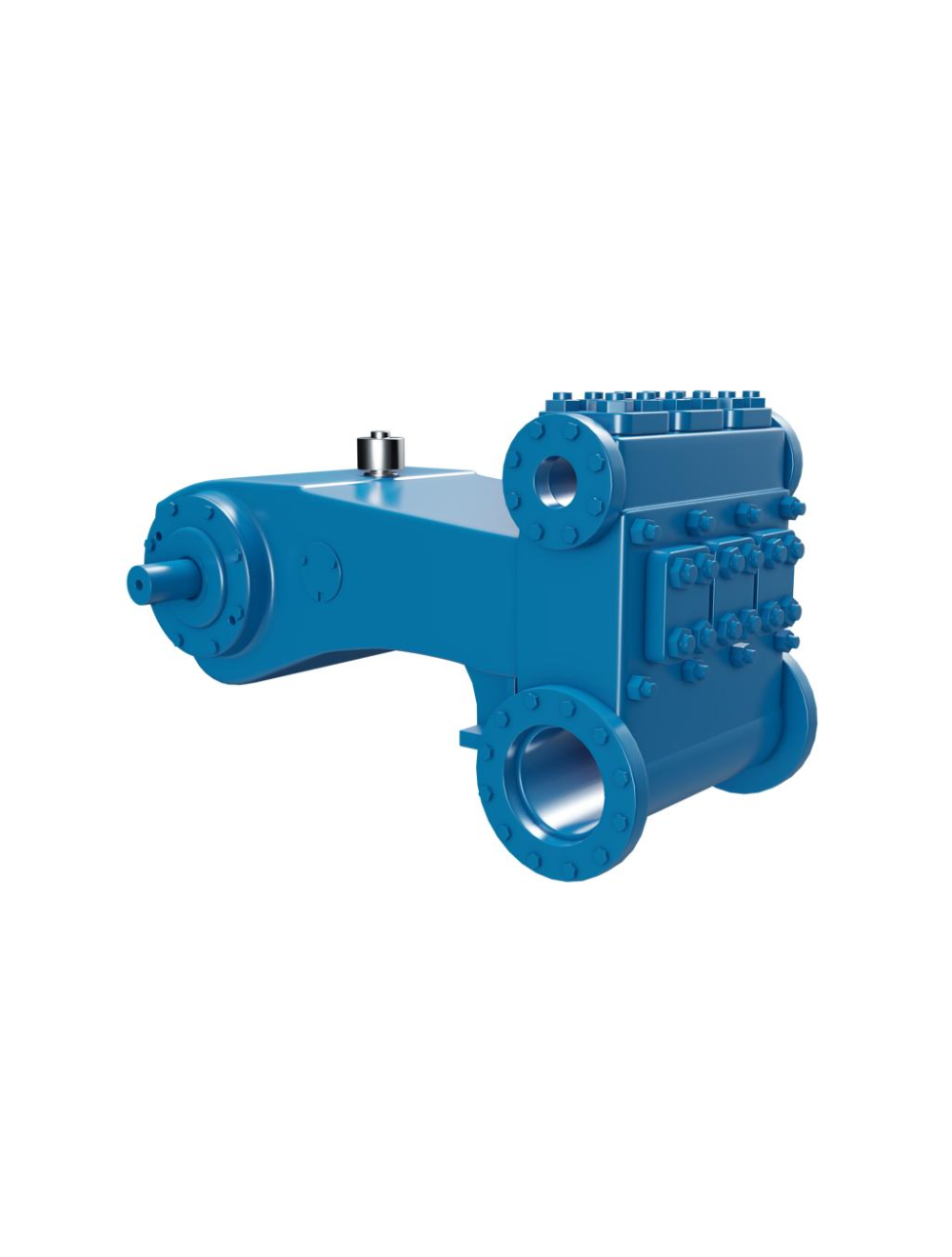

NOV 184T-7XL (Wheatley HP250XL)
The NOV 184T-4XL (Wheatley HP250XL) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 184T-4XL (Wheatley HP250XL) is offered in plunger sizes ranging from 4.500” to 5.750”. Maximum displacement pressure for the NOV 184T-4XL (Wheatley HP250XL) is between 446 psi (3075 kPA) and 728 psi (5020 kPA) depending on plunger size.
The NOV 184T-4XL (Wheatley HP250XL) will pump up to 636.7 GPM or 21832 BPD at peak performance. Operating in low-to-high pressure applications the NOV 184T-4XL (Wheatley HP250XL) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 184T-4XL (Wheatley HP250XL) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 265 RPM (Crankshaft speed) 184 (137)
- Rated Plunger Load: pounds
(kg) 11580 (5253) - Maximum Discharge Pressure
psi (kPa) "XL" Model: 4900 (2223) - Oil Capacity
gallons (L) Crankcase: 17 (64.35)
- Plunger Size Range
- 5.570"
- 5.500"
- 5.125"
- 5.000"
- 4.750"
- 4.500"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Duplex Stainless Steel
- Cast Carbon Steel
- Specification Datasheet
| PUMP | English Units | 100 RPM | 150 RPM | 175 RPM | 200 RPM | 225 RPM | 265 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 184T-7XL (HP250XL) | 5.75 | 25.9672 | 82.382 | 2.4028 | 446 | 8239 | 240.3 | 12358 | 360.4 | 14417 | 420.5 | 16477 | 480.6 | 18536 | 540.6 | 21832 | 636.7 |
| 5.5 | 23.7583 | 75.3741 | 2.1984 | 487 | 7538 | 219.8 | 11307 | 329.8 | 13191 | 384.7 | 15075 | 439.7 | 16960 | 494.6 | 19975 | 582.6 | |
| 5.375 | 22.6906 | 71.9869 | 2.0996 | 510 | 7199 | 210 | 10799 | 314.9 | 12598 | 367.4 | 14398 | 419.9 | 16198 | 472.4 | 19077 | 556.4 | |
| 5.25 | 21.6475 | 68.6776 | 2.0031 | 535 | 6868 | 200.3 | 10302 | 300.5 | 12019 | 350.5 | 13736 | 400.6 | 15453 | 450.7 | 18200 | 530.8 | |
| 5 | 19.6349 | 62.2926 | 1.8169 | 590 | 6230 | 181.7 | 9344 | 272.5 | 10902 | 318 | 12459 | 363.4 | 14016 | 408.8 | 16508 | 481.5 | |
| 4.75 | 17.7205 | 56.2191 | 1.6397 | 653 | 5622 | 164 | 8433 | 246 | 9839 | 287 | 11244 | 327.9 | 12650 | 368.9 | 14899 | 434.5 | |
| 4.5 | 15.9043 | 50.457 | 1.4717 | 728 | 5046 | 147.2 | 7569 | 220.7 | 8830 | 257.5 | 10092 | 294.3 | 11353 | 331.1 | 13372 | 390 | |
| 184T-7L (HP250BL) | 4.25 | 14.1862 | 45.0064 | 1.3127 | 816 | 4501 | 131.3 | 6751 | 196.9 | 7877 | 229.7 | 9002 | 262.5 | 10127 | 295.4 | 11927 | 347.9 |
| 4 | 12.5664 | 39.8673 | 1.1628 | 922 | 3987 | 116.3 | 5981 | 174.4 | 6977 | 203.5 | 7974 | 232.6 | 8971 | 261.6 | 10565 | 308.1 | |
| 3.75 | 11.0447 | 35.0396 | 1.022 | 1048 | 3504 | 102.2 | 5256 | 153.3 | 6132 | 178.8 | 7008 | 204.4 | 7884 | 229.9 | 9286 | 270.8 | |
| 3.5 | 9.6211 | 30.5234 | 0.8903 | 1204 | 3053 | 89 | 4579 | 133.5 | 5342 | 155.8 | 6105 | 178.1 | 6868 | 200.3 | 8089 | 235.9 | |
| 184T-7M (HP250BM) | 3.25 | 8.2958 | 26.3186 | 0.7676 | 1396 | 2632 | 76.8 | 3948 | 115.1 | 4606 | 134.3 | 5264 | 153.5 | 5922 | 172.7 | 6975 | 203.4 |
| 3.125 | 7.6699 | 24.3331 | 0.7097 | 1510 | 2434 | 71 | 3650 | 106.5 | 4259 | 124.2 | 4867 | 141.9 | 5475 | 159.7 | 6449 | 188.1 | |
| 3 | 7.0686 | 22.4253 | 0.6541 | 1638 | 2243 | 65.4 | 3364 | 98.1 | 3925 | 114.5 | 4486 | 130.8 | 5046 | 147.2 | 5943 | 173.3 | |
| 2.875 | 6.4918 | 20.5955 | 0.6007 | 1784 | 2060 | 60.1 | 3090 | 90.1 | 3605 | 105.1 | 4120 | 120.1 | 4634 | 135.2 | 5458 | 159.2 | |
| 2.75 | 5.9396 | 18.8435 | 0.5496 | 1950 | 1885 | 55 | 2827 | 82.4 | 3298 | 96.2 | 3769 | 109.9 | 4240 | 123.7 | 4994 | 145.6 | |
| 2.625 | 5.4119 | 17.1694 | 0.5008 | 2140 | 1717 | 50.1 | 2576 | 75.1 | 3005 | 87.6 | 3434 | 100.2 | 3864 | 112.7 | 4550 | 132.7 | |
| 2.5 | 4.9087 | 15.5732 | 0.4542 | 2359 | 1558 | 45.4 | 2336 | 68.1 | 2726 | 79.5 | 3115 | 90.8 | 3504 | 102.2 | 4127 | 120.4 | |
| 2.375 | 4.4301 | 14.0548 | 0.4099 | 2614 | 1406 | 41 | 2109 | 61.5 | 2460 | 71.7 | 2811 | 82 | 3163 | 92.2 | 3725 | 108.6 | |
| 2.25 | 3.9761 | 12.6143 | 0.3679 | 2912 | 1262 | 36.8 | 1893 | 55.2 | 2208 | 64.4 | 2523 | 73.6 | 2839 | 82.8 | 3343 | 97.5 | |
| 184T-7H (HP250BH) | 2.125 | 3.5466 | 11.2516 | 0.3282 | 3265 | 1126 | 32.8 | 3067 | 49.2 | 1970 | 57.4 | 2251 | 65.6 | 2532 | 73.8 | 2982 | 87 |
| 2 | 3.1416 | 9.9668 | 0.2907 | 3686 | 997 | 29.1 | 2717 | 43.6 | 1745 | 50.9 | 1994 | 58.1 | 2243 | 65.4 | 2642 | 77 | |
| 1.875 | 2.7612 | 8.7599 | 0.2555 | 4194 | 876 | 25.5 | 2388 | 38.3 | 1533 | 44.7 | 1752 | 51.1 | 1971 | 57.5 | 2322 | 67.7 | |
| 1.75 | 2.4053 | 7.6308 | 0.2226 | 4814 | 764 | 22.3 | 2293 | 33.4 | 1336 | 38.9 | 1527 | 44.5 | 1717 | 50.1 | 2023 | 59 | |
| 1.625 | 2.0739 | 6.5797 | 0.1919 | 5584 | 658 | 19.2 | 1977 | 28.8 | 1152 | 33.6 | 1316 | 38.4 | 1481 | 43.2 | 1744 | 50.9 | |
| 1.5 | 1.7671 | 5.6063 | 0.1635 | 6000 | 561 | 16.4 | 1685 | 24.5 | 982 | 28.6 | 1122 | 32.7 | 1262 | 36.8 | 1486 | 43.3 | |
| Brake Horsepower Required | 70 | 105 | 122 | 139 | 157 | 184 | |||||||||||
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
