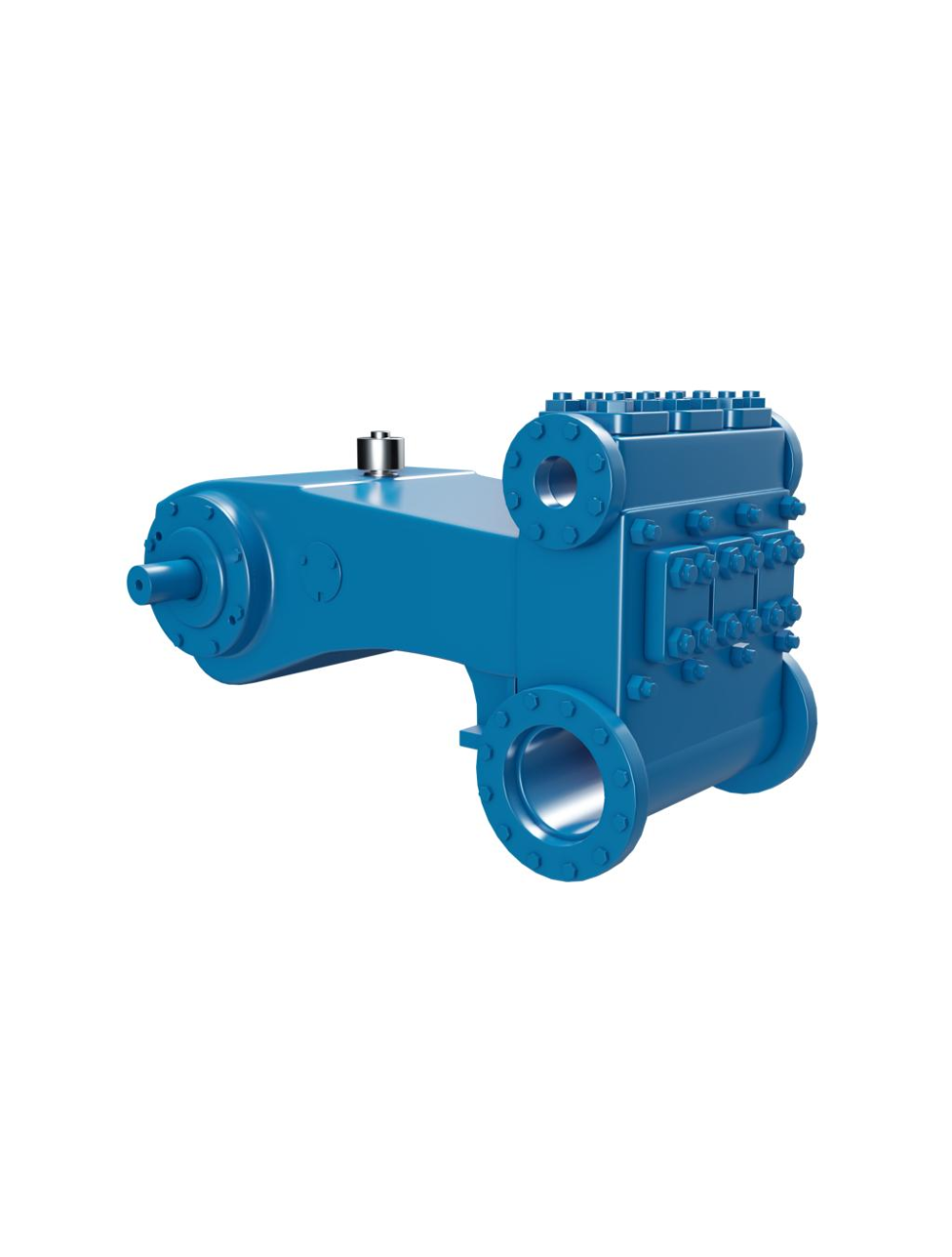

NOV 184T-7L (Wheatley HP250BL)
The NOV 184T-4L (Wheatley HP250BL) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 184T-4L (Wheatley HP250BL) is offered in plunger sizes ranging from 3.000” to 4.250”. Maximum displacement pressure for the NOV 184T-4L (Wheatley HP250BL) is between 816 psi (5628 kPA) and 1638 psi (12299 kPA) depending on plunger size.
The NOV 184T-4L (Wheatley HP250BL) will pump up to 347.9 GPM or 11927 BPD at peak performance. Operating in low-to-high pressure applications the NOV 184T-4L (Wheatley HP250BL) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 184T-4L (Wheatley HP250BL) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 265 RPM (Crankshaft speed) 184 (137)
- Rated Plunger Load: pounds
(kg) 11580 (5253) - Maximum Discharge Pressure
psi (kPa) "L" Model: 4600 (2087) - Oil Capacity
gallons (L) Crankcase: 17 (64.35)
- Plunger Size Range
- 4.250"
- 4.125"
- 4.000"
- 3.875"
- 3.750"
- 3.625"
- 3.500"
- 3.375"
- 3.250"
- 3.125"
- 3.000"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Nickel-Aluminum-Bronze
- Forged/Plate Carbon Steel
- Specification Datasheet
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
