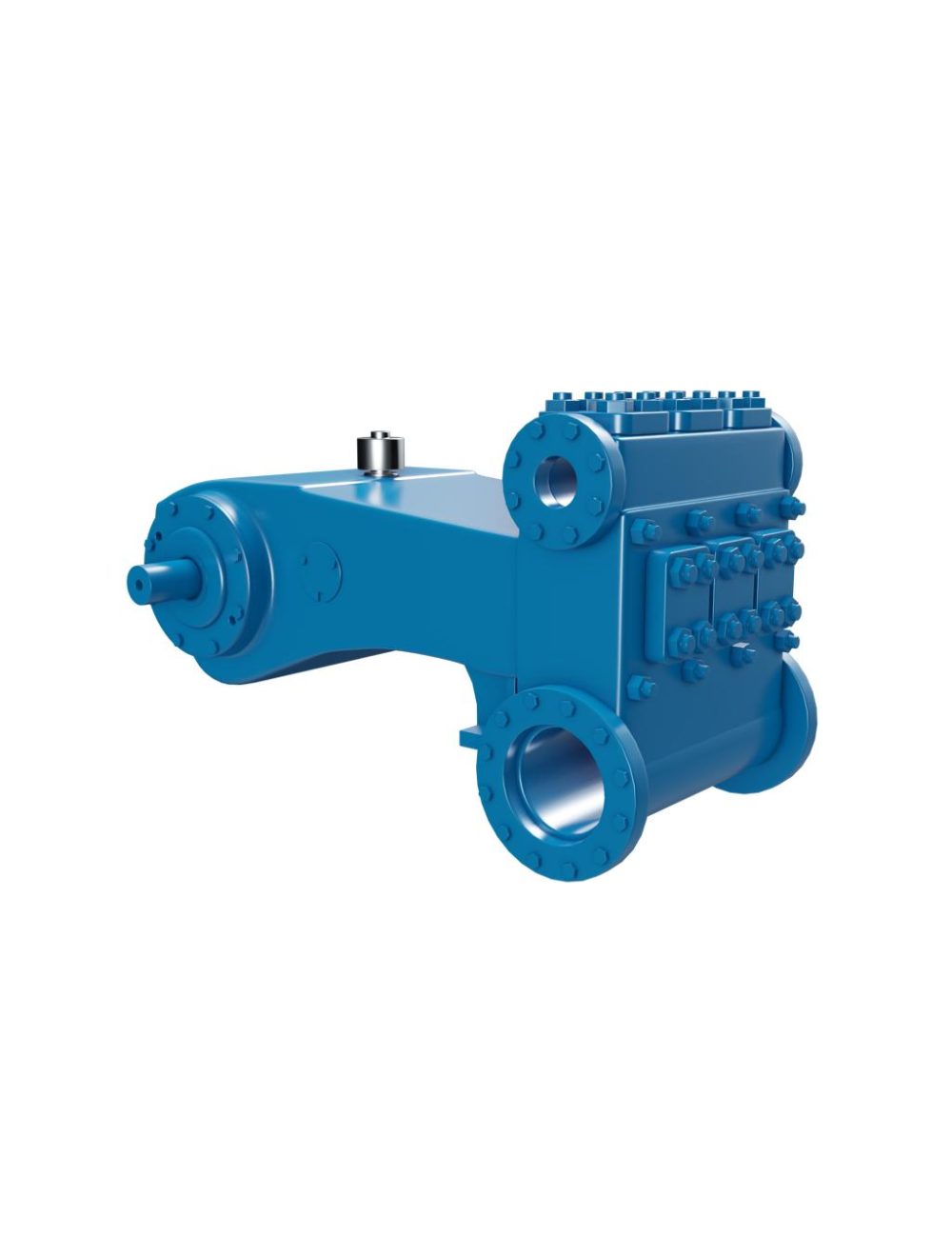

NOV 184T-7H (Wheatley HP250BH)

The NOV 184T-4H (Wheatley HP250BH) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 184T-4H (Wheatley HP250BH) is offered in plunger sizes ranging from 1.625” to 2.000”. Maximum displacement pressure for the NOV 184T-4H (Wheatley HP250BH) is between 3686 psi (25414 kPA) and 5584 psi (38498 kPA) depending on plunger size.

The NOV 184T-4H (Wheatley HP250BH) will pump up to 77.0 GPM or 2642 BPD at peak performance. Operating in low-to-high pressure applications the NOV 184T-4H (Wheatley HP250BH) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 184T-4H (Wheatley HP250BH) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 265 RPM (Crankshaft speed) 184 (137)
Rated Plunger Load: pounds
(kg) 11580 (5253)
Maximum Discharge Pressure
psi (kPa) "H" Model: 3800 (1724)
Oil Capacity
gallons (L) Crankcase: 17 (64.35)

Plunger Size Range

2.000"
1.875"
1.750"
1.625"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Forged 15-5 Stainless Steel

Specification Datasheet

NOV 184T-7H (Wheatley HP250BH)

PUMP	English Units					100 RPM		150 RPM		175 RPM		200 RPM		225 RPM		265 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
184T-7XL (HP250XL)	5.75	25.9672	82.382	2.4028	446	8239	240.3	12358	360.4	14417	420.5	16477	480.6	18536	540.6	21832	636.7
	5.5	23.7583	75.3741	2.1984	487	7538	219.8	11307	329.8	13191	384.7	15075	439.7	16960	494.6	19975	582.6
	5.375	22.6906	71.9869	2.0996	510	7199	210	10799	314.9	12598	367.4	14398	419.9	16198	472.4	19077	556.4
	5.25	21.6475	68.6776	2.0031	535	6868	200.3	10302	300.5	12019	350.5	13736	400.6	15453	450.7	18200	530.8
	5	19.6349	62.2926	1.8169	590	6230	181.7	9344	272.5	10902	318	12459	363.4	14016	408.8	16508	481.5
	4.75	17.7205	56.2191	1.6397	653	5622	164	8433	246	9839	287	11244	327.9	12650	368.9	14899	434.5
	4.5	15.9043	50.457	1.4717	728	5046	147.2	7569	220.7	8830	257.5	10092	294.3	11353	331.1	13372	390
184T-7L (HP250BL)	4.25	14.1862	45.0064	1.3127	816	4501	131.3	6751	196.9	7877	229.7	9002	262.5	10127	295.4	11927	347.9
	4	12.5664	39.8673	1.1628	922	3987	116.3	5981	174.4	6977	203.5	7974	232.6	8971	261.6	10565	308.1
	3.75	11.0447	35.0396	1.022	1048	3504	102.2	5256	153.3	6132	178.8	7008	204.4	7884	229.9	9286	270.8
	3.5	9.6211	30.5234	0.8903	1204	3053	89	4579	133.5	5342	155.8	6105	178.1	6868	200.3	8089	235.9
184T-7M (HP250BM)	3.25	8.2958	26.3186	0.7676	1396	2632	76.8	3948	115.1	4606	134.3	5264	153.5	5922	172.7	6975	203.4
	3.125	7.6699	24.3331	0.7097	1510	2434	71	3650	106.5	4259	124.2	4867	141.9	5475	159.7	6449	188.1
	3	7.0686	22.4253	0.6541	1638	2243	65.4	3364	98.1	3925	114.5	4486	130.8	5046	147.2	5943	173.3
	2.875	6.4918	20.5955	0.6007	1784	2060	60.1	3090	90.1	3605	105.1	4120	120.1	4634	135.2	5458	159.2
	2.75	5.9396	18.8435	0.5496	1950	1885	55	2827	82.4	3298	96.2	3769	109.9	4240	123.7	4994	145.6
	2.625	5.4119	17.1694	0.5008	2140	1717	50.1	2576	75.1	3005	87.6	3434	100.2	3864	112.7	4550	132.7
	2.5	4.9087	15.5732	0.4542	2359	1558	45.4	2336	68.1	2726	79.5	3115	90.8	3504	102.2	4127	120.4
	2.375	4.4301	14.0548	0.4099	2614	1406	41	2109	61.5	2460	71.7	2811	82	3163	92.2	3725	108.6
	2.25	3.9761	12.6143	0.3679	2912	1262	36.8	1893	55.2	2208	64.4	2523	73.6	2839	82.8	3343	97.5
184T-7H (HP250BH)	2.125	3.5466	11.2516	0.3282	3265	1126	32.8	3067	49.2	1970	57.4	2251	65.6	2532	73.8	2982	87
	2	3.1416	9.9668	0.2907	3686	997	29.1	2717	43.6	1745	50.9	1994	58.1	2243	65.4	2642	77
	1.875	2.7612	8.7599	0.2555	4194	876	25.5	2388	38.3	1533	44.7	1752	51.1	1971	57.5	2322	67.7
	1.75	2.4053	7.6308	0.2226	4814	764	22.3	2293	33.4	1336	38.9	1527	44.5	1717	50.1	2023	59
	1.625	2.0739	6.5797	0.1919	5584	658	19.2	1977	28.8	1152	33.6	1316	38.4	1481	43.2	1744	50.9
	1.5	1.7671	5.6063	0.1635	6000	561	16.4	1685	24.5	982	28.6	1122	32.7	1262	36.8	1486	43.3
	Brake Horsepower Required					70		105		122		139		157		184

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 184T-7H (Wheatley HP250BH) 1.500	Max GPM 43.30 Max BPD 1484.00 Max PSI 6000.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 1.500	43.30	1484.00	6000.00
NOV 184T-7H (Wheatley HP250BH) 1.625	Max GPM 50.90 Max BPD 1745.00 Max PSI 5584.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 1.625	50.90	1745.00	5584.00
NOV 184T-7H (Wheatley HP250BH) 1.750	Max GPM 59.00 Max BPD 2022.00 Max PSI 4814.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 1.750	59.00	2022.00	4814.00
NOV 184T-7H (Wheatley HP250BH) 1.875	Max GPM 67.70 Max BPD 2321.00 Max PSI 4194.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 1.875	67.70	2321.00	4194.00
NOV 184T-7H (Wheatley HP250BH) 2.000	Max GPM 77.00 Max BPD 2640.00 Max PSI 3686.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 2.000	77.00	2640.00	3686.00
NOV 184T-7H (Wheatley HP250BH) 2.125	Max GPM 87.00 Max BPD 2982.00 Max PSI 3265.00 Out of stock 0 See more NOV 184T-7H (Wheatley HP250BH) 2.125	87.00	2982.00	3265.00
