NOV 165T-5M (National J-165-M)

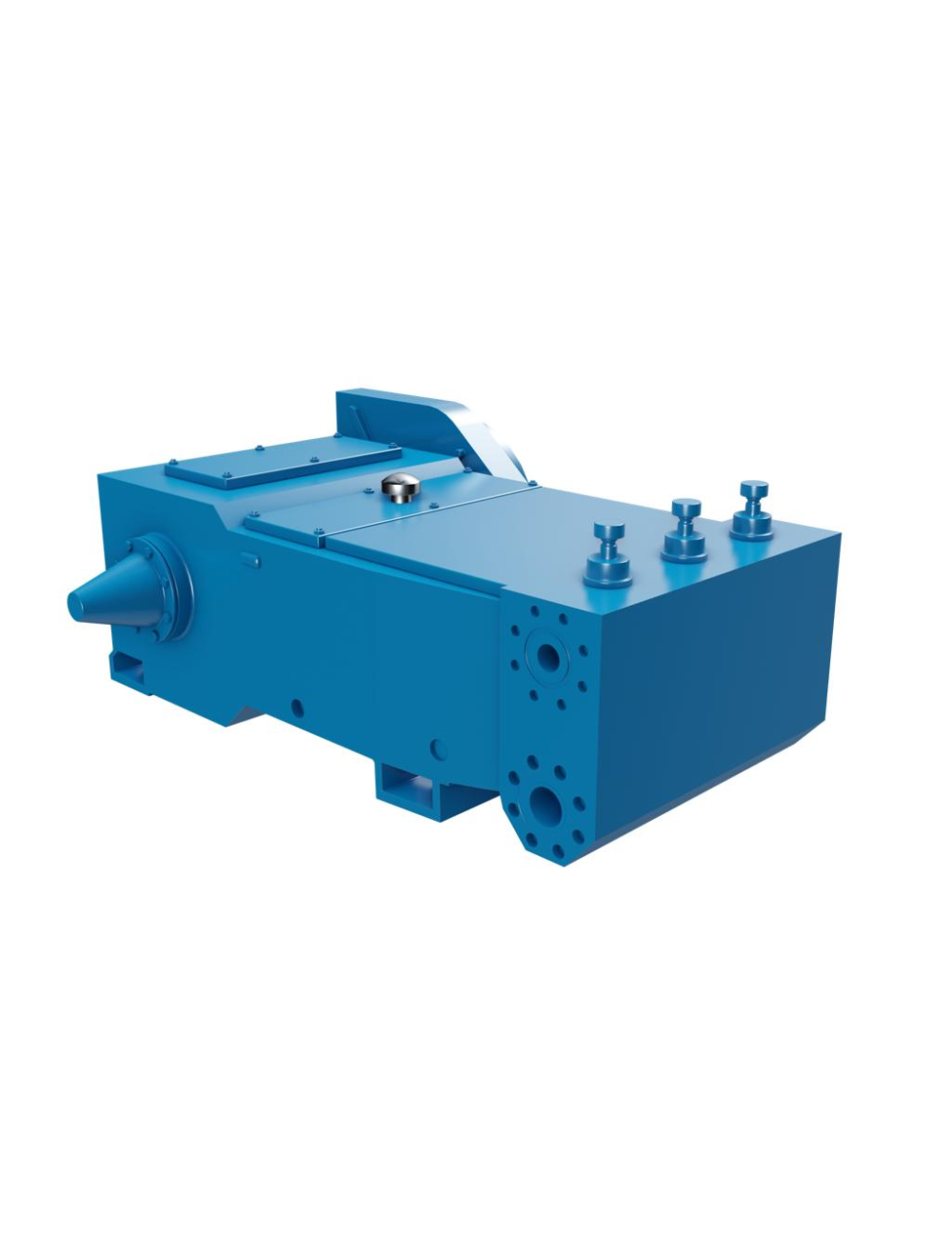

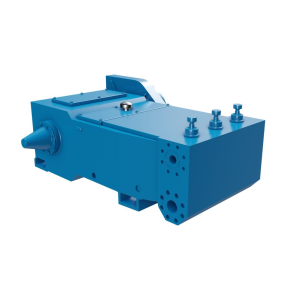

The NOV 165T-5M (National J-165-M) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 2.000” to 2.750” the maximum displacement pressure for the NOV 165T-5M (National J-165-M) is between 1650 psi (11376 kPA) and 3120 psi (21512 kPA) depending on plunger size.

This triplex pump will allow up to 154.3 GPM or 5290 BPD at peak performance. Operating in low-to-high pressure applications the NOV 165T-5M (National J-165-M) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 165T-5M (National J-165-M) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 400 RPM (Crankshaft speed) 165 (123)
Rated Plunger Load: pounds
(kg) 9800 (4445.2)
Maximum Discharge Pressure
psi (kPa) "M" Model: 3120 (21,512)
Oil Capacity
gallons (L) Crankcase: 8 (30)

Plunger Size Range

2.750"
2.625"
2.500"
2.375"
2.250"
2.125"
2.000"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Specification Datasheet

NOV 165T-5M (National J-165-M)

PUMP	English Units					100 RPM		200 RPM		250 RPM		300 RPM		350 RPM		400 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
165T-5L	4.000	12.5664	27.9770	0.8160	780	2798	81.6	5596	163.2	6995	204.0	8394	244.8	9792	285.6	11191	326
	3.750	11.0447	24.5892	0.7172	887	2459	71.7	4918	143.4	6148	179.3	7377	215.2	8607	251.0	9836	286.9
	3.500	9.6211	21.4199	0.6247	1019	2142	62.5	4284	124.9	5355	156.2	6426	187.4	7497	218.7	8568	249.9
	3.250	8.2958	18.4692	0.5387	1181	1847	53.9	3694	107.7	4618	134.7	5541	161.6	6465	188.5	7388	215.5
	3.000	7.0686	15.7371	0.4590	1386	1574	45.9	3148	91.8	3935	114.7	4722	137.7	5508	160.6	6295	183.6
	2.750	5.9396	13.2235	0.3857	1650	1323	38.6	2645	77.1	3306	96.4	3968	115.7	4629	135.0	5290	154.3
	2.750	5.9396	13.2235	0.3857	1650	1323	38.6	2645	77.1	3306	96.4	3968	115.7	4629	135.0	5290	154.3
165T-5M	2.500	4.9087	10.9285	0.3187	1996	1093	31.9	2186	63.7	2733	79.7	3279	95.6	3825	111.6	4372	127.5
	2.375	4.4301	9.8630	0.2877	2212	987	28.8	1973	57.5	2466	71.9	2959	86.3	3453	100.7	3946	115.1
	2.250	3.9761	8.8521	0.2582	2465	886	25.8	1771	51.6	2214	64.5	2656	77.5	3099	90.4	3541	103.3
	2.125	3.5466	7.8959	0.2303	2763	790	23.0	1580	46.1	1974	57.6	2369	69.1	2764	80.6	3159	92.1
	2.000	3.1416	6.9943	0.2040	3120	700	20.4	1399	40.8	1749	51.0	2099	61.2	2448	71.4	2798	81.6
	2.000	3.1416	6.9943	0.2040	3120	700	20.4	1399	40.8	1749	51.0	2099	61.2	2448	71.4	2798	81.6
165T-5H	1.875	2.7612	6.1473	0.1793	3549	615	17.9	1230	35.9	1537	44.8	1845	53.8	2152	62.8	2459	71.7
	1.750	2.4053	5.3550	0.1562	4074	536	15.6	1071	31.2	1339	39.0	1607	46.9	1875	54.7	2142	62.5
	1.625	2.0739	4.6173	0.1347	4725	462	13.5	924	26.9	1155	33.7	1386	40.4	1617	47.1	1847	53.9
	1.500	1.7671	3.9343	0.1147	5000	394	11.5	787	22.9	984	28.7	1181	34.4	1377	40.2	1574	45.9
	Brake Horsepower Required					42		83		104		124		144		165

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 165T-5M (National J-165-M) 2.000	Max GPM 81.60 Max BPD 2797.00 Max PSI 3120.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.000	81.60	2797.00	3120.00
NOV 165T-5M (National J-165-M) 2.125	Max GPM 92.10 Max BPD 3157.00 Max PSI 2763.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.125	92.10	3157.00	2763.00
NOV 165T-5M (National J-165-M) 2.250	Max GPM 103.30 Max BPD 3531.00 Max PSI 2465.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.250	103.30	3531.00	2465.00
NOV 165T-5M (National J-165-M) 2.375	Max GPM 115.10 Max BPD 3942.00 Max PSI 2212.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.375	115.10	3942.00	2212.00
NOV 165T-5M (National J-165-M) 2.500	Max GPM 127.50 Max BPD 4371.00 Max PSI 1996.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.500	127.50	4371.00	1996.00
NOV 165T-5M (National J-165-M) 2.750	Max GPM 154.30 Max BPD 5290.00 Max PSI 1650.00 Out of stock 0 See more NOV 165T-5M (National J-165-M) 2.750	154.30	5290.00	1650.00
