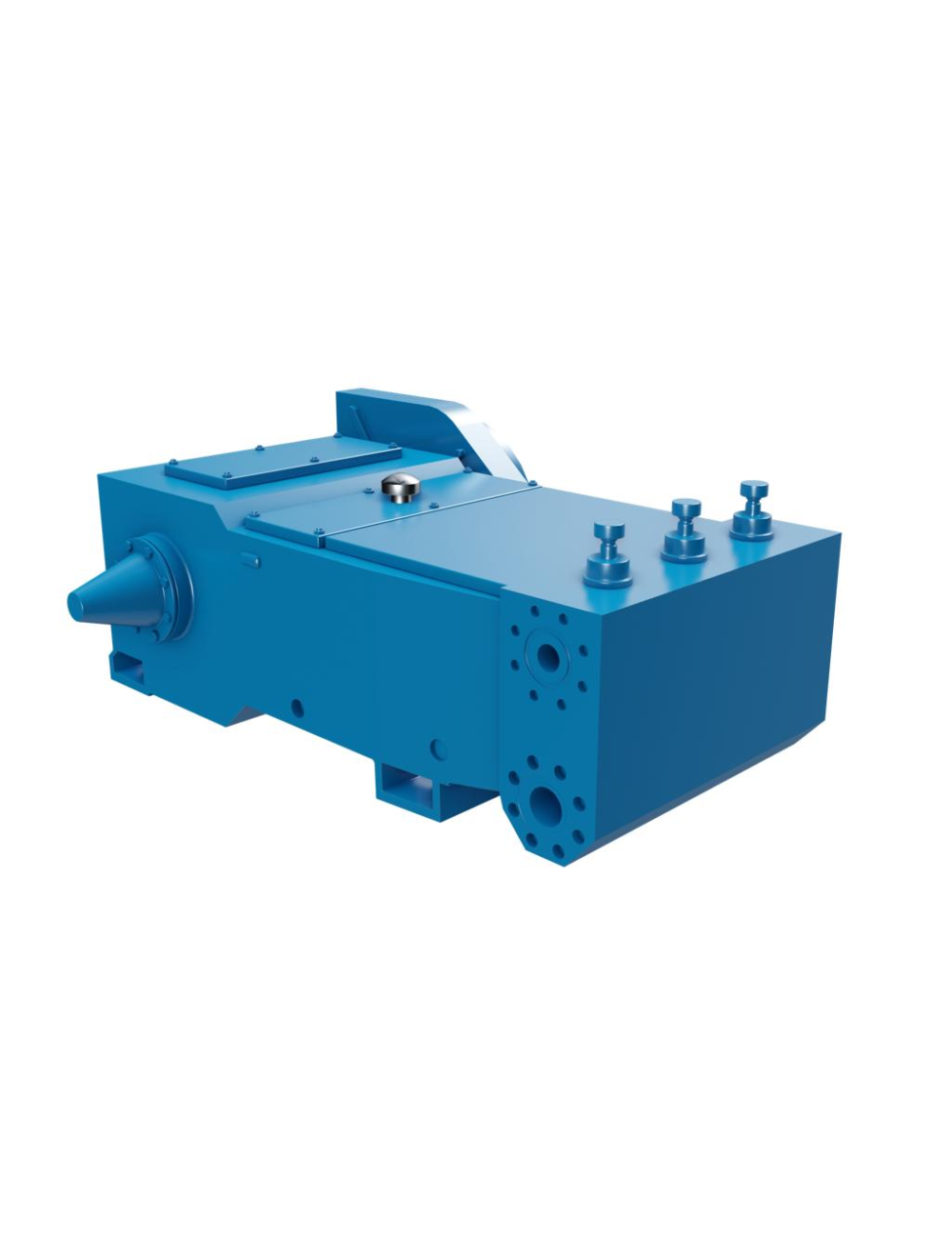

NOV 165T-5H (National J-165-H)
The NOV 165T-5H (National J-165-H) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.500” to 2.000” the maximum displacement pressure for the NOV 165T-5H (National J-165-H) is between 3120 psi (21512 kPA) and 5000 psi (34474 kPA) depending on plunger size.
This triplex pump will allow up to 81.6 GPM or 2798 BPD at peak performance. Operating in low-to-high pressure applications the NOV 165T-5H (National J-165-H) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 165T-5H (National J-165-H) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 400 RPM (Crankshaft speed) 165 (123)
- Rated Plunger Load: pounds
(kg) 9800 (4445.2) - Maximum Discharge Pressure
psi (kPa) "H" Model: 5000 (34,474) - Oil Capacity
gallons (L) Crankcase: 8 (30)
- Plunger Size Range
- 2.000"
- 1.875"
- 1.750"
- 1.625"
- 1.500"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Specification Datasheet
| PUMP | English Units | 100 RPM | 200 RPM | 250 RPM | 300 RPM | 350 RPM | 400 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 165T-5L | 4.000 | 12.5664 | 27.9770 | 0.8160 | 780 | 2798 | 81.6 | 5596 | 163.2 | 6995 | 204.0 | 8394 | 244.8 | 9792 | 285.6 | 11191 | 326 |
| 3.750 | 11.0447 | 24.5892 | 0.7172 | 887 | 2459 | 71.7 | 4918 | 143.4 | 6148 | 179.3 | 7377 | 215.2 | 8607 | 251.0 | 9836 | 286.9 | |
| 3.500 | 9.6211 | 21.4199 | 0.6247 | 1019 | 2142 | 62.5 | 4284 | 124.9 | 5355 | 156.2 | 6426 | 187.4 | 7497 | 218.7 | 8568 | 249.9 | |
| 3.250 | 8.2958 | 18.4692 | 0.5387 | 1181 | 1847 | 53.9 | 3694 | 107.7 | 4618 | 134.7 | 5541 | 161.6 | 6465 | 188.5 | 7388 | 215.5 | |
| 3.000 | 7.0686 | 15.7371 | 0.4590 | 1386 | 1574 | 45.9 | 3148 | 91.8 | 3935 | 114.7 | 4722 | 137.7 | 5508 | 160.6 | 6295 | 183.6 | |
| 2.750 | 5.9396 | 13.2235 | 0.3857 | 1650 | 1323 | 38.6 | 2645 | 77.1 | 3306 | 96.4 | 3968 | 115.7 | 4629 | 135.0 | 5290 | 154.3 | |
| 2.750 | 5.9396 | 13.2235 | 0.3857 | 1650 | 1323 | 38.6 | 2645 | 77.1 | 3306 | 96.4 | 3968 | 115.7 | 4629 | 135.0 | 5290 | 154.3 | |
| 165T-5M | 2.500 | 4.9087 | 10.9285 | 0.3187 | 1996 | 1093 | 31.9 | 2186 | 63.7 | 2733 | 79.7 | 3279 | 95.6 | 3825 | 111.6 | 4372 | 127.5 |
| 2.375 | 4.4301 | 9.8630 | 0.2877 | 2212 | 987 | 28.8 | 1973 | 57.5 | 2466 | 71.9 | 2959 | 86.3 | 3453 | 100.7 | 3946 | 115.1 | |
| 2.250 | 3.9761 | 8.8521 | 0.2582 | 2465 | 886 | 25.8 | 1771 | 51.6 | 2214 | 64.5 | 2656 | 77.5 | 3099 | 90.4 | 3541 | 103.3 | |
| 2.125 | 3.5466 | 7.8959 | 0.2303 | 2763 | 790 | 23.0 | 1580 | 46.1 | 1974 | 57.6 | 2369 | 69.1 | 2764 | 80.6 | 3159 | 92.1 | |
| 2.000 | 3.1416 | 6.9943 | 0.2040 | 3120 | 700 | 20.4 | 1399 | 40.8 | 1749 | 51.0 | 2099 | 61.2 | 2448 | 71.4 | 2798 | 81.6 | |
| 2.000 | 3.1416 | 6.9943 | 0.2040 | 3120 | 700 | 20.4 | 1399 | 40.8 | 1749 | 51.0 | 2099 | 61.2 | 2448 | 71.4 | 2798 | 81.6 | |
| 165T-5H | 1.875 | 2.7612 | 6.1473 | 0.1793 | 3549 | 615 | 17.9 | 1230 | 35.9 | 1537 | 44.8 | 1845 | 53.8 | 2152 | 62.8 | 2459 | 71.7 |
| 1.750 | 2.4053 | 5.3550 | 0.1562 | 4074 | 536 | 15.6 | 1071 | 31.2 | 1339 | 39.0 | 1607 | 46.9 | 1875 | 54.7 | 2142 | 62.5 | |
| 1.625 | 2.0739 | 4.6173 | 0.1347 | 4725 | 462 | 13.5 | 924 | 26.9 | 1155 | 33.7 | 1386 | 40.4 | 1617 | 47.1 | 1847 | 53.9 | |
| 1.500 | 1.7671 | 3.9343 | 0.1147 | 5000 | 394 | 11.5 | 787 | 22.9 | 984 | 28.7 | 1181 | 34.4 | 1377 | 40.2 | 1574 | 45.9 | |
| Brake Horsepower Required | 42 | 83 | 104 | 124 | 144 | 165 | |||||||||||
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
