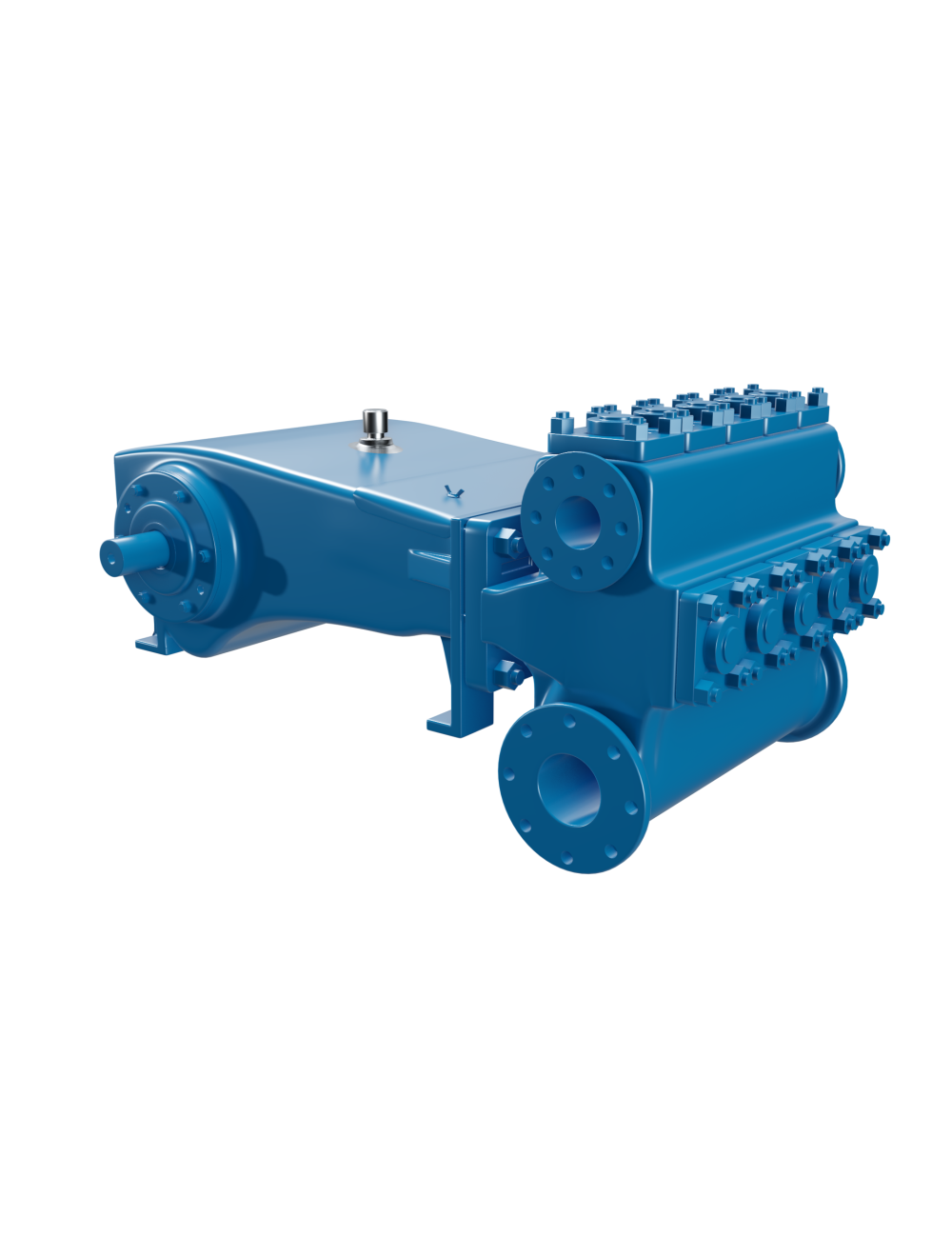

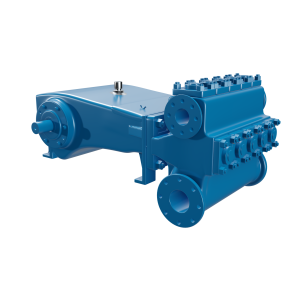

NOV 163Q-4H (Wheatley HP165MS)

The NOV 163Q-4H (Wheatley HP165MS) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.125” to 1.750” the maximum displacement pressure for the NOV 163Q-4H (Wheatley HP165MS) is between 2744 psi (18919 kPA) and 5378 psi (37081 kPA) depending on plunger size.

This quintuplex pump will allow up to 91.4 GPM or 3133 BPD at peak performance. Operating in low-to-high pressure applications the NOV 163Q-4H (Wheatley HP165MS) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 163Q-4H (Wheatley HP165MS) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 390 RPM (Crankshaft speed) 163 (121)
Rated Plunger Load: pounds
(kg) 6600 (2994)
Maximum Discharge Pressure
psi (kPa) "H" Model: 5378 (37081)
Oil Capacity
gallons (L) Crankcase: 7 (26.5)

Plunger Size Range

1.750"
1.625"
1.500"
1.375"
1.250"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Forged 15-5 Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 163Q-4H (HP165MS)

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		300 RPM		390 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
163Q-4L (HP165AL)	3.375	8.9462	29.8759	0.8714	738	1494	43.6	4482	130.7	5976	174.3	7469	217.8	8963	261.4	11652	339.8
	3.25	8.2958	27.7038	0.808	796	1386	40.4	4156	121.2	5541	161.6	6926	202	8312	242.4	10805	315.1
	3.125	7.6699	25.6137	0.7471	861	1281	37.4	3843	112.1	5123	149.4	6404	186.8	7685	224.1	9990	291.4
	3	7.0686	23.6056	0.6885	934	1181	34.4	3541	103.3	4722	137.7	5902	172.1	7082	206.5	9207	268.5
	2.875	6.4918	21.6795	0.6323	1017	1084	31.6	3252	94.8	4336	126.5	5420	158.1	6504	189.7	8455	246.6
	2.75	5.9396	19.8353	0.5785	1111	992	28.9	2976	86.8	3968	115.7	4959	144.6	5951	173.6	7736	225.6
	2.625	5.4119	18.0731	0.5271	1220	904	26.4	2711	79.1	3615	105.4	4519	131.8	5422	158.1	7049	205.6
163Q-4M (HP165AM)	2.5	4.9087	16.3928	0.4781	1345	820	23.9	2459	71.7	3279	95.6	4099	119.5	4918	143.4	6394	186.5
	2.375	4.4301	14.7945	0.4315	1490	740	21.6	2220	64.7	2959	86.3	3699	107.9	4439	129.5	5770	168.3
	2.25	3.9761	13.2782	0.3873	1660	664	19.4	1992	58.1	2656	77.5	3320	96.8	3984	116.2	5179	151
	2.125	3.5466	11.8438	0.3454	1861	593	17.3	1777	51.8	2369	69.1	2961	86.4	3554	103.6	4620	134.7
	2	3.1416	10.4914	0.306	2101	525	15.3	1574	45.9	2099	61.2	2623	76.5	3148	91.8	4092	119.3
	1.875	2.7612	9.2209	0.2689	2390	462	13.4	1384	40.3	1845	53.8	2306	67.2	2767	80.7	3597	104.9
	1.75	2.4053	8.0325	0.2343	2744	402	11.7	1205	35.1	1607	46.9	2009	58.6	2410	70.3	3133	91.4
163Q-4H (HP165MS)	1.625	2.0739	6.926	0.202	3182	347	10.1	1039	30.3	1386	40.4	1732	50.5	2078	60.6	2702	78.8
	1.5	1.7671	5.9014	0.1721	3735	296	8.6	886	25.8	1181	34.4	1476	43	1771	51.6	2302	67.1
	1.375	1.4849	4.9588	0.1446	4445	248	7.2	744	21.7	992	28.9	1240	36.2	1488	43.4	1934	56.4
	1.25	1.2272	4.0982	0.1195	5378	205	6	615	17.9	820	23.9	1025	29.9	1230	35.9	1599	46.6
	Brake Horsepower Required					21		63		84		104		125		163

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 163Q-4H (HP165MS) 1.250	Max GPM 46.60 Max BPD 1597.00 Max PSI 5378.00 Out of stock 0 See more NOV 163Q-4H (HP165MS) 1.250	46.60	1597.00	5378.00
NOV 163Q-4H (HP165MS) 1.375	Max GPM 56.40 Max BPD 1933.00 Max PSI 4445.00 Out of stock 0 See more NOV 163Q-4H (HP165MS) 1.375	56.40	1933.00	4445.00
NOV 163Q-4H (HP165MS) 1.500	Max GPM 67.10 Max BPD 2300.00 Max PSI 3735.00 Out of stock 0 See more NOV 163Q-4H (HP165MS) 1.500	67.10	2300.00	3735.00
NOV 163Q-4H (HP165MS) 1.625	Max GPM 78.80 Max BPD 2701.00 Max PSI 3182.00 Out of stock 0 See more NOV 163Q-4H (HP165MS) 1.625	78.80	2701.00	3182.00
