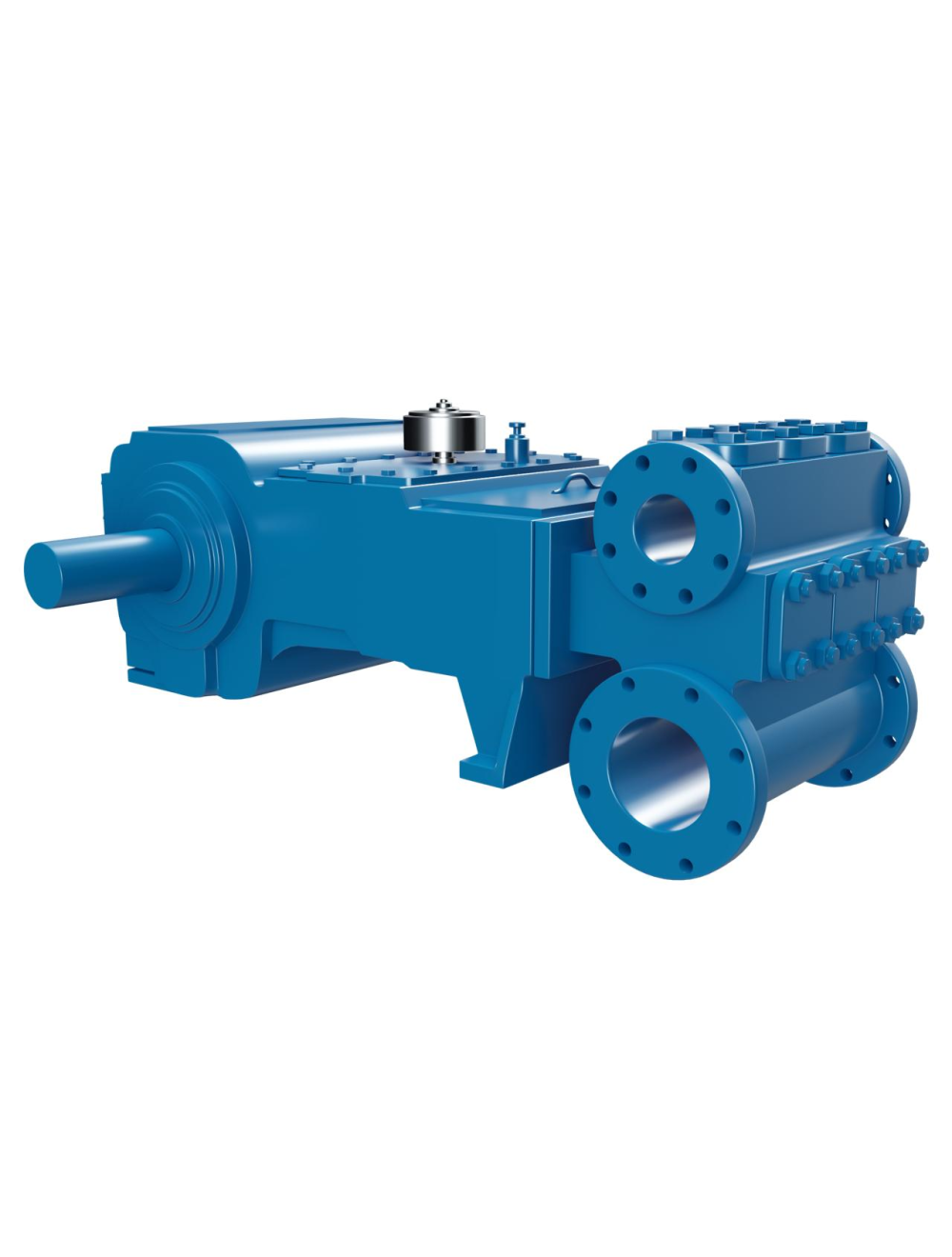

NOV 133T-4L (GASO T140-4)

The NOV 133T-4L (GASO T140-4) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 133T-4L (GASO T140-4) is offered in plunger sizes ranging from 2.625” to 3.375”. Maximum displacement pressure for the NOV 133T-4L (GASO T140-4) is between 984 psi (6782 kPA) and 1440 psi (9929 kPA) depending on plunger size.

The NOV 133T-4L (GASO T140-4) will pump up to 209.1 GPM or 7171 BPD at peak performance. Operating in low-to-high pressure applications the NOV 133T-4L (GASO T140-4) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 133T-4L (GASO T140-4) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 400 RPM (Crankshaft speed) 133 (99)
Rated Plunger Load: pounds
(kg) 8800 (3992)
Maximum Discharge Pressure
psi (kPa) "L" Model: 1440 (9929)
Oil Capacity
gallons (L) Crankcase: 6 (22.71)

Plunger Size Range

3.375"
3.250"
3.125"
3.000"
2.875"
2.750"
2.625"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Duplex Stainless Steel
Cast Nickel Aluminum Bronze
Forged/Plate Carbon Steel

Specification Datasheet

NOV 133T-4L (GASO T140-4)

PUMP	English Units					100 RPM		150 RPM		250 RPM		300 RPM		350 RPM		400 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
133T-4L (T140-4)	3.375	8.9462	17.9255	0.5228	984	1793	52.3	2689	78.4	4482	130.7	5378	156.8	6274	183	7171	209.1
	3.250	8.2958	16.6223	0.4848	1061	1663	48.5	2494	72.7	4156	121.2	4987	145.4	5818	169.7	6649	193.9
	3.125	7.6699	15.3682	0.4482	1147	1537	44.8	2306	67.2	3843	112.1	4611	134.5	5379	156.9	6148	179.3
	3.000	7.0686	14.1634	0.4131	1245	1417	41.3	2125	62	3541	103.3	4250	123.9	4958	144.6	5666	165.2
	2.875	6.4918	13.0077	0.3794	1356	1301	37.9	1952	56.9	3252	94.8	3903	113.8	4553	132.8	5204	151.8
	2.750	5.9396	11.9012	0.3471	1440	1191	34.7	1786	52.1	2976	86.8	3571	104.1	4166	121.5	4761	138.8
	2.625	5.4119	10.8438	0.3163	1440	1085	31.6	1627	47.4	2711	79.1	3254	94.9	3796	110.7	4338	126.5
133T-4M (T140-3)	2.500	4.9087	9.8357	0.2869	1793	984	28.7	1476	43	2459	71.7	2951	86.1	3443	100.4	3935	114.7
	2.375	4.4301	8.8767	0.2589	1986	888	25.9	1332	38.8	2220	64.7	2664	77.7	3107	90.6	3551	103.6
	2.250	3.9761	7.9669	0.2324	2213	797	23.2	1196	34.9	1992	58.1	2391	69.7	2789	81.3	3187	92.9
	2.125	3.5466	7.1063	0.2073	2481	711	20.7	1066	31.1	1777	51.8	2132	62.2	2488	72.5	2843	82.9
	2.000	3.1416	6.2948	0.1836	2801	630	18.4	945	27.5	1574	45.9	1889	55.1	2204	64.3	2518	73.4
	1.875	2.7612	5.5326	0.1614	3187	554	16.1	830	24.2	1384	40.3	1660	48.4	1937	56.5	2214	64.5
	1.750	2.4053	4.8195	0.1406	3600	482	14.1	723	21.1	1205	35.1	1446	42.2	1687	49.2	1928	56.2
101T-4H (T100-2)	1.625	2.0739	4.1556	0.1212	4243	416	12.1	624	18.2	1039	30.3	1247	36.4	1455	42.4	1663	48.5
	1.500	1.7671	3.5408	0.1033	4980	355	10.3	532	15.5	886	25.8	1063	31	1240	36.1	1417	41.3
	1.375	1.4849	2.9753	0.0868	5926	298	8.7	447	13	744	21.7	893	26	1042	30.4	1191	34.7
	1.250	1.2272	2.4589	0.0717	6000	246	7.2	369	10.8	615	17.9	738	21.5	861	25.1	984	28.7
	Brake Horsepower Required					34		51		84		100		117		133

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 133T-4L (GASO T140-4) 2.625	Max GPM 126.50 Max BPD 4337.00 Max PSI 1440.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 2.625	126.50	4337.00	1440.00
NOV 133T-4L (GASO T140-4) 2.750	Max GPM 138.80 Max BPD 4758.00 Max PSI 1440.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 2.750	138.80	4758.00	1440.00
NOV 133T-4L (GASO T140-4) 2.875	Max GPM 151.80 Max BPD 5204.00 Max PSI 1356.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 2.875	151.80	5204.00	1356.00
NOV 133T-4L (GASO T140-4) 3.000	Max GPM 165.20 Max BPD 5664.00 Max PSI 1245.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 3.000	165.20	5664.00	1245.00
NOV 133T-4L (GASO T140-4) 3.125	Max GPM 179.30 Max BPD 6147.00 Max PSI 1147.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 3.125	179.30	6147.00	1147.00
NOV 133T-4L (GASO T140-4) 3.250	Max GPM 193.90 Max BPD 6648.00 Max PSI 1061.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 3.250	193.90	6648.00	1061.00
NOV 133T-4L (GASO T140-4) 3.375	Max GPM 209.10 Max BPD 7169.00 Max PSI 984.00 Out of stock 0 See more NOV 133T-4L (GASO T140-4) 3.375	209.10	7169.00	984.00
