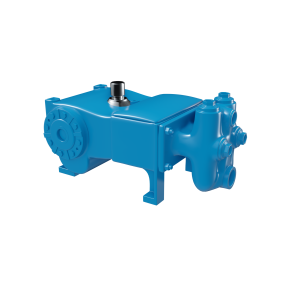

NOV 11D-2M (Wheatley P100A)
The NOV 11D-2M (Wheatley P100A) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.125” to 1.75”. The maximum displacement pressure for the 11D-2M (Wheatley P100A) is between 844 psi (5819 kPA) and 1654 psi (11405 kPA) depending on plunger size.
The 11D-2M (Wheatley P100A) will pump up to 18.2 GPM, or 625 BPD at peak performance. The NOV 11D-2M (Wheatley P100A) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 11D-2M (Wheatley P100A) works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 400 RPM (Crankshaft speed) 11 (8)
- Rated Plunger Load: pounds
(kg) 2030 (921) - Maximum Discharge Pressure
psi (kPa) "M" Model: 2042 (14081) - Oil Capacity
gallons (L) Crankcase: 7/8 (3.31)
- Plunger Size Range
- 1.75"
- 1.625"
- 1.500"
- 1.375"
- 1.25"
- 1.125"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Ductile Iron
- Cast Nickel-Aluminum-Bronze
- Forged 316 Stainless Steel
- Forged/Plate Carbon Steel
- Specification Datasheet
| PUMP | English Units | 50 RPM | 150 RPM | 200 RPM | 250 RPM | 350 RPM | 400 RPM | ||||||||||
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 11D-2L (P100ALS) | 2 | 3.1416 | 2.04 | 0.0595 | 646 | 102 | 3 | 306 | 8.9 | 408 | 11.9 | 510 | 14.9 | 714 | 20.8 | 816 | 23.8 |
| 1.875 | 2.7612 | 1.793 | 0.0523 | 735 | 90 | 2.6 | 269 | 7.8 | 359 | 10.5 | 449 | 13.1 | 628 | 18.3 | 718 | 20.9 | |
| 1.75 | 2.4053 | 1.5619 | 0.0456 | 844 | 79 | 2.3 | 235 | 6.8 | 313 | 9.1 | 391 | 11.4 | 547 | 15.9 | 625 | 18.2 | |
| 1.625 | 2.0739 | 1.3467 | 0.0393 | 979 | 68 | 2 | 203 | 5.9 | 270 | 7.9 | 337 | 9.8 | 472 | 13.7 | 539 | 15.7 | |
| 1.5 | 1.7671 | 1.1475 | 0.0335 | 1149 | 58 | 1.7 | 173 | 5 | 230 | 6.7 | 287 | 8.4 | 402 | 11.7 | 459 | 13.4 | |
| 11D-2M (P100A) | 1.75 | 2.4053 | 1.5619 | 0.0456 | 844 | 79 | 2.3 | 235 | 6.8 | 313 | 9.1 | 391 | 11.4 | 547 | 15.9 | 625 | 18.2 |
| 1.625 | 2.0739 | 1.3467 | 0.0393 | 979 | 68 | 2 | 203 | 5.9 | 270 | 7.9 | 337 | 9.8 | 472 | 13.7 | 539 | 15.7 | |
| 1.5 | 1.7671 | 1.1475 | 0.0335 | 1149 | 58 | 1.7 | 173 | 5 | 230 | 6.7 | 287 | 8.4 | 402 | 11.7 | 459 | 13.4 | |
| 1.375 | 1.4849 | 0.9642 | 0.0281 | 1367 | 49 | 1.4 | 145 | 4.2 | 193 | 5.6 | 242 | 7 | 338 | 9.8 | 386 | 11.2 | |
| 1.25 | 1.2272 | 0.7969 | 0.0232 | 1654 | 40 | 1.2 | 120 | 3.5 | 160 | 4.6 | 200 | 5.8 | 279 | 8.1 | 319 | 9.3 | |
| 1.125 | 0.994 | 0.6455 | 0.0188 | 2042 | 33 | 0.9 | 97 | 2.8 | 130 | 3.8 | 162 | 4.7 | 226 | 6.6 | 259 | 7.5 | |
| 11D-2H (P100H) | 1 | 0.7854 | 0.51 | 0.0149 | 2585 | 26 | 0.7 | 77 | 2.2 | 102 | 3 | 128 | 3.7 | 179 | 5.2 | 204 | 5.9 |
| 0.875 | 0.6013 | 0.3905 | 0.0114 | 3376 | 20 | 0.6 | 59 | 1.7 | 79 | 2.3 | 98 | 2.8 | 137 | 4 | 157 | 4.6 | |
| 0.75 | 0.4418 | 0.2869 | 0.0084 | 4595 | 15 | 0.4 | 44 | 1.3 | 58 | 1.7 | 72 | 2.1 | 101 | 2.9 | 115 | 3.3 | |
| Brake Horsepower Required | 2 | 5 | 6 | 7 | 10 | 11 | |||||||||||
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
