NOV 11D-2L (Wheatley P100ALS)

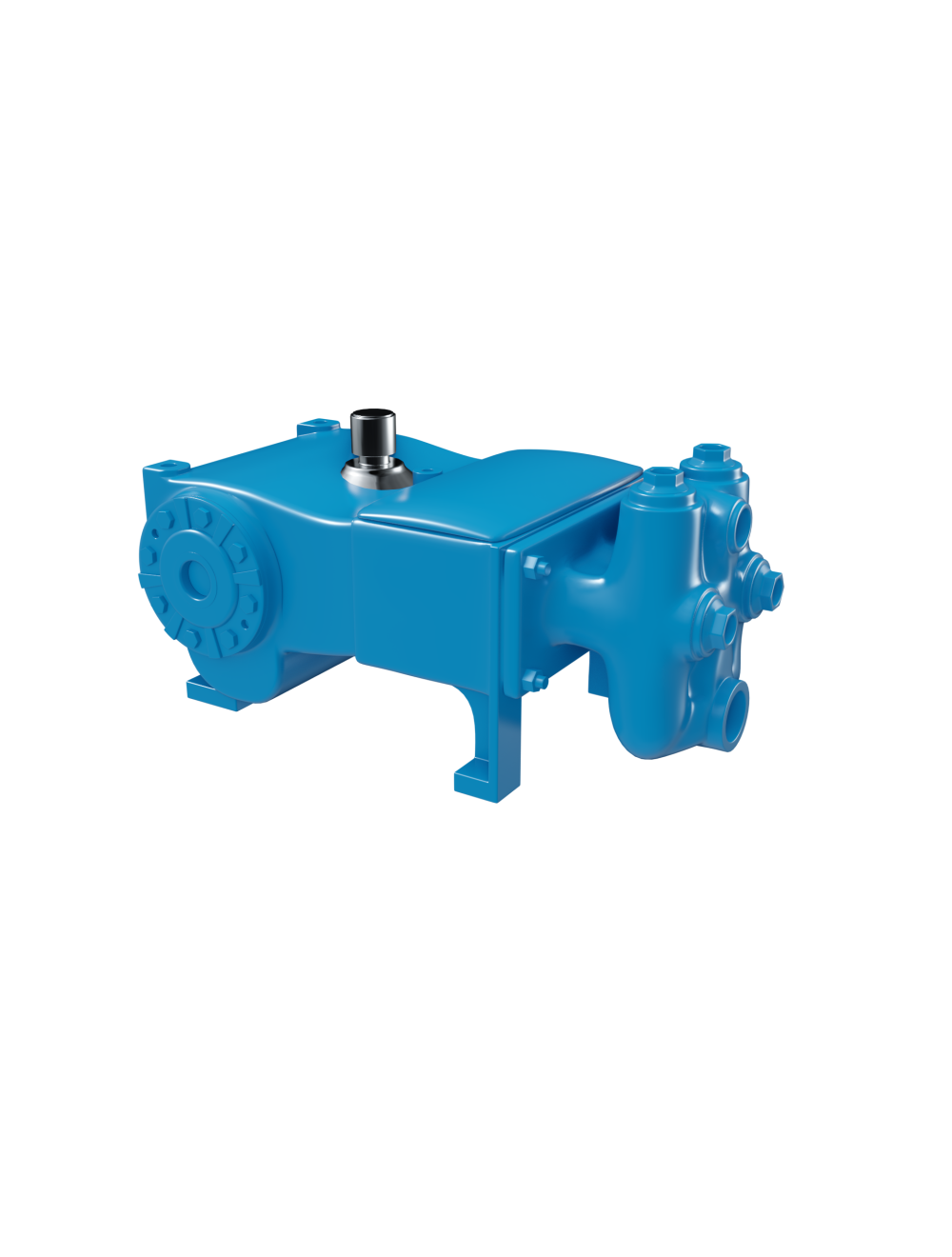

The NOV 11D-2L (Wheatley P100ALS) is one of our continuous and intermittent-duty reciprocating pumps. The largest of the 11D-2 (Wheatley P100) sub models (L, M and H) the 11D-2L (Wheatley P100ALS) is offered in plunger sizes ranging from 1.500” to 2.000”. Maximum displacement pressure is between 646 psi (4455 kPA) and 1149 psi (7920 kPA) depending on plunger size.

The 11D-2L (Wheatley P100ALS) will pump up to 23.8 GPM, or 816 BPD at peak performance. The NOV 11D-2L (Wheatley P100ALS) operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 11D-2L (Wheatley P100ALS) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 400 RPM (Crankshaft speed) 11 (8)
Rated Plunger Load: pounds
(kg) 2030 (921)
Maximum Discharge Pressure
psi (kPa) "L" Model: 1149 (7920)
Oil Capacity
gallons (L) Crankcase: 7/8 (3.31)

Plunger Size Range

2.000"
1.875"
1.750"
1.625"
1.500"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
Cast Nickel-Aluminum-Bronze
Forged 316 Stainless Steel
Forged/Plate Carbon Steel

Specification Datasheet

NOV 11D-2L (Wheatley P100ALS)

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		350 RPM		400 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
11D-2L (P100ALS)	2	3.1416	2.04	0.0595	646	102	3	306	8.9	408	11.9	510	14.9	714	20.8	816	23.8
	1.875	2.7612	1.793	0.0523	735	90	2.6	269	7.8	359	10.5	449	13.1	628	18.3	718	20.9
	1.75	2.4053	1.5619	0.0456	844	79	2.3	235	6.8	313	9.1	391	11.4	547	15.9	625	18.2
	1.625	2.0739	1.3467	0.0393	979	68	2	203	5.9	270	7.9	337	9.8	472	13.7	539	15.7
	1.5	1.7671	1.1475	0.0335	1149	58	1.7	173	5	230	6.7	287	8.4	402	11.7	459	13.4
11D-2M (P100A)	1.75	2.4053	1.5619	0.0456	844	79	2.3	235	6.8	313	9.1	391	11.4	547	15.9	625	18.2
	1.625	2.0739	1.3467	0.0393	979	68	2	203	5.9	270	7.9	337	9.8	472	13.7	539	15.7
	1.5	1.7671	1.1475	0.0335	1149	58	1.7	173	5	230	6.7	287	8.4	402	11.7	459	13.4
	1.375	1.4849	0.9642	0.0281	1367	49	1.4	145	4.2	193	5.6	242	7	338	9.8	386	11.2
	1.25	1.2272	0.7969	0.0232	1654	40	1.2	120	3.5	160	4.6	200	5.8	279	8.1	319	9.3
	1.125	0.994	0.6455	0.0188	2042	33	0.9	97	2.8	130	3.8	162	4.7	226	6.6	259	7.5
11D-2H (P100H)	1	0.7854	0.51	0.0149	2585	26	0.7	77	2.2	102	3	128	3.7	179	5.2	204	5.9
	0.875	0.6013	0.3905	0.0114	3376	20	0.6	59	1.7	79	2.3	98	2.8	137	4	157	4.6
	0.75	0.4418	0.2869	0.0084	4595	15	0.4	44	1.3	58	1.7	72	2.1	101	2.9	115	3.3
	Brake Horsepower Required					2		5		6		7		10		11

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 11D-2L (Wheatley P100ALS) 1.500	Max GPM 13.40 Max BPD 459.40 Max PSI 1149.00 Out of stock 0 See more NOV 11D-2L (Wheatley P100ALS) 1.500	13.40	459.40	1149.00
NOV 11D-2L (Wheatley P100ALS) 1.625	Max GPM 15.70 Max BPD 34.00 Max PSI 979.00 Out of stock 0 See more NOV 11D-2L (Wheatley P100ALS) 1.625	15.70	34.00	979.00
NOV 11D-2L (Wheatley P100ALS) 1.750	Max GPM 18.20 Max BPD 624.00 Max PSI 844.00 Out of stock 0 See more NOV 11D-2L (Wheatley P100ALS) 1.750	18.20	624.00	844.00
NOV 11D-2L (Wheatley P100ALS) 1.875	Max GPM 20.90 Max BPD 716.00 Max PSI 735.00 Out of stock 0 See more NOV 11D-2L (Wheatley P100ALS) 1.875	20.90	716.00	735.00
NOV 11D-2L (Wheatley P100ALS) 2.000	Max GPM 23.80 Max BPD 816.00 Max PSI 646.00 Out of stock 0 See more NOV 11D-2L (Wheatley P100ALS) 2.000	23.80	816.00	646.00
