NOV 110Q-3M (Wheatley HP125AM)

Skip to the beginning of the images gallery

NOV 110Q-3M (Wheatley HP125AM)

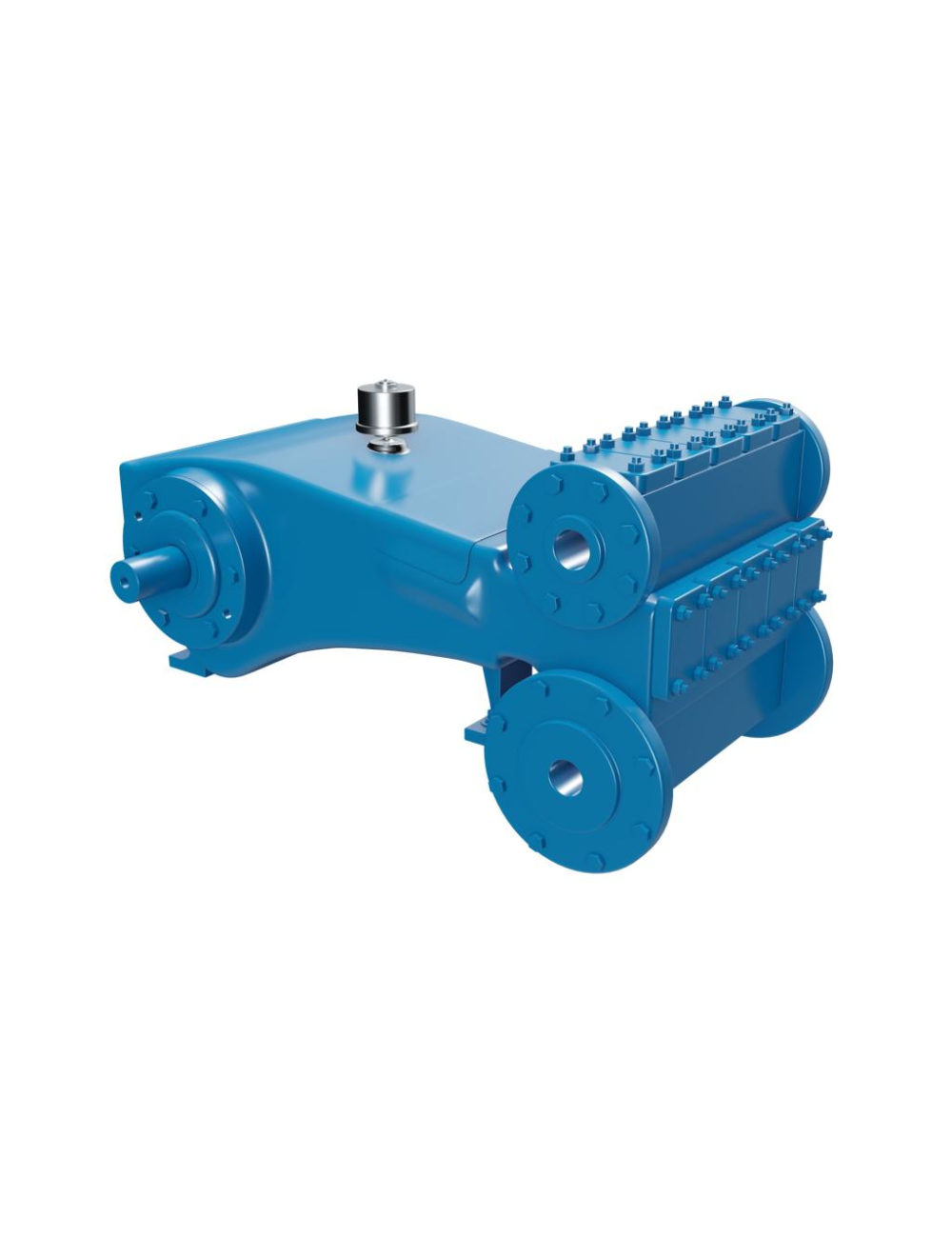

The NOV 110Q-3M (Wheatley HP125AM) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.750” to 2.500” the maximum displacement pressure for the NOV 110Q-3M (Wheatley HP125AM) is between 970 psi (6686 kPA) and 1979 psi (13,645 kPA) depending on plunger size.

This quintuplex pump will allow up to 163.6 GPM or 5610 BPD at peak performance. Operating in low-to-high pressure applications the NOV 110Q-3M (Wheatley HP125AM) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 110Q-3M (Wheatley HP125AM) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 435 RPM (Crankshaft speed) 102 (76)
Rated Plunger Load: pounds
(kg) 4760 (2159)
Maximum Discharge Pressure
psi (kPa) "M" Model: 2295 (15825)
Oil Capacity
gallons (L) Crankcase: 5 (18.93)

Plunger Size Range

2.500"
2.375"
2.250"
2.125"
2.000"
1.875"
1.750"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Ductile Iron
Cast Nickel-Aluminum-Bronze
Cast Duplex Stainless Steel
Forged/Plate Carbon Steel>

Specification Datasheet

NOV 110Q-3M (Wheatley HP125AM)

PUMP	English Units					100 RPM		200 RPM		250 RPM		300 RPM		350 RPM		440 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
110Q-3L (HP125AL)	3	7.0686	18.3599	0.5355	720	1836	53.5	3672	107.1	4590	133.9	5508	160.6	6426	187.4	8079	235.6
	2.875	6.4918	16.8618	0.4918	733	1687	49.2	3373	98.4	4216	123	5059	147.5	5902	172.1	7420	216.4
	2.75	5.9396	15.4274	0.45	801	1543	45	3086	90	3857	112.5	4629	135	5400	157.5	6789	198
	2.625	5.4119	14.0568	0.41	880	1406	41	2812	82	3515	102.5	4218	123	4920	143.5	6186	180.4
	2.5	4.9087	12.75	0.3719	970	1275	37.2	2550	74.4	3188	93	3825	111.6	4463	130.2	5610	163.6
110Q-3M (HP125AM)	2.5	4.9087	12.75	0.3719	970	1275	37.2	2550	74.4	3188	93	3825	111.6	4463	130.2	5610	163.6
	2.375	4.4301	11.5068	0.3356	1074	1151	33.6	2302	67.1	2877	83.9	3453	100.7	4028	117.5	5064	147.7
	2.25	3.9761	10.3275	0.3012	1197	1033	30.1	2066	60.2	2582	75.3	3099	90.4	3615	105.4	4545	132.5
	2.125	3.5466	9.2118	0.2687	1342	922	26.9	1843	53.7	2303	67.2	2764	80.6	3225	94	4054	118.2
	2	3.1416	8.16	0.238	1515	816	23.8	1632	47.6	2040	59.5	2448	71.4	2856	83.3	3591	104.7
	1.875	2.7612	7.1718	0.2092	1724	718	20.9	1435	41.8	1793	52.3	2152	62.8	2511	73.2	3156	92
	1.75	2.4053	6.2475	0.1822	1979	625	18.2	1250	36.4	1562	45.6	1875	54.7	2187	63.8	2749	80.2
	1.625	2.0739	5.3869	0.1571	2295	539	15.7	1078	31.4	1347	39.3	1617	47.1	1886	55	2371	69.1
110Q-3MS (HP125MS)	1.5	1.7671	4.59	0.1339	2694	459	13.4	918	26.8	1148	33.5	1377	40.2	1607	46.9	2020	58.9
	1.375	1.4849	3.8569	0.1125	3206	386	11.2	722	22.5	965	28.1	1158	33.7	1350	39.4	1698	49.5
	1.25	1.2272	3.1875	0.093	3879	319	9.3	638	18.6	797	23.2	957	27.9	1116	32.5	1403	40.9
	1.125	0.994	2.5819	0.0753	4789	259	7.5	157	15.1	646	18.8	775	22.6	904	26.4	1137	33.1
110Q-H (HP125H)	1	0.7854	2.04	0.0595	6061	204	5.9	408	11.8	510	14.9	612	17.8	714	20.8	898	26.2
	0.875	0.6013	1.5619	0.0456	7916	157	4.6	313	9.1	391	11.4	469	13.7	547	15.9	688	20
	0.75	0.4418	1.1475	0.0335	10000	115	3.3	230	6.7	287	8.4	345	10	402	11.7	505	14.7
	Brake Horsepower Required					25		50		63		75		87		110

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 110Q-3M (Wheatley HP125AM) 1.625	Max GPM 69.10 Max BPD 2369.00 Max PSI 2454.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 1.625	69.10	2369.00	2454.00
NOV 110Q-3M (Wheatley HP125AM) 1.750	Max GPM 80.20 Max BPD 2749.00 Max PSI 2116.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 1.750	80.20	2749.00	2116.00
NOV 110Q-3M (Wheatley HP125AM) 1.875	Max GPM 92.00 Max BPD 3154.00 Max PSI 1843.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 1.875	92.00	3154.00	1843.00
NOV 110Q-3M (Wheatley HP125AM) 2.000	Max GPM 104.70 Max BPD 3589.00 Max PSI 1620.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 2.000	104.70	3589.00	1620.00
NOV 110Q-3M (Wheatley HP125AM) 2.125	Max GPM 118.20 Max BPD 4052.00 Max PSI 1435.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 2.125	118.20	4052.00	1435.00
NOV 110Q-3M (Wheatley HP125AM) 2.250	Max GPM 132.50 Max BPD 4542.00 Max PSI 1280.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 2.250	132.50	4542.00	1280.00
NOV 110Q-3M (Wheatley HP125AM) 2.375	Max GPM 147.70 Max BPD 5064.00 Max PSI 1149.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 2.375	147.70	5064.00	1149.00
NOV 110Q-3M (Wheatley HP125AM) 2.500	Max GPM 163.60 Max BPD 5609.00 Max PSI 1037.00 Out of stock 0 See more NOV 110Q-3M (Wheatley HP125AM) 2.500	163.60	5609.00	1037.00
