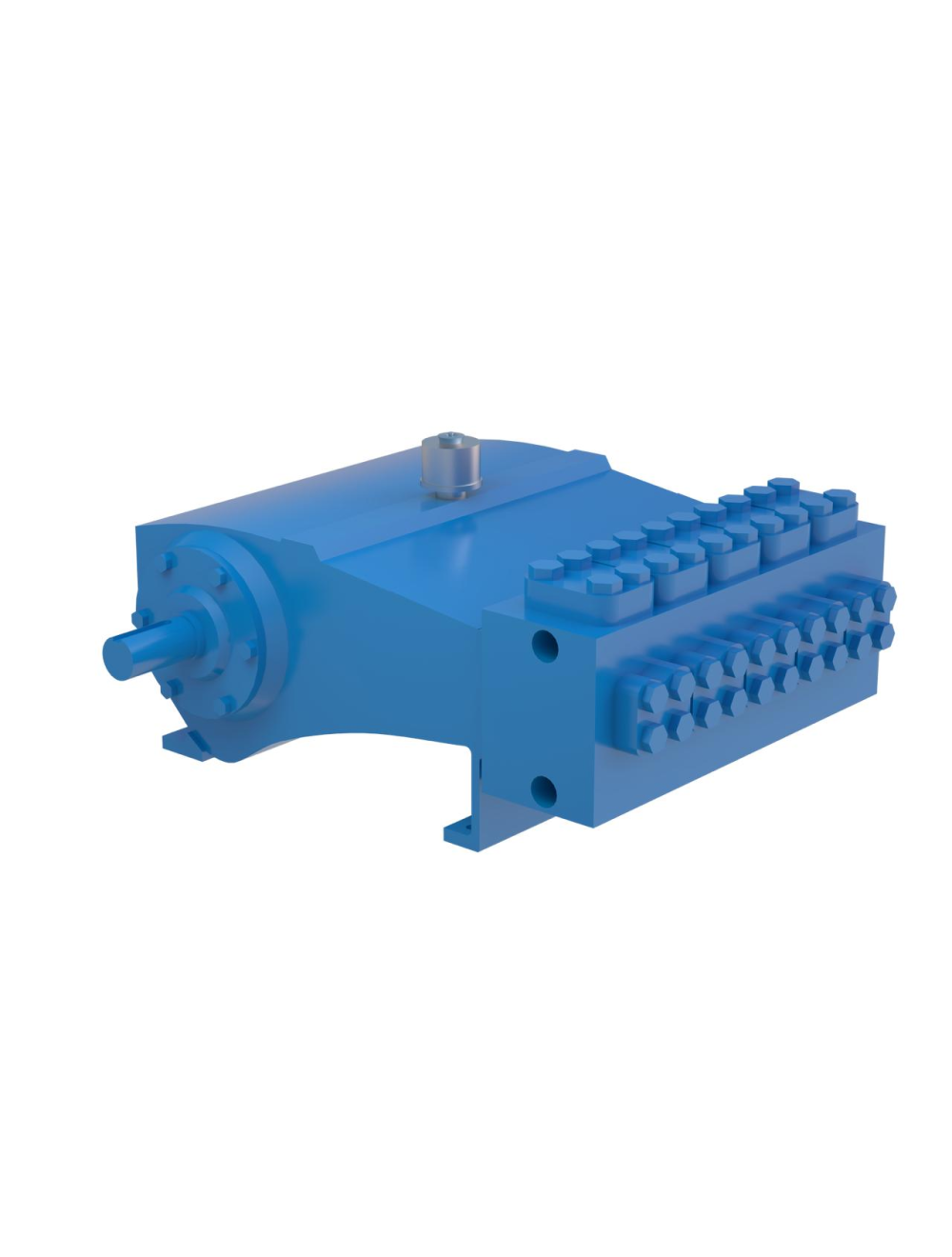

NOV 103Q-3MS (Wheatley Q3115MS)

The NOV 103Q-3MS (Wheatley Q3115MS) is one of our continuous and intermittent-duty reciprocating pumps. With plunger sizes ranging from 1.125” to 1.625” the maximum displacement pressure for the NOV 103Q-3MS (Wheatley Q3115MS) is between 4789 psi (15,825 kPA) and 2295 psi (33,017 kPA) depending on plunger size.

This quintuplex pump will allow up to 68.3 GPM or 2344 BPD at peak performance. Operating in low-to-high pressure applications the NOV 103Q-3MS (Wheatley Q3115MS) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 103Q-3MS (Wheatley Q3115MS) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 435 RPM (Crankshaft speed) 102 (76)
Rated Plunger Load: pounds
(kg) 4760 (2159)
Maximum Discharge Pressure
psi (kPa) "MS" Model: 4789 (33017)
Oil Capacity
gallons (L) Crankcase: 5 (18.93)

Plunger Size Range

1.625"
1.500"
1.375"
1.250"
1.125"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Forged Nickel-Aluminum-Bronze
Forged/Plate Carbon Steel
Forged 316 Stainless Steel

Specification Datasheet

NOV 103Q-3MS (Wheatley Q3115MS)

PUMP	English Units					50 RPM		150 RPM		250 RPM		300 RPM		350 RPM		435 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
103Q-3L (Q3115AL)	3	7.0686	18.3599	0.5355	673	918	26.8	2754	80.3	4590	133.9	5508	160.6	6426	187.4	7987	232.9
	2.875	6.4918	16.8618	0.4918	733	844	24.6	2530	73.8	4216	123	5059	147.5	5902	172.1	7335	213.9
	2.75	5.9396	15.4274	0.45	801	772	22.5	2315	67.5	3857	112.5	4629	135	5400	157.5	6711	195.7
	2.625	5.4119	14.0568	0.41	880	703	20.5	2109	61.5	3515	102.5	4218	123	4920	143.5	6115	178.3
	2.5	4.9087	12.75	0.3719	970	638	18.6	1913	55.8	3188	93	3825	111.6	4463	130.2	5547	161.8
103Q-3M (Q3115AM)	2.5	4.9087	12.75	0.3719	970	638	18.6	1913	55.8	3188	93	3825	111.6	4463	130.2	5547	161.8
	2.375	4.4301	11.5068	0.3356	1074	576	16.8	1727	50.3	2877	83.9	3453	100.7	4028	117.5	5006	146
	2.25	3.9761	10.3275	0.3012	1197	517	15.1	1550	45.2	2582	75.3	3099	90.4	3615	105.4	4493	131
	2.125	3.5466	9.2118	0.2687	1342	461	13.4	1382	40.3	2303	67.2	2764	80.6	3225	94	4008	116.9
	2	3.1416	8.16	0.238	1515	408	11.9	1224	35.7	2040	59.5	2448	71.4	2856	83.3	3550	103.5
	1.875	2.7612	7.1718	0.2092	1724	359	10.5	1076	31.4	1793	52.3	2152	62.8	2511	73.2	3120	91
	1.75	2.4053	6.2475	0.1822	1979	313	9.1	938	27.3	1562	45.6	1875	54.7	2187	63.8	2718	79.3
	1.625	2.0739	5.3869	0.1571	2295	270	7.9	809	23.6	1347	39.3	1617	47.1	1886	55	2344	68.3
103Q-3MS (Q3115MS)	1.5	1.7671	4.59	0.1339	2694	230	6.7	689	20.1	1148	33.5	1377	40.2	1607	46.9	1997	58.2
	1.375	1.4849	3.8569	0.1125	3206	193	5.6	579	16.9	965	28.1	1158	33.7	1350	39.4	1678	48.9
	1.25	1.2272	3.1875	0.093	3879	160	4.6	479	13.9	797	23.2	957	27.9	1116	32.5	1387	40.4
	1.125	0.994	2.5819	0.0753	4789	130	3.8	388	11.3	646	18.8	775	22.6	904	26.4	1124	32.8
103Q-3H (Q3115H)	1	0.7854	2.04	0.0595	6061	102	3	306	8.9	510	14.9	612	17.8	714	20.8	888	25.9
	0.875	0.6013	1.5619	0.0456	7916	79	2.3	235	6.8	391	11.4	469	13.7	547	15.9	680	19.8
	0.75	0.4418	1.1475	0.0335	10000	58	1.7	173	5	287	8.4	345	10	402	11.7	500	14.6
	Brake Horsepower Required					12		35		59		70		82		102

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 103Q-3MS (Wheatley Q3115MS) 1.125	Max GPM 32.80 Max BPD 1124.00 Max PSI 4789.00 Out of stock 0 See more NOV 103Q-3MS (Wheatley Q3115MS) 1.125	32.80	1124.00	4789.00
NOV 103Q-3MS (Wheatley Q3115MS) 1.250	Max GPM 40.40 Max BPD 1385.00 Max PSI 3879.00 Out of stock 0 See more NOV 103Q-3MS (Wheatley Q3115MS) 1.250	40.40	1385.00	3879.00
NOV 103Q-3MS (Wheatley Q3115MS) 1.375	Max GPM 48.90 Max BPD 1676.00 Max PSI 3206.00 Out of stock 0 See more NOV 103Q-3MS (Wheatley Q3115MS) 1.375	48.90	1676.00	3206.00
NOV 103Q-3MS (Wheatley Q3115MS) 1.500	Max GPM 58.20 Max BPD 1995.00 Max PSI 2694.00 Out of stock 0 See more NOV 103Q-3MS (Wheatley Q3115MS) 1.500	58.20	1995.00	2694.00
