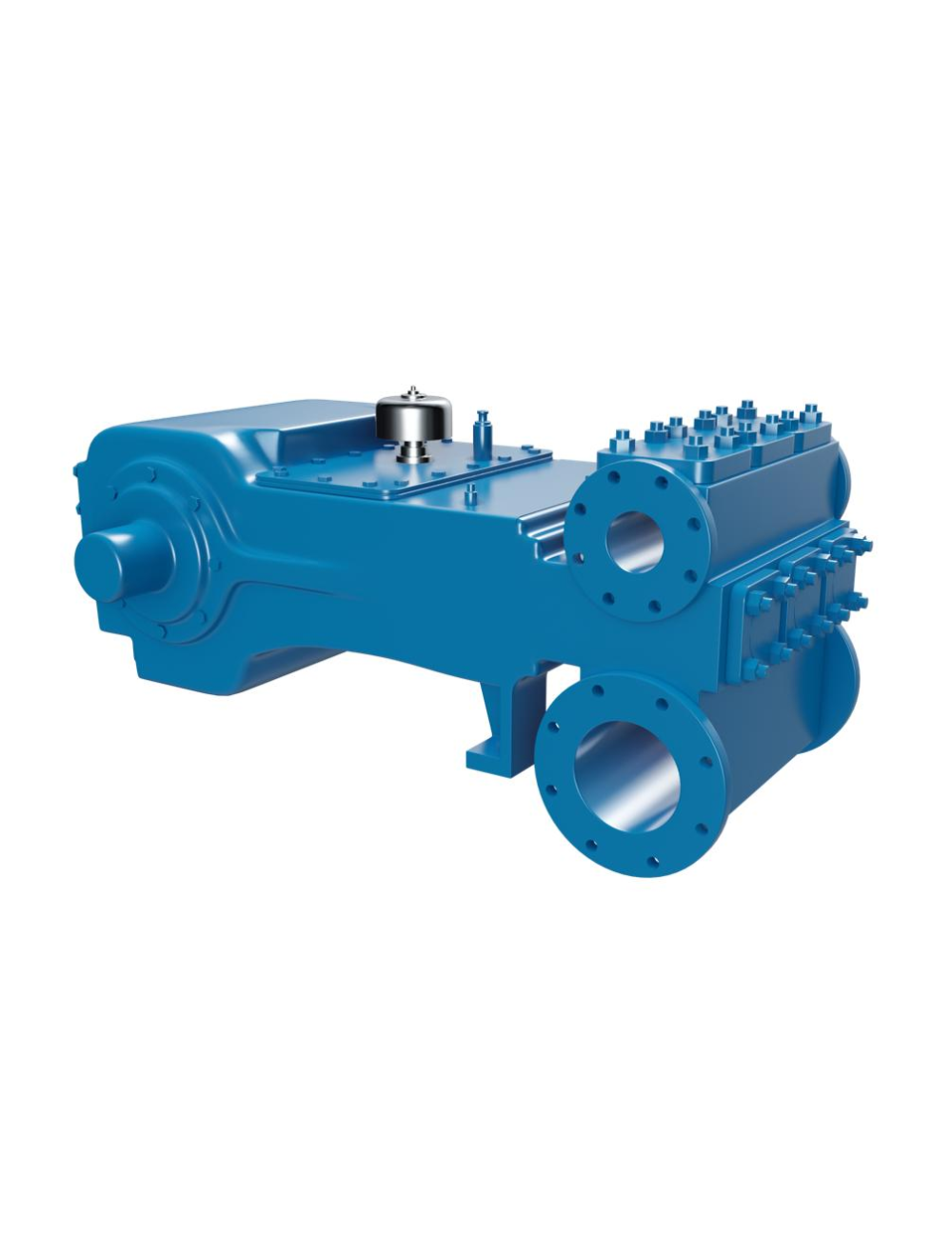

NOV 101T-4L (GASO T100-4)

The NOV 101T-4L (GASO T100-4) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 101T-4L (GASO T100-4) is offered in plunger sizes ranging from 2.750” to 3.375”. Maximum displacement pressure for the NOV 101T-4L (GASO T100-4) is between 738 psi (5087 kPA) and 1220 psi (8408 kPA) depending on plunger size.

The NOV 101T-4L (GASO T100-4) will pump up to 209.1 GPM or 7171 BPD at peak performance. Operating in low-to-high pressure applications the NOV 101T-4L (GASO T100-4) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 101T-4L (GASO T100-4) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 400 RPM (Crankshaft speed) 100 (75)
Rated Plunger Load: pounds
(kg) 6600 (2994)
Maximum Discharge Pressure
psi (kPa) "L" Model: 1220 (8408)
Oil Capacity
gallons (L) Crankcase: 6 (22.71)

Plunger Size Range

3.375"
3.250"
3.125"
3.000"
2.875"
2.750"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Duplex Stainless Steel
Cast Nickel-Aluminum Bronze
Forged/Plate Carbon Steel

Specification Datasheet

NOV 101T-4L (GASO T100-4)

PUMP	English Units					50 RPM		150 RPM		250 RPM		300 RPM		350 RPM		400 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
101T-4L (T100-4)	3.375	8.9462	17.9255	0.5228	738	897	26.1	2689	78.4	4482	130.7	5378	156.8	6274	183	7171	209.1
	3.25	8.2958	16.6223	0.4848	796	832	24.2	2494	72.7	4156	121.2	4987	145.4	5818	169.7	6649	193.9
	3.125	7.6699	15.3682	0.4482	861	769	22.4	2306	67.2	3843	112.1	4611	134.5	5379	156.9	6148	179.3
	3	7.0686	14.1634	0.4131	934	709	20.7	2125	62	3541	103.3	4250	123.9	4958	144.6	5666	165.2
	2.875	6.4918	13.0077	0.3794	1017	651	19	1952	56.9	3252	94.8	3903	113.8	4553	132.8	5204	151.8
	2.75	5.9396	11.9012	0.3471	1111	596	17.4	1786	52.1	2976	86.8	3571	104.1	4166	121.5	4761	138.8
	2.625	5.4119	10.8438	0.3163	1220	543	15.8	1627	47.4	2711	79.1	3254	94.9	3796	110.7	4338	126.5
101T-4M (T100-3)	2.5	4.9087	9.8357	0.2869	1345	492	14.3	1476	43	2459	71.7	2951	86.1	3443	100.4	3935	114.7
	2.375	4.4301	8.8767	0.2589	1490	444	12.9	1332	38.8	2220	64.7	2664	77.7	3107	90.6	3551	103.6
	2.25	3.9761	7.9669	0.2324	1660	399	11.6	1196	34.9	1992	58.1	2391	69.7	2789	81.3	3187	92.9
	2.125	3.5466	7.1063	0.2073	1861	356	10.4	1066	31.1	1777	51.8	2132	62.2	2488	72.5	2843	82.9
	2	3.1416	6.2948	0.1836	2101	315	9.2	945	27.5	1574	45.9	1889	55.1	2204	64.3	2518	73.4
	1.875	2.7612	5.5326	0.1614	2390	277	8.1	830	24.2	1384	40.3	1660	48.4	1937	56.5	2214	64.5
	1.75	2.4053	4.8195	0.1406	2744	241	7	723	21.1	1205	35.1	1446	42.2	1687	49.2	1928	56.2
101T-4H (T100-2)	1.625	2.0739	4.1556	0.1212	3182	208	6.1	624	18.2	1039	30.3	1247	36.4	1455	42.4	1663	48.5
	1.5	1.7671	3.5408	0.1033	3735	178	5.2	532	15.5	886	25.8	1063	31	1240	36.1	1417	41.3
	1.375	1.4849	2.9753	0.0868	4445	149	4.3	447	13	744	21.7	893	26	1042	30.4	1191	34.7
	1.25	1.2272	2.4589	0.0717	5378	123	3.6	369	10.8	615	17.9	738	21.5	861	25.1	984	28.7
	Brake Horsepower Required					13		38		63		75		88		100

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 101T-4L (GASO T100-4) 2.625	Max GPM 126.50 Max BPD 4337.00 Max PSI 1220.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 2.625	126.50	4337.00	1220.00
NOV 101T-4L (GASO T100-4) 2.750	Max GPM 138.80 Max BPD 4758.00 Max PSI 1111.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 2.750	138.80	4758.00	1111.00
NOV 101T-4L (GASO T100-4) 2.875	Max GPM 151.80 Max BPD 5204.00 Max PSI 1017.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 2.875	151.80	5204.00	1017.00
NOV 101T-4L (GASO T100-4) 3.000	Max GPM 165.20 Max BPD 5664.00 Max PSI 934.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 3.000	165.20	5664.00	934.00
NOV 101T-4L (GASO T100-4) 3.125	Max GPM 179.30 Max BPD 6147.00 Max PSI 861.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 3.125	179.30	6147.00	861.00
NOV 101T-4L (GASO T100-4) 3.250	Max GPM 193.90 Max BPD 6648.00 Max PSI 796.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 3.250	193.90	6648.00	796.00
NOV 101T-4L (GASO T100-4) 3.375	Max GPM 209.10 Max BPD 7169.00 Max PSI 738.00 Out of stock 0 See more NOV 101T-4L (GASO T100-4) 3.375	209.10	7169.00	738.00
