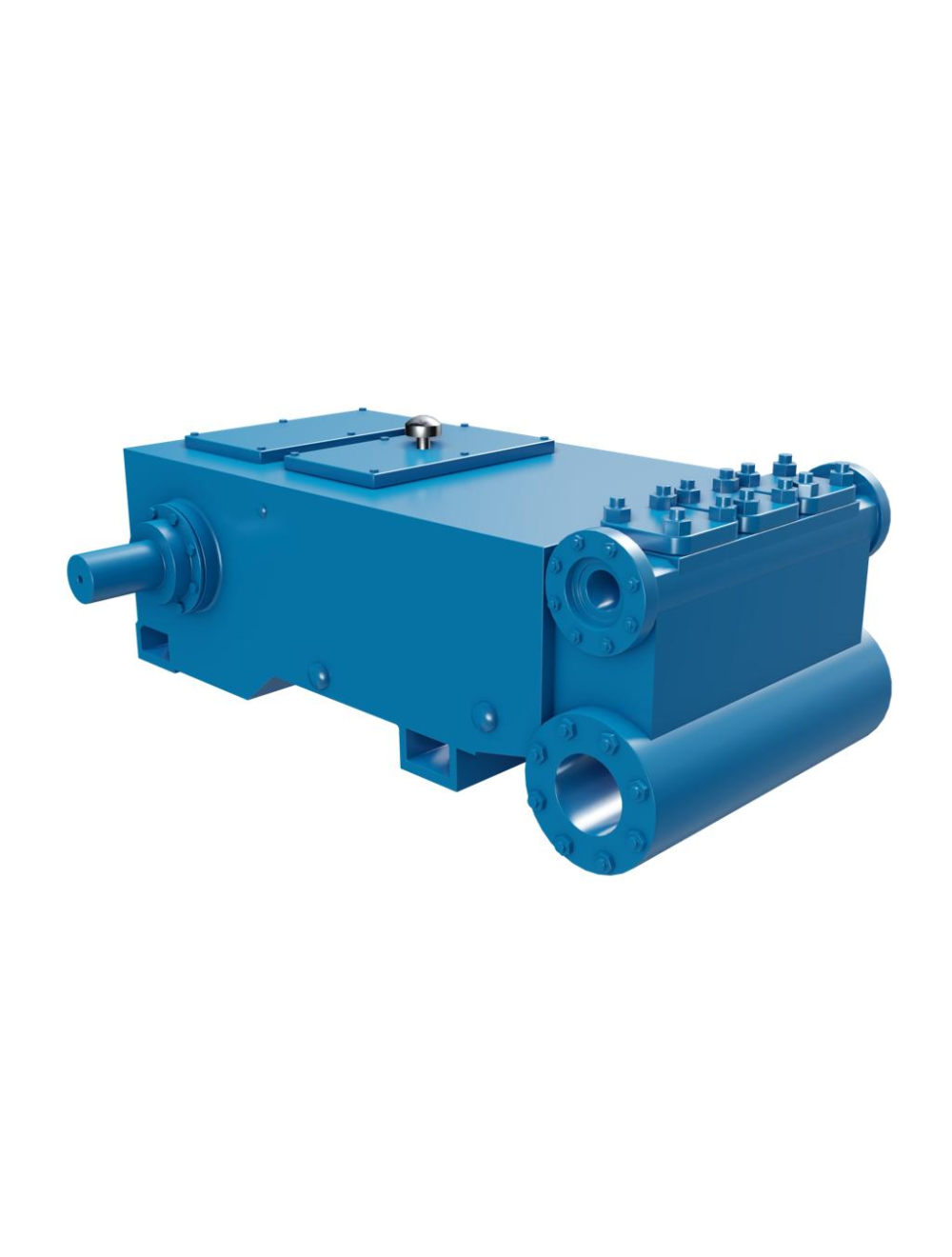

NOV 100T-4L (National J-100-L)

The NOV 100T-4L (NATIONAL J-60-L) is one of our continuous and intermittent-duty reciprocating pumps. The NOV 100T-4L (NATIONAL J-60-L) is offered in plunger sizes ranging from 2.250” to 3.375”. Maximum displacement pressure for the NOV 100T-4L (NATIONAL J-60-L) is between 737 psi (5083 kPA) and 1659 psi (11436 kPA) depending on plunger size.

The NOV 100T-4L (NATIONAL J-60-L) will pump up to 209.1 GPM or 7171 BPD at peak performance. Operating in low-to-high pressure applications the NOV 100T-4L (NATIONAL J-60-L) offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV 100T-4L (NATIONAL J-60-L) works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 450 RPM (Crankshaft speed) 100 (75)
Rated Plunger Load: pounds
(kg) 6595 (2991.4)
Maximum Discharge Pressure
psi (kPa) "L" Model: 1659 (11,436)
Oil Capacity
gallons (L) Crankcase: 5.5 (20.8)

Plunger Size Range

3.375"
3.250"
3.125"
2.875"
2.750"
2.625"
2.250"
2.375"
2.250"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Specification Datasheet

NOV 100T-4L (National J-100-L)

PUMP	English Units					200 RPM		250 RPM		300 RPM		350 RPM		400 RPM		450 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
100T-4L	3.375	8.9462	15.9338	0.4647	737	3187	92.9	3984	116.2	4781	139.4	5577	162.7	6374	185.9	7171	209.1
	3.250	8.2958	14.7754	0.4309	795	2956	86.2	3694	107.7	4433	129.3	5172	150.8	5911	172.4	6649	193.9
	3.000	7.0686	12.5897	0.3672	933	2518	73.4	3148	91.8	3777	110.2	4407	128.5	5036	146.9	5666	165.2
	2.750	5.9396	10.5788	0.3085	1110	2116	61.7	2645	77.1	3174	92.6	3703	108.0	4232	123.4	4761	138.8
	2.500	4.9087	8.7428	0.2550	1500	1749	51.0	2186	63.7	2623	76.5	3060	89.2	3498	102.0	3935	114.7
	2.250	3.9761	7.0817	0.2065	1659	1417	41.3	1771	51.6	2125	62.0	2479	72.3	2833	82.6	3187	92.9
100T-4M	2.125	3.5466	6.3167	0.1842	1860	1264	36.8	1580	46.1	1896	55.3	2211	64.5	2527	73.7	2843	82.9
	2.000	3.1416	5.5954	0.1632	2099	1120	32.6	1399	40.8	1679	49.0	1959	57.1	2239	65.3	2518	73.4
	1.875	2.7612	4.9178	0.1434	2388	984	28.7	1230	35.9	1476	43.0	1722	50.2	1968	57.4	2214	64.5
	1.750	2.4053	4.2840	0.1249	2742	857	25.0	1071	31.2	1286	37.5	1500	43.7	1714	50.0	1928	56.2
	1.625	2.0739	3.6938	0.1077	3180	739	21.5	924	26.9	1109	32.3	1293	37.7	1478	43.1	1663	48.5
100T-4H	1.750	2.4053	4.2840	0.1249	2742	857	25.0	1071	31.2	1286	37.5	1500	43.7	1714	50.0	1928	56.2
	1.625	2.0739	3.6938	0.1077	3180	739	21.5	924	26.9	1109	32.3	1293	37.7	1478	43.1	1663	48.5
	1.500	1.7671	3.1474	0.0918	3732	630	18.4	787	22.9	945	27.5	1102	32.1	1259	36.7	1417	41.3
	1.375	1.4849	2.6447	0.0771	4441	529	15.4	662	19.3	794	23.1	926	27.0	1058	30.9	1191	34.7
	1.250	1.2272	2.1857	0.0637	5000	438	12.7	547	15.9	656	19.1	765	22.3	875	25.5	984	28.7
	Brake Horsepower Required					45.0		56.0		67.00		78		89		100

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
NOV 100T-4L (National J-100-L) 2.250	Max GPM 92.90 Max BPD 3187.00 Max PSI 1659.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 2.250	92.90	3187.00	1659.00
NOV 100T-4L (National J-100-L) 2.500	Max GPM 114.70 Max BPD 3935.00 Max PSI 1500.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 2.500	114.70	3935.00	1500.00
NOV 100T-4L (National J-100-L) 2.750	Max GPM 138.80 Max BPD 4761.00 Max PSI 1110.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 2.750	138.80	4761.00	1110.00
NOV 100T-4L (National J-100-L) 3.000	Max GPM 165.20 Max BPD 5666.00 Max PSI 933.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 3.000	165.20	5666.00	933.00
NOV 100T-4L (National J-100-L) 3.250	Max GPM 193.90 Max BPD 6649.00 Max PSI 795.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 3.250	193.90	6649.00	795.00
NOV 100T-4L (National J-100-L) 3.375	Max GPM 209.10 Max BPD 7171.00 Max PSI 737.00 Out of stock 0 See more NOV 100T-4L (National J-100-L) 3.375	209.10	7171.00	737.00
