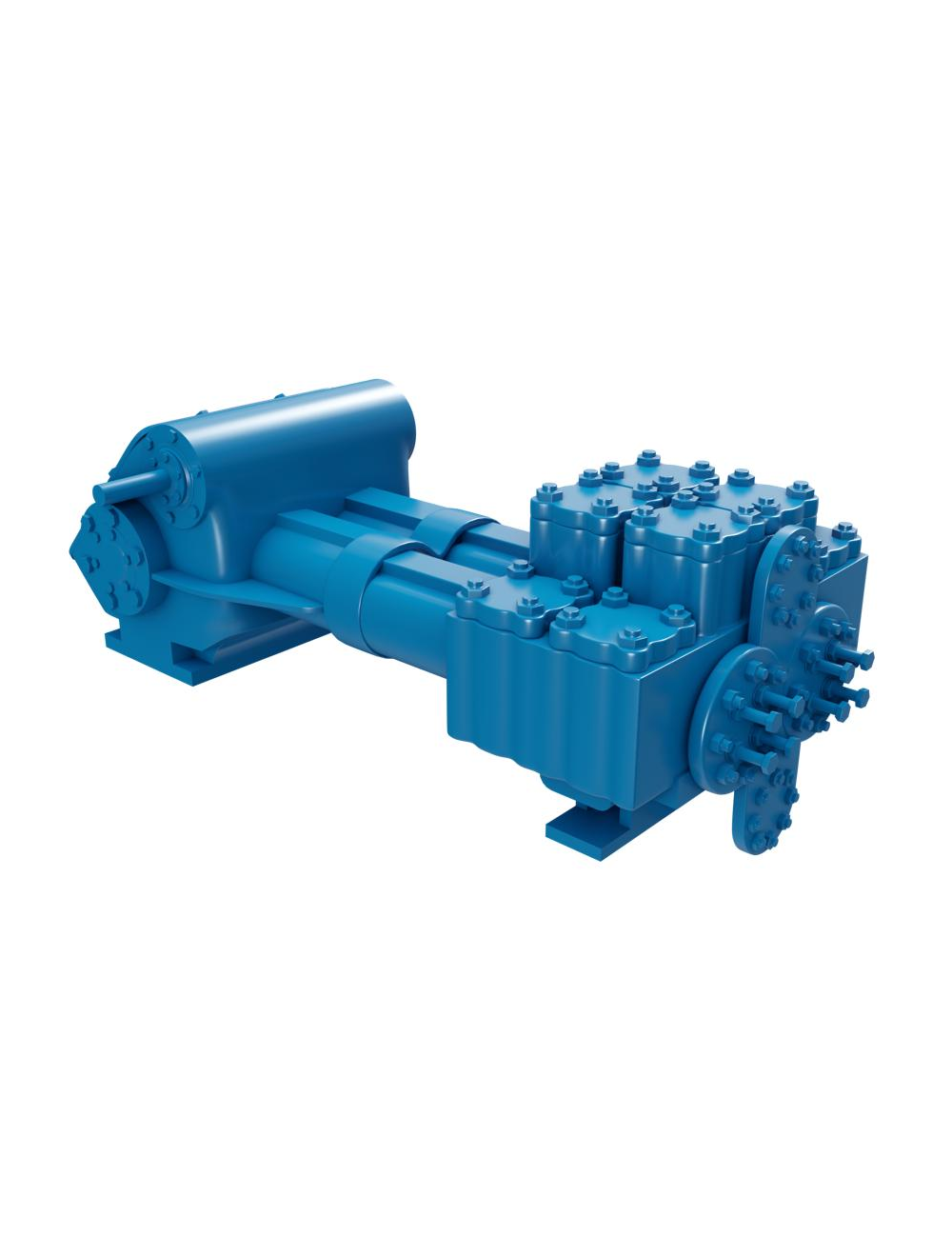

GASO 1849
The GASO 1849 is one of our continuous and intermittent-duty reciprocating pumps. The GASO 1849 is offered in piston sizes ranging from 2.500” to 4.500”. Maximum displacement pressure for the GASO 1849 is between 305 psi (2103 kPA) and 990 psi (6826 kPA) depending on piston size.
The GASO 1849 will pump up to 160.0 GPM or 5487 BPD at peak performance. Operating in low-to-high pressure applications the GASO 1849 offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The GASO 1849 works in a variety of fluids and offers a variety of fluid end metallurgies.
PERFORMANCE & SPECIFICATIONSClick To Expand
- Performance
- Rated BPH:(kW) at 100 RPM (Crankshaft speed) 33 (35)
- Rated Piston Load: pounds
(kg) 4850 (2200) - Maximum Discharge Pressure
psi (kPa) 990 (6826) - Oil Capacity
gallons (L)
5.0 (18.9)
- Piston Size Range
- 2.500"
- 3.000"
- 3.500"
- 4.000"
- 4.500"
- Recommended Applications
- Fresh Water
- Salt Water
- Crude Oil
- Natrual Gas
- Propane
- TEG / Glycol
- Butane
- Condensate
- Standard Fluid End Material
- Cast Steel
- Cast Ductile Iron
- Specification Datasheet
| PUMP | English Units | 20 RPM | 40 RPM | 60 RPM | 80 RPM | 100 RPM | |||||||||
| Piston Dia. In. | Piston Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 1847A, 1849 | 2.5 | 4.9087 | 15.768 | 0.4599 | 990 | 316 | 9.2 | 631 | 18.4 | 947 | 27.6 | 1262 | 36.8 | 1577 | 46 |
| 3 | 7.0686 | 23.448 | 0.6839 | 686 | 469 | 13.7 | 938 | 27.4 | 1407 | 41 | 1876 | 54.7 | 2345 | 68.4 | |
| 3.5 | 9.6211 | 32.352 | 0.9436 | 504 | 648 | 18.9 | 1295 | 37.7 | 1942 | 56.6 | 2589 | 75.5 | 3236 | 94.4 | |
| 4 | 12.5664 | 42.912 | 1.2516 | 386 | 859 | 25 | 1717 | 50.1 | 2575 | 75.1 | 3433 | 100.1 | 4292 | 125.2 | |
| 4.5 | 15.9043 | 54.864 | 1.6002 | 305 | 1098 | 32 | 2195 | 64 | 3292 | 96 | 4390 | 128 | 5487 | 160 | |
| Brake Horsepower Required | 7 | 13 | 20 | 27 | 33 | ||||||||||
Gallons Per Minute
Liters Per Second
Barrels Per Day
Pounds Per Square Inch
Minimum RPM
Maximum RPM
| PART NUMBER | Max GPM | Max BPD | Max PSI | REQUEST FOR QUOTE |
|---|
