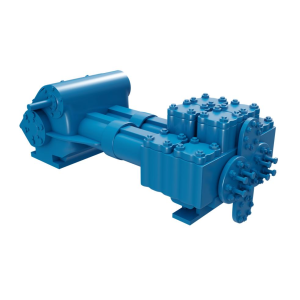

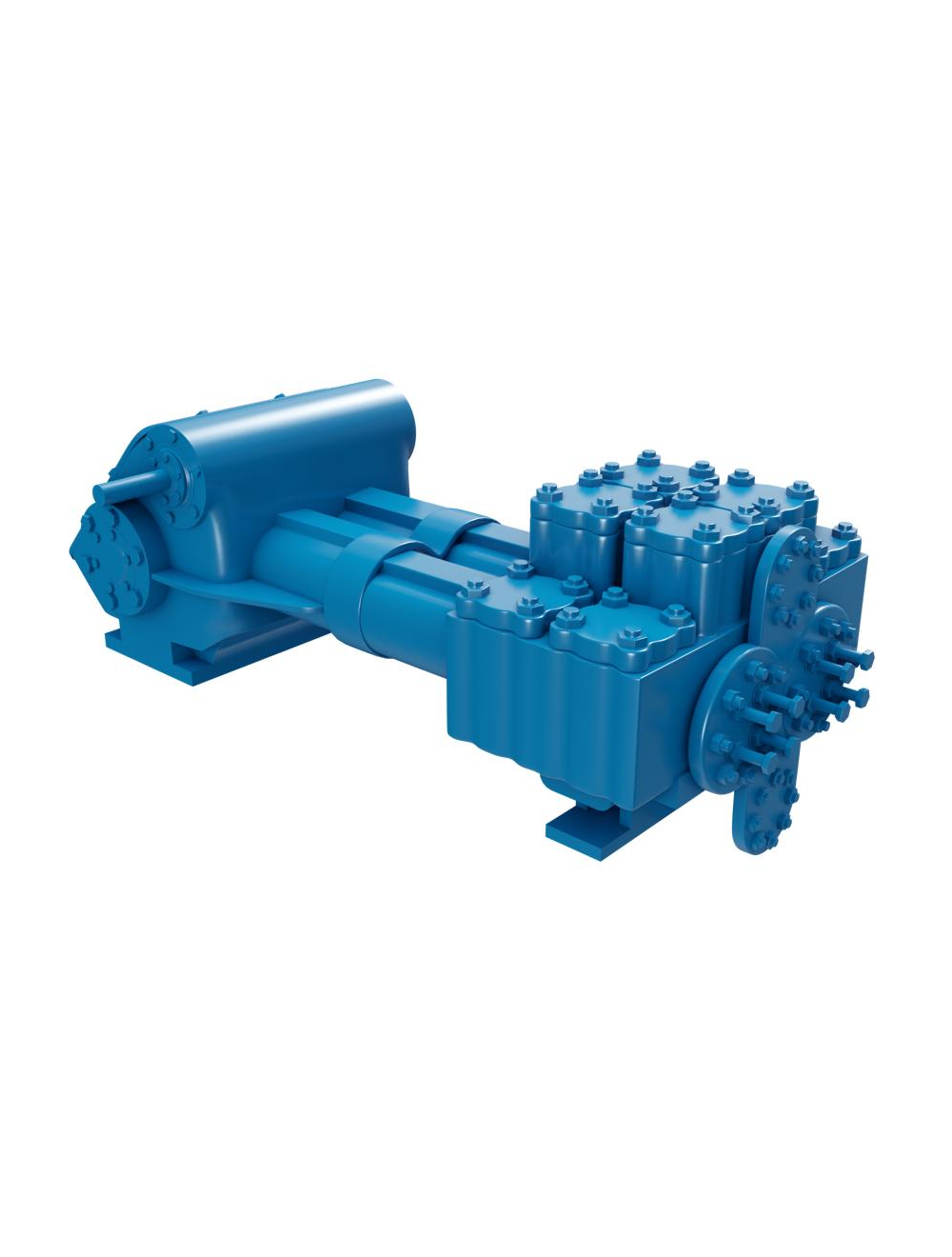

GASO 1847-A

The GASO 1847-A is one of our continuous and intermittent-duty reciprocating pumps. The GASO 1847-A is offered in piston sizes ranging from 2.500” to 4.500”. Maximum displacement pressure for the GASO 1847-A is between 305 psi (2103 kPA) and 990 psi (6826 kPA) depending on piston size.

The GASO 1847-A will pump up to 160.0 GPM or 5487 BPD at peak performance. The GASO 1847-A operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The GASO 1847-A works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 100 RPM (Crankshaft speed) 33 (35)
Rated Piston Load: pounds
(kg) 4850 (2200)
Maximum Discharge Pressure
psi (kPa) 990 (6826)
Oil Capacity
gallons (L)
5.0 (18.9)

Piston Size Range

2.500"
3.000"
3.500"
4.000"
4.500"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Steel
Cast Ductile Iron

Specification Datasheet

GASO 1847-A

PUMP	English Units					20 RPM		40 RPM		60 RPM		80 RPM		100 RPM
	Piston Dia. In.	Piston Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
1847A, 1849	2.5	4.9087	15.768	0.4599	990	316	9.2	631	18.4	947	27.6	1262	36.8	1577	46
	3	7.0686	23.448	0.6839	686	469	13.7	938	27.4	1407	41	1876	54.7	2345	68.4
	3.5	9.6211	32.352	0.9436	504	648	18.9	1295	37.7	1942	56.6	2589	75.5	3236	94.4
	4	12.5664	42.912	1.2516	386	859	25	1717	50.1	2575	75.1	3433	100.1	4292	125.2
	4.5	15.9043	54.864	1.6002	305	1098	32	2195	64	3292	96	4390	128	5487	160
	Brake Horsepower Required					7		13		20		27		33

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
GASO 1847-A 2.500	Max GPM 46.00 Max BPD 1577.00 Max PSI 990.00 Out of stock 0 See more GASO 1847-A 2.500	46.00	1577.00	990.00
GASO 1847-A 3.000	Max GPM 68.40 Max BPD 2345.00 Max PSI 686.00 Out of stock 0 See more GASO 1847-A 3.000	68.40	2345.00	686.00
GASO 1847-A 3.500	Max GPM 94.40 Max BPD 3236.00 Max PSI 504.00 Out of stock 0 See more GASO 1847-A 3.500	94.40	3236.00	504.00
GASO 1847-A 4.000	Max GPM 125.20 Max BPD 4292.00 Max PSI 386.00 Out of stock 0 See more GASO 1847-A 4.000	125.20	4292.00	386.00
GASO 1847-A 4.500	Max GPM 160.00 Max BPD 5485.00 Max PSI 305.00 Out of stock 0 See more GASO 1847-A 4.500	160.00	5485.00	305.00
