GASO 1654-C

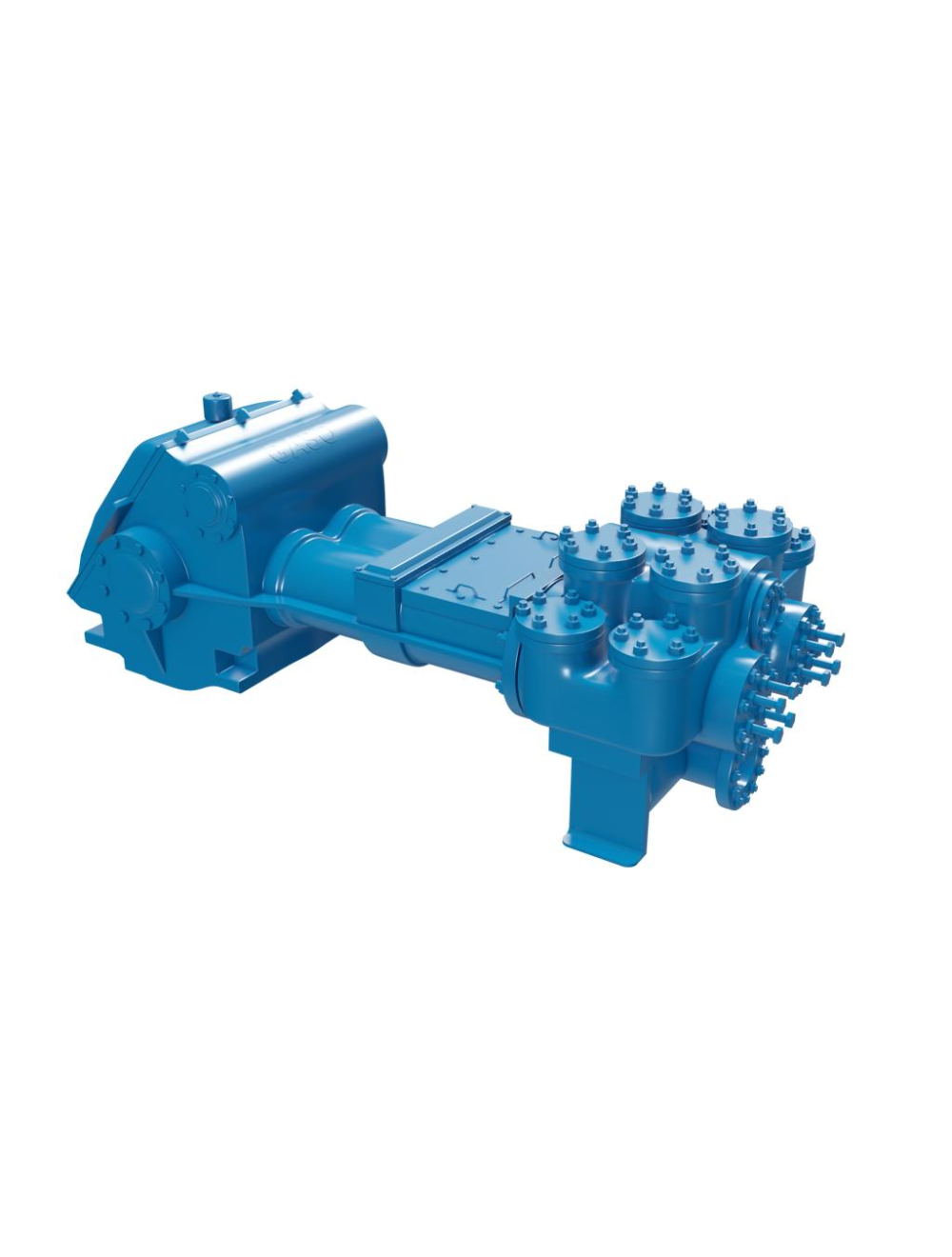

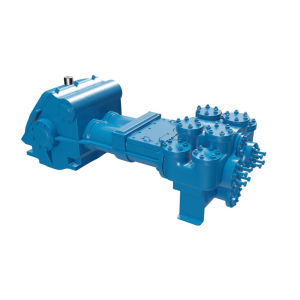

The GASO 1654-C is one of our continuous and intermittent-duty reciprocating pumps. The GASO 1654-C is offered in piston sizes ranging from 2.500” to 5.000”. Maximum displacement pressure for the GASO 1654-C is between 646 psi (4453 kPA) and 1800 psi (12411 kPA) depending on piston size.

The GASO 1654-C will pump up to 233.8 GPM, or 8016 BPD at peak performance. The NOV GASO 1654-C operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The GASO 1654-C works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 90 RPM (Crankshaft speed) 104 (77)
Rated Piston Load: pounds
(kg) 12680 (5752)
Maximum Discharge Pressure
psi (kPa) 1800 (12411)
Oil Capacity
gallons (L)
Crankcase: 12.0 (45.41)

Piston Size Range

2.500"
3.000"
3.500"
4.000"
4.500"
5.000"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Steel
Cast Ductile Iron

Specification Datasheet

GASO 1654-C

PUMP	English Units					30 RPM		45 RPM		60 RPM		75 RPM		90 RPM
	Piston Dia. In.	Piston Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
1654, 1654C
	2.5	4.9087	19.1177	0.5576	1800	574	16.7	861	25.1	1148	33.5	1434	41.8	1721	50.2
	3	7.0686	29.376	0.8568	1794	882	25.7	1322	38.6	1763	51.4	2204	64.3	2644	77.1
	3.5	9.6211	41.472	1.2096	1318	1245	36.3	1867	54.4	2489	72.6	3111	90.7	3733	108.9
	4	12.5664	55.488	1.6184	1009	1665	48.6	2497	72.8	3330	97.1	4162	121.4	4994	145.7
	4.5	15.9043	71.3417	2.0808	797	2141	62.4	3211	93.6	4281	124.8	5351	156.1	6421	187.3
	5	19.6349	89.0605	2.5976	646	2672	77.9	4008	116.9	5344	155.9	6680	194.8	8016	233.8
	Brake Horsepower Required					35		52		69		86		104

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
GASO 1654-C 2.500	Max GPM 50.20 Max BPD 1721.00 Max PSI 1800.00 Out of stock 0 See more GASO 1654-C 2.500	50.20	1721.00	1800.00
GASO 1654-C 3.000	Max GPM 77.10 Max BPD 2643.00 Max PSI 1794.00 Out of stock 0 See more GASO 1654-C 3.000	77.10	2643.00	1794.00
GASO 1654-C 3.500	Max GPM 108.90 Max BPD 3733.00 Max PSI 1318.00 Out of stock 0 See more GASO 1654-C 3.500	108.90	3733.00	1318.00
GASO 1654-C 4.000	Max GPM 145.70 Max BPD 4995.00 Max PSI 1009.00 Out of stock 0 See more GASO 1654-C 4.000	145.70	4995.00	1009.00
GASO 1654-C 4.500	Max GPM 187.30 Max BPD 6421.00 Max PSI 797.00 Out of stock 0 See more GASO 1654-C 4.500	187.30	6421.00	797.00
GASO 1654-C 5.000	Max GPM 233.80 Max BPD 8016.00 Max PSI 646.00 Out of stock 0 See more GASO 1654-C 5.000	233.80	8016.00	646.00
