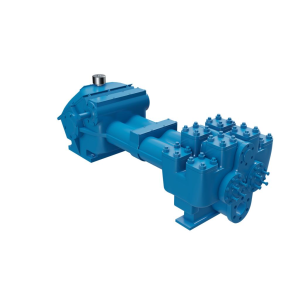

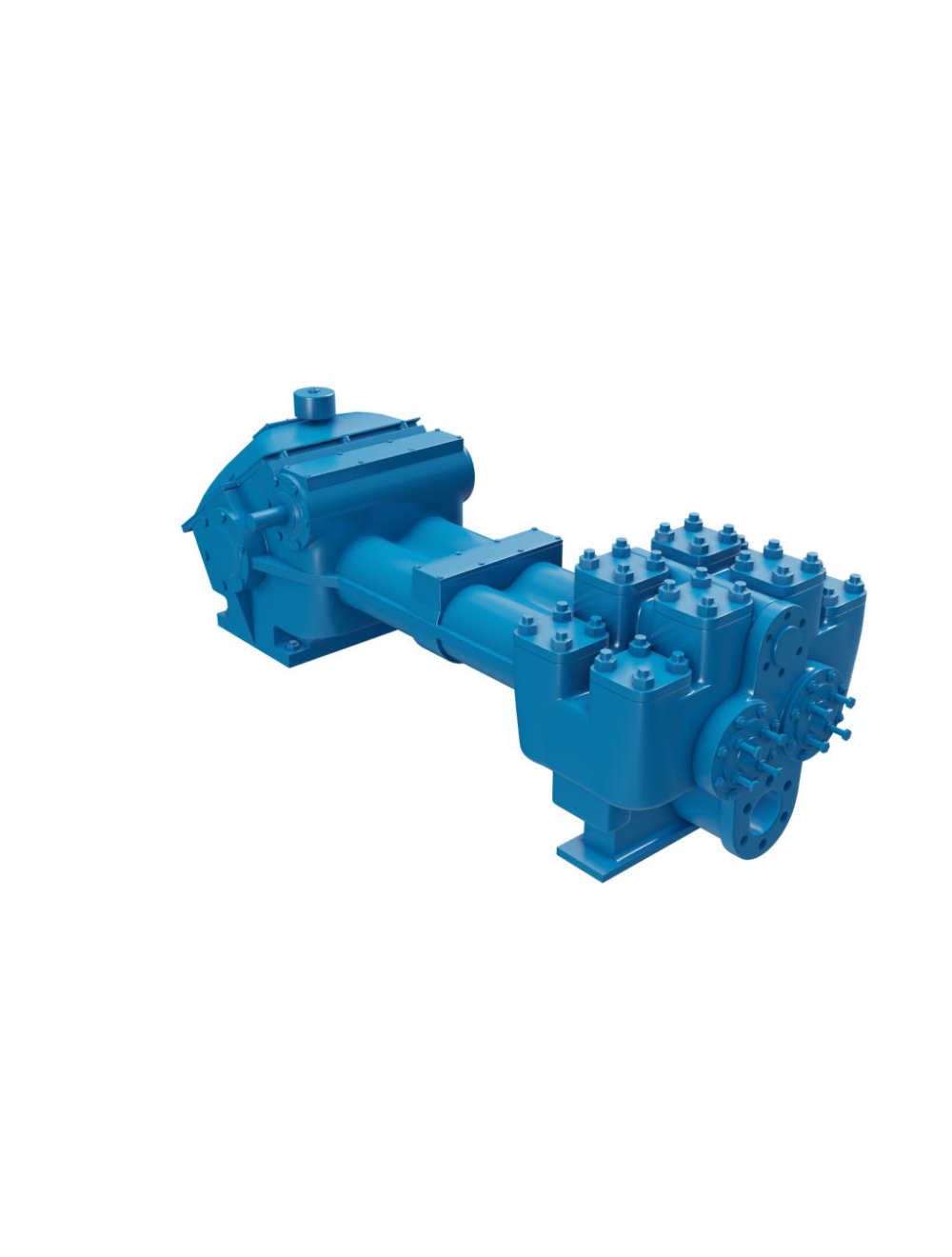

GASO 1550-C

The GASO 1550-C is one of our continuous and intermittent-duty reciprocating pumps. The GASO 1550-C is offered in piston sizes ranging from 2.500” to 5.000”. Maximum displacement pressure for the GASO 1550-C is between 381 psi (3625 kPA) and 1400 psi (9929 kPA) depending on piston size.

The GASO 1550-C will pump up to 281.7 GPM, or 9658 BPD at peak performance. The NOV GASO 1550-C operates in low-to-high pressure applications and offers 24/7 continuous duty run time, resulting in reduced downtime and savings for your overall operational costs. The NOV GASO 1550-C works in a variety of fluids and offers a variety of fluid end metallurgies.

Start Shopping

PERFORMANCE & SPECIFICATIONSClick To Expand

Performance

Rated BPH:(kW) at 85 RPM (Crankshaft speed) 74 (55)
Rated Piston Load: pounds
(kg) 7475 (3391)
Maximum Discharge Pressure
psi (kPa) 1440 (9929)
Oil Capacity
gallons (L)
Crankcase: 10.0 (37.85)

Piston Size Range

2.500"
3.000"
3.500"
4.000"
4.500"
5.000"

Recommended Applications

Fresh Water
Salt Water
Crude Oil
Natrual Gas
Propane
TEG / Glycol
Butane
Condensate

Standard Fluid End Material

Cast Carbon Steel
Cast Ductile Iron

Specification Datasheet

GASO 1550-C

PUMP	English Units					25 RPM		40 RPM		55 RPM		70 RPM		85 RPM
	Piston Dia. In.	Piston Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
1550, 1550-C	2.5	4.9087	26.1908	0.7639	1400	655	19.1	1048	30.6	1441	42	1834	53.5	2227	64.9
	3	7.0686	39.0137	1.1379	1057	976	28.4	1561	45.5	2146	62.6	2731	79.7	3317	96.7
	3.5	9.6211	54.168	1.5799	777	1355	39.5	2167	63.2	2980	86.9	3792	110.6	4605	134.3
	4	12.5664	71.6537	2.0899	595	1792	52.2	2867	83.6	3941	114.9	5016	146.3	6091	177.6
	4.5	15.9043	91.4708	2.6679	470	2287	66.7	3659	106.7	5031	146.7	6403	186.8	7776	226.8
	5	19.6349	113.6194	3.3139	381	2841	82.8	4545	132.6	6250	182.3	7954	232	9658	281.7
	Brake Horsepower Required					22		35		48		61		74

Sort By

Grouped product items
PART NUMBER	Max GPM	Max BPD	Max PSI	REQUEST FOR QUOTE
GASO 1550-C 2.500	Max GPM 64.90 Max BPD 2225.00 Max PSI 1400.00 Out of stock 0 See more GASO 1550-C 2.500	64.90	2225.00	1400.00
GASO 1550-C 3.000	Max GPM 96.70 Max BPD 3315.00 Max PSI 1057.00 Out of stock 0 See more GASO 1550-C 3.000	96.70	3315.00	1057.00
GASO 1550-C 3.500	Max GPM 134.30 Max BPD 4604.00 Max PSI 777.00 Out of stock 0 See more GASO 1550-C 3.500	134.30	4604.00	777.00
GASO 1550-C 4.000	Max GPM 177.60 Max BPD 6089.00 Max PSI 595.00 Out of stock 0 See more GASO 1550-C 4.000	177.60	6089.00	595.00
GASO 1550-C 4.500	Max GPM 226.80 Max BPD 7776.00 Max PSI 470.00 Out of stock 0 See more GASO 1550-C 4.500	226.80	7776.00	470.00
GASO 1550-C 5.000	Max GPM 281.70 Max BPD 9658.00 Max PSI 381.00 Out of stock 0 See more GASO 1550-C 5.000	281.70	9658.00	381.00
